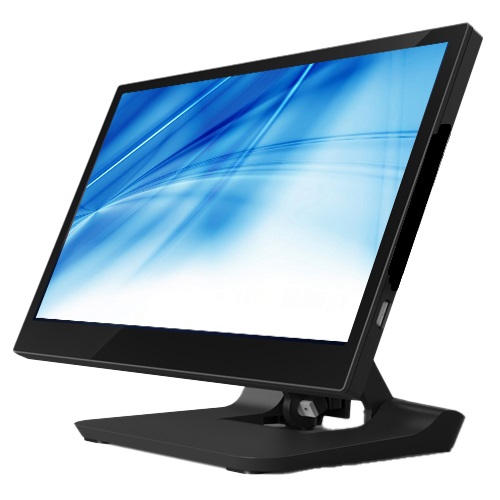

Element 455W Touch Terminal, J6412 CPU, 8GB RAM/128GB Storage, 15.6" PCAP Display, Speaker, Duel Hinge Stand, Black, Windows 10 IOT

Black, Single, WLAN, Serial, USB, No, Windows, No, Intel Celeron, 8 GB, No, 15.6 inch, SSD, Touch POS, Capacitative, 3 Years, Element
$1,699.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTFLEL455051
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Element 455W POS Terminal delivers outstanding performance, flexibility, and design in a sleek 15.6” form factor. Featuring a Full HD True-Flat PCAP multi-touch display, the 455W is powered by the Intel Elkhart Lake J6412 processor, coupled with 8GB DDR4 RAM and a 128GB M.2 SSD. It runs on Windows 10 IoT Enterprise LTSC, making it an ideal solution for retail and hospitality environments.

Its dual hinge stand, VESA mounting support, and extensive I/O connectivity allow the Element 455W to seamlessly fit into desktop or wall-mounted setups. Optional peripheral modules like MSR, iButton, fingerprint reader, and second displays make it a versatile all-in-one system for modern POS needs.


Product Features

  • 15.6” Full HD (1920 x 1080) True-Flat PCAP multi-touch display
  • Intel Celeron J6412 CPU (up to 2.6GHz)
  • 8GB DDR4 RAM, expandable to 32GB
  • 128GB M.2 SSD for fast and reliable performance
  • Windows 10 IoT Enterprise LTSC 2021 pre-installed
  • Dual hinge stand and VESA 100 x 100 mounting support
  • Modular design for MSR, iButton, fingerprint reader, and second display
  • 2 x DB9 serial ports, 4 x USB Type-A, 2 x USB Type-C
  • Internal speaker, RJ11 cash drawer port, and RJ45 Gigabit LAN
  • 65W / 19V power adapter included
  • Sleek die-cast chassis in black with optional customer display and peripherals.


Product Specifications

Specification

Details

Model

Element 455W

Part Number

TTFLEL455051

Processor

Intel® Elkhart Lake Celeron J6412, 2.0GHz (burst up to 2.6GHz)

Memory

8GB DDR4 (Max 32GB)

Storage

128GB SSD (M.2), upgradeable

Display

15.6" TFT LCD, 1920 x 1080 resolution, 220 nits brightness

Touchscreen

True-Flat PCAP multi-touch

Operating System

Windows 10 IoT Enterprise LTSC 2021 (64-bit)

USB Ports

2 x USB 3.0, 2 x USB 2.0, 1 x USB-C (2.0), 1 x USB-C (3.0)

Serial Ports

2 x DB9 (COM1/COM2 with 0V/5V/12V selectable)

Video Output

1 x FeDP (miniDP proprietary for 2nd display)

LAN Port

1 x RJ45 Gigabit Ethernet

Audio

1 x 3W internal speaker

Cash Drawer Port

1 x RJ11 (12V/24V)

Expansion Slot

1 x miniPCI-E

Power Supply

65W / 19V DC power adapter (4-pin latch)

Mounting Options

Desktop dual hinge / VESA 100 x 100

Colour

Black

Chassis

Aluminium Die-Cast + Plastic

Operating Temperature

0°C ~ 35°C

Storage Temperature

-20°C ~ 60°C

Humidity

20% – 85% RH, non-condensing

Dimensions (WxDxH)

369mm x 209mm x 264mm

Weight

4.3 kg

Warranty

3 Years


Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Serial
  • USB
  • WLAN
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 8 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Element

Attachments

Brochure (Element_455W_pdf.pdf, 366 Kb) [Download]
