Description

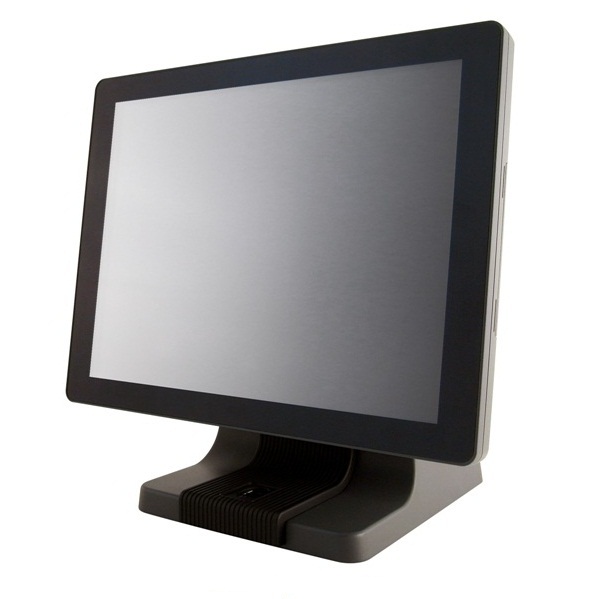

Engineered for high-performance retail and hospitality environments, the Element 485 POS Terminal offers the perfect combination of power, durability, and sleek aesthetics. Featuring a 15" True Flat PCAP touchscreen, Intel Elkhart Lake J6412 processor, 8GB DDR4 RAM, and 128GB SSD, this robust terminal handles demanding POS applications with ease.
Its fanless design and aluminium die-cast chassis ensure silent, low-maintenance operation in harsh environments. With a borderless, modern look and versatile I/O connectivity—including USB Type A & C, serial, LAN, and cash drawer ports—the Element 485 adapts seamlessly to both traditional POS setups and panel PC configurations.
Preloaded with Windows 10 IoT Enterprise, this all-in-one POS solution is perfect for retail stores, quick-service restaurants, and high-volume venues across Australia.
Product Features
- 15" True Flat PCAP multi-touch display (1024 x 768 resolution, 400nits brightness)
- Intel Elkhart Lake J6412 Quad-Core processor
- 8GB DDR4 RAM for smooth multitasking
- 128GB M.2 SSD for fast and reliable storage
- Fanless, low-power design for quiet, dust-free operation
- Rugged aluminium die-cast housing for maximum durability
- Pre-installed Windows 10 IoT Enterprise LTSC 2021
- Extensive I/O options: 2 x Serial (DB9), 5 x USB (Type A & C), LAN, RJ11 Cash Drawer
- VESA mount compatible (100 x 100)
- Optional peripherals: MSR, fingerprint reader, iButton, second display
Product Speicifcations
Specification | Details |
Model | Element 485 |
Processor | Intel Celeron J6412 Quad-Core (Elkhart Lake) |
RAM | 8GB DDR4 |
Storage | 128GB SSD (M.2) |
Display | 15" TFT LCD (400nits) |
Touch Technology | True Flat Projected Capacitive (PCAP), multi-touch |
Resolution | 1024 x 768 |
Graphics | Intel HD Graphics DX11.1 |
I/O Ports | 2 x DB9, 2 x USB 3.0, 3 x USB 2.0 (incl. 1 x Type-C), 1 x LAN, 1 x RJ11 Cash Drawer, 1 x Mini FeDP, 1 x DC Jack |
Audio | Internal 3W speaker (optional) |
Expansion | 1 x M.2 slot |
OS Compatibility | Windows 10 IoT Enterprise LTSC 2021, Linux |
Housing | Full aluminium die-cast enclosure |
Environmental | Operating: 0°C ~ 35°C; Storage: -20°C ~ 60°C |
Humidity | 20% ~ 85% RH, non-condensing |
Colour | Black |
Dimensions (WxDxH) | 360mm x 203mm x 277mm |
Weight | 4.3 kg |
VESA Mount | 100 x 100 |
Optional Peripherals | MSR, Fingerprint, iButton, Customer Display, 11.6” 2nd Display |
Power Supply | 65W / 19V adapter (120W optional) |
