ELEMENT CA850 I3 8/128 15.6P STD GREY/SILVER W10

Grey, Silver, Single, Serial, USB, Ethernet, No, Windows, No, Core i3, 8 GB, No, 15.6 inch, 128GB, SSD, Touch POS, Capacitative, 3 Years
$2,129.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTELCA850001
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

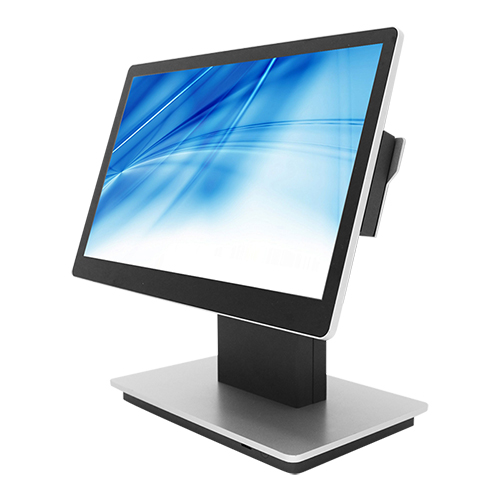

Deliver a sleek and modern customer experience with the Element CA850 POS Terminal, purpose-built for Australia’s retail and hospitality environments. Featuring a stylish ultra-slim body, robust metallic design, and a vivid 15.6” Full HD narrow-border touchscreen, the CA850 is the perfect balance of performance, versatility, and aesthetics.

Powered by an Intel® Core i3 processor, 8GB DDR4 memory, and a fast 128GB M.2 SSD, the CA850 ensures rapid transaction processing and reliable performance under pressure. Its true-flat Projective Capacitive (PCAP) touchscreen supports multi-touch gestures and seamless user interaction.

Designed with flexibility in mind, it includes multiple I/O ports (USB, Serial, LAN, RJ11 for cash drawers) and optional peripherals such as MSR, NFC, fingerprint reader, and second displays—making it ideal for counter sales, self-service, or back-office management.


Product Features

  • 15.6” Full HD (1920 x 1080) narrow-bezel PCAP touchscreen
  • Intel® Core i3 processor for strong performance
  • 8GB DDR4 RAM and 128GB M.2 SSD (expandable to 512GB SSD, 16GB RAM)
  • Ultra-slim fanless design with durable metallic housing
  • Windows 10 IoT Enterprise pre-installed
  • Multiple I/O ports: USB 2.0/3.0, Serial, LAN, RJ11
  • Optional add-ons: MSR, NFC, 2D scanner, fingerprint/iButton reader, customer displays
  • VESA mount compatible for flexible installations
  • 3-Year Warranty included


Product Specifications

Specification

Details

Model

TTELCA850001

Processor

Intel® Core i3 (Elkhart Lake J6412)

Memory

8GB DDR4 (Max 16GB)

Storage

128GB SSD (M.2 SATA) (Max 512GB)

Display

15.6” LED, 1920 x 1080 Full HD, PCAP Touch

Touchscreen

True-flat PCAP multi-touch

Audio

Optional 3W internal speaker

Front I/O Ports

1 x USB 2.0

Rear I/O Ports

2 x USB 3.0, 2 x USB 2.0, 2 x DB9 (Powered RS232), 1 x LAN (RJ45), 1 x USB Type-C (data only), 1 x Cash Drawer (RJ11), 1 x DC Jack

Wireless

Wi-Fi + Bluetooth (via optional USB dongle)

Power Supply

65W / 19V Power Adapter

Mounting

VESA compatible

Dimensions (WxDxH)

369mm x 200mm x 375mm

Operating Temp

0°C ~ 35°C

Storage Temp

-20°C ~ 60°C

Humidity

20% ~ 85% RH (non-condensing)

OS

Windows 10 IoT Enterprise, Linux

Warranty

36 Months


Features

Colour:
  • Grey
  • Silver
Display:
  • Single
Interface:
  • Ethernet
  • Serial
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Core i3
Ram:
  • 8 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years

Attachments

Brochure (2020_Element_CA850_InfoPack.pdf, 3,678 Kb) [Download]
