Element EV770 J4125 8GB RAM/128GB Storage 15.6" Display - Black and Windows 10 IOT Installed

Black, Single, WLAN, USB, Serial, HDMI, Windows, No, Intel Celeron, 8 GB, No, 15.6 inch, SSD, NVME, All-in-one POS, Capacitative, 3 Years, Element
$1,929.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTETEV770002
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

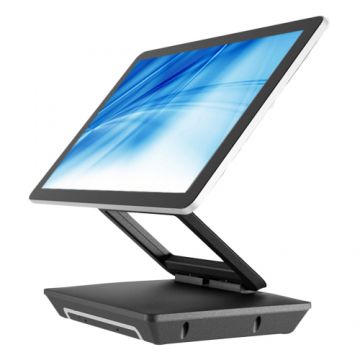

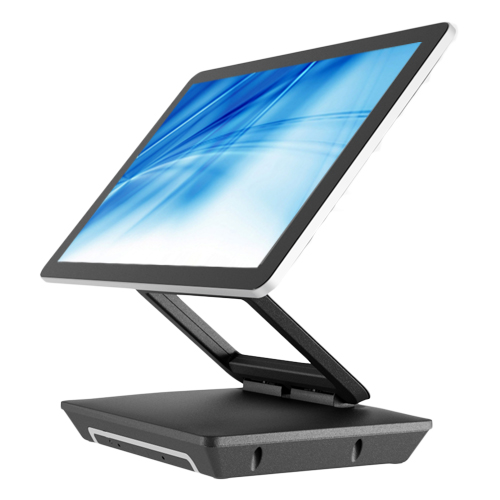

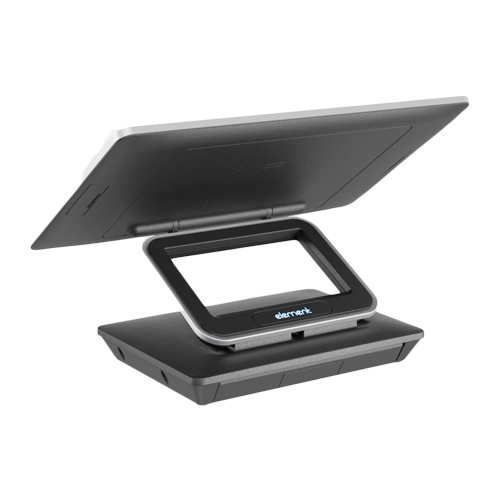

The Element EV770 All-in-One POS Terminal brings together cutting-edge style and reliable performance in a slim, modular form factor. Featuring a powerful Intel Celeron J4125 Quad-Core processor, 8GB DDR4 memory, and a high-speed 128GB NVMe SSD, the EV770 is engineered to handle diverse retail and hospitality demands across Australia.

Its 15.6” True-Flat PCAP touchscreen offers 10-point multitouch capability with a sleek, borderless design, delivering a premium user experience. Whether it’s front-of-house or back-end operations, the EV770 adapts seamlessly with multiple connectivity options including USB 3.0, USB-C, HDMI, LAN, and RJ12 cash drawer support.

Pre-loaded with Windows 10 IoT Enterprise LTSC 2021, this terminal is designed to deliver long-term stability, secure updates, and compatibility with a wide range of POS software platforms. The metallic chassis, VESA mount support, and modular accessories (like customer displays and MSR readers) make the Element EV770 a smart and stylish solution for any modern business.


  • Product Features
  • 15.6” True-Flat Projected Capacitive Touchscreen (1366 x 768 resolution)
  • Intel Celeron J4125 Quad-Core processor (up to 2.70GHz)
  • 8GB DDR4 RAM for smooth multitasking
  • 128GB M.2 NVMe SSD for fast, reliable storage
  • Fanless design ensures silent, low-maintenance operation
  • 6 x USB 3.0, 2 x USB-C, HDMI, LAN, and RJ12 cash drawer interface

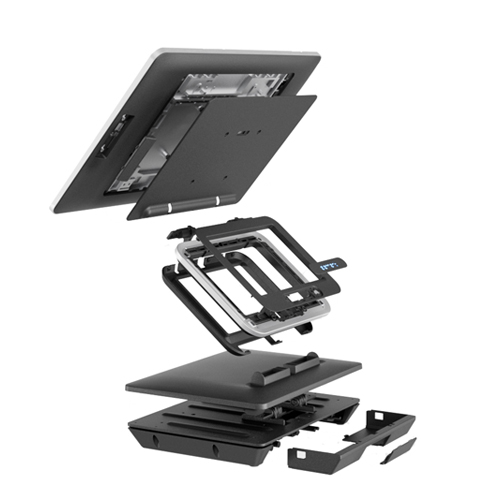

  • Modular design with support for optional MSR, 2nd display & VFD customer display
  • Windows 10 IoT Enterprise LTSC 2021 pre-installed
  • Rugged metallic body with VESA mount support
  • Designed for retail, hospitality, and service environments across Australia.

Product Specifications

Specification

Details

Model

Element EV770

Processor

Intel Celeron J4125 (4M Cache, up to 2.70GHz)

RAM

8GB DDR4 (SO-DIMM)

Storage

128GB M.2 2280 NVMe SSD (PCIe)

Display

15.6” LCD, 1366 x 768 resolution (True-Flat PCAP Touch)

Touch Technology

10-point Projected Capacitive (PCAP)

Graphics

Intel UHD Graphics 600

I/O Ports

6 x USB 3.0, 2 x USB-C, 2 x COM (RJ50), 1 x HDMI, 1 x LAN, 1 x RJ12 (Cash Drawer)

Audio

Internal 2W Speaker

Expansion

M.2 2230 (Key-E) for Wi-Fi/BT

Operating System

Windows 10 IoT Enterprise LTSC 2021

Power Adapter

19V / 65W AC Adapter

Mounting Options

VESA 75 x 75

Operating Temperature

0°C ~ 40°C

Storage Temperature

-20°C ~ 60°C

Humidity

20% ~ 85% RH (non-condensing)

Dimensions (WxDxH)

379mm x 190mm x 317mm

Weight

6 kg

Optional Accessories

MSR, 10.1” 2nd Display, VFD Customer Display

Certifications

CE, FCC, RCM, VCCI, LVD


Features

Colour:
  • Black
Display:
  • Single
Interface:
  • HDMI
  • Serial
  • USB
  • WLAN
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 8 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 128GB
Storage Type:
  • NVME
  • SSD
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Element

Attachments

Brochure (Element_EV770W_Pdf.pdf, 2,923 Kb) [Download]
