Description

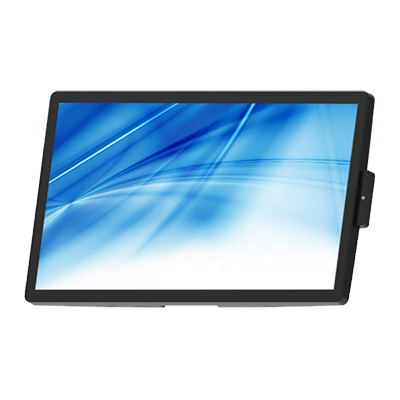

The Element K22A is a high-performance 21.5" Android-based panel PC crafted for businesses needing reliable self-service, digital signage, or kitchen video systems (KVS). Powered by the MediaTek MT8390 processor with 8GB RAM and 64GB storage, this slim, fanless, and noise-free system is designed for continuous operation in demanding environments.
With a bezel-free, full-flat PCAP touchscreen and 7H hardened glass, it’s built to last in high-traffic commercial settings. Whether mounted on a wall or placed with an optional stand, the K22A offers flexibility, fast performance, and elegant aesthetics for retail, hospitality, and industrial applications.
Product Features
- 21.5” FHD (1920x1080) TFT LCD with slim bezel design
- Projected Capacitive 10-point multitouch screen
- Powerful MediaTek MT8390 processor (Dual Cortex-A78 + Hexa Cortex-A55)
- 8GB DDR4 RAM and 64GB eMMC for smooth multitasking
- Android 13 OS with GMS (Google Mobile Services) certification
- Fanless, silent design with durable 7H hardness glass
- Wi-Fi 6 and Bluetooth 5.2 for high-speed wireless communication
- PoE (Power over Ethernet) and 12V 90W external power options
- VESA mountable (100x100mm) for flexible installation
- Ideal for KVS, self-service kiosks, check-in terminals & digital signage.
Product Specifications
Specification | Details |
Model | Element K22A |
Product ID | TTETK22A003 |
Operating System | Android 13 with GMS (EDLA Certified) |
Processor | MediaTek MT8390 (Dual Cortex-A78, Hexa A55) |
GPU | Mali-G57 MC3 |
Memory (RAM) | 8GB DDR4 / LPDDR4 |
Storage | 64GB eMMC |
Display | 21.5” FHD TFT LCD, 1920 x 1080 |
Touch Technology | 10-point Projected Capacitive Touch |
Brightness | 225 nits (Touch) / 250 nits (No Touch) |
Contrast Ratio | 1000:01:00 |
Viewing Angle | 178° Horizontal / 178° Vertical |
Glass | 7H Hardness Durable Glass |
Wireless Connectivity | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |
Audio | 2 x 2W Built-in Speakers |
USB Ports | 3 x USB-C, 2 x USB 3.0 Type-A, 3 x USB 2.0 |
LAN Port | 10/100/1000 Gigabit Ethernet |
SD Slot | 1 x Micro SD (SDHC 2.0 supported) |
Power Supply | 12V 90W Adapter or PoE |
VESA Mount | 100 x 100 mm |
Material | Plastic, SECC Metal, Glass |
Colour | Dark Grey / Black |
Dimensions (Panel Only) | 511mm x 322mm x 38mm |
Weight | Net: 4.4 kg / Gross: 5.4 kg |
Certifications | CE, FCC, UL, RoHS, LVD |
Operating Temp | 0°C to 40°C (20–80% RH, non-condensing) |
Warranty | 3 Years |
