ELEMENT K22W I3 8/128 21.5/P N/STD BLK W10

Black, Single, USB, Serial, Ethernet, No, Windows, No, Intel Celeron, 8 GB, No, 21.5 inch, SSD, Touch POS, Capacitative, 3 Years
$2,279.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTETK22W006
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

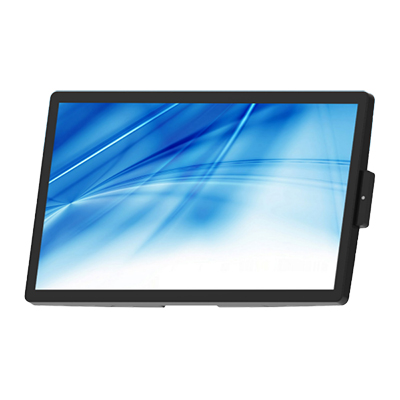

The Element K22W is a powerful, slim, and modern 21.5” Full Flat Touchscreen Panel PC, purpose-built to deliver exceptional performance across a variety of commercial and industrial settings. With an elegant bezel-free design, 7H hardened glass, and 10-point PCAP touch, this unit combines durability with functionality, ideal for use in self-service kiosks, kitchen video systems (KVS), digital signage, or self-check-in/out terminals.

Powered by the Intel Celeron J6412 quad-core processor, 8GB of DDR4 memory, and a fast 128GB M.2 SSD, the K22W offers responsive multitasking performance. Its FHD 1920 x 1080 resolution and wide 178° viewing angles ensure vibrant, crystal-clear visuals in any environment. With Windows 10 IoT Enterprise LTSC 2021 pre-installed, a fanless, noise-free build, and VESA mount compatibility, the K22W is built to enhance workflow efficiency and uptime.

Whether deployed in retail, hospitality, healthcare, or information kiosks, the K22W delivers a professional-grade interactive experience.


Product Features

  • 21.5” Full HD (1920x1080) PCAP touchscreen with 10-point multi-touch
  • Intel Celeron J6412 processor (2.0GHz, Quad-Core)
  • 8GB DDR4 memory, expandable up to 32GB
  • 128GB M.2 SSD storage for fast and reliable data access
  • Fanless, silent operation ideal for high-traffic or sensitive environments
  • Slim 16.16mm bezel-free design with 7H hardened durable glass
  • Multiple I/O ports: USB-A, USB-C, RS232 Serial, RJ45 LAN
  • Optional Wi-Fi & Bluetooth 4.2 support
  • VESA mountable (100 x 100mm) for flexible installation
  • 3-year warranty


Product Specifications

Specification

Details

Model

Element K22W

Processor

Intel Celeron J6412, 2.0GHz, 4-Core

Memory

8GB DDR4 So-DIMM (Max 32GB)

Storage

128GB M.2 SSD

Display Size

21.5” TFT LCD

Resolution

Full HD 1920 x 1080

Touchscreen

Projected Capacitive (10-point multi-touch)

Brightness

225 nits (PCAP)

Viewing Angles

178° Horizontal / 178° Vertical

Glass Hardness

7H durable glass

I/O Ports

1 x RS232, 2 x USB 3.0 Type A, 2 x USB-C 3.0, 1 x USB-C (Alt Mode & PD2.0), 1 x RJ45

Audio

2 x 2W internal speakers

Wi-Fi & Bluetooth

Optional: 802.11 a/b/g/n/ac & BT 4.2

Power Supply

12V / 90W external adaptor

Mounting Option

VESA 100 x 100mm compatible

OS

Windows 10 IoT Enterprise LTSC 2021 64-bit (pre-installed)

Dimensions (W x H x D)

510.9mm x 308mm x 45.9mm (monitor only)

Weight

Net: 4.2 kg / Gross: 6.6 kg

Operating Temp.

0°C ~ 40°C, 20% ~ 80% RH (non-condensing)

Certifications

CE, FCC, LVD, UL, CCC, BSMI, RoHS

Warranty

3 Years


Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Ethernet
  • Serial
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 8 GB
Scanner Capability:
  • No
Screen Size Font:
  • 21.5 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years

Attachments

Brochure (Element_K22W_Brochure_2024.pdf, 2,189 Kb) [Download]
