ELEMENT K22W J6412 16/128 21.5P N/STD BLK W10

Black, Single, WLAN, Serial, USB, No, Windows, No, Intel Celeron, 16 GB, No, 21.5 inch, SSD, KDS, Touch POS, Capacitative, 3 Years, Element
$1,769.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTETK22W015-16GB
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

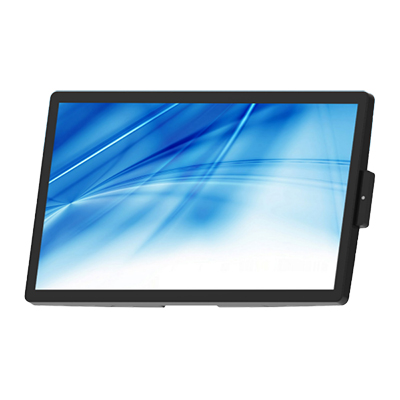

The Element K22W is a powerful and elegant 21.5” Windows-based touch terminal, designed for a range of high-demand commercial applications such as kitchen video systems (KVS), self-service kiosks, self-check-in/out terminals, and digital signage.

Featuring a sleek 7H hardened glass surface, slim 16.16mm bezel, and fanless Intel Celeron J6412 processor, this panel PC delivers exceptional reliability, durability, and style. Its 1920 x 1080 full HD resolution and projected capacitive 10-point multitouch screen ensure seamless interactivity and visual clarity in any setting.

Preloaded with Windows 10 IoT Enterprise LTSC, and equipped with 16GB DDR4 RAM and 128GB M.2 SSD, the Element K22W is ideal for retail, hospitality, and industrial applications where performance and space efficiency are key.


Product Features

  • 21.5” Full HD (1920 x 1080) TFT LCD with 7H hardness durable glass
  • Fanless Intel Celeron J6412 processor, up to 2.6GHz burst speed
  • 16GB DDR4 RAM, expandable up to 32GB
  • 128GB M.2 SSD for fast, reliable storage
  • True-flat PCAP multitouch screen with 10-point capability
  • Ultra-slim 16.16mm bezel and only 37.9mm thick chassis
  • Ideal for Self-Service, Digital Signage, KVS, and Information Terminals
  • VESA mount support (100 x 100 mm) and optional desktop stand
  • USB-C with Display ALT Mode and PD 2.0 support
  • 2 x USB 3.0 Type A, 2 x USB-C, 1 x RS232, 1 x RJ45 LAN
  • Dual 2W built-in speakers
  • Pre-installed Windows 10 IoT Enterprise LTSC 2021


Product Specifications

Specification

Details

Model

Element K22W-J6412

Processor

Intel Celeron J6412, 2.0GHz (up to 2.6GHz Burst), 1.5MB Cache

Memory

16GB DDR4 So-DIMM 3200MHz (Max 32GB)

Storage

128GB M.2 SSD

Display

21.5" TFT LCD, Full HD 1920 x 1080, 225 nits, 1000:1 contrast ratio

Touch Technology

Projected Capacitive (PCAP), 10-Point Multitouch

Touch Surface

True Flat 7H Hardness Durable Glass

Audio

2 x 2W Built-in Speakers

I/O Ports

2 x USB 3.0 Type A, 2 x USB-C 3.0, 1 x USB-C (Display ALT Mode + PD2.0), 1 x RS232, 1 x RJ45 Giga LAN

Power Supply

12V / 90W External Power Adapter

Mounting

VESA 100 x 100 mm

Operating System

Windows 10 IoT Enterprise LTSC 2021 (64-bit)

Operating Temp

0°C ~ 40°C, 20% ~ 80% RH

Storage Temp

-20°C ~ 60°C, 10% ~ 90% RH

Material

Plastic, Glass, SECC Metal

Dimensions (Panel only)

510.9 x 308 x 45.9 mm

Dimensions (With Stand)

510.96mm x 322.28mm x 172.98mm

Net Weight

4.2 kg

Certifications

CE, FCC, LVD, UL, CCC, BSMI, RoHS

Warranty

3 Years


Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Serial
  • USB
  • WLAN
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 16 GB
Scanner Capability:
  • No
Screen Size Font:
  • 21.5 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • KDS
  • Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Element

Attachments

Brochure (Element_K22W_Brochure_2024-pdf.pdf, 2,189 Kb) [Download]
