Description

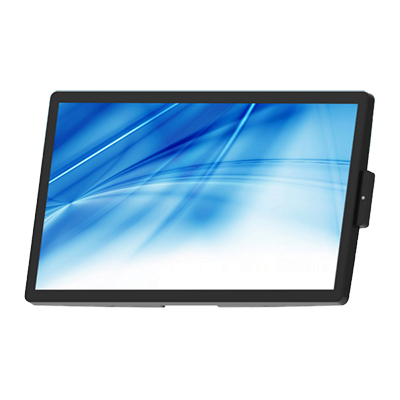

Designed for versatility and built for reliability, the Element K22W Touch Terminal is a powerful 21.5-inch Full HD touchscreen panel PC that brings modern performance and sleek aesthetics to self-service, point-of-sale, and digital signage environments.
Powered by an Intel® Celeron® J6412 Quad-Core processor, this fanless, ultra-slim terminal runs quietly and efficiently, making it ideal for kitchen video systems (KVS), self-check-in/out stations, or customer-facing digital displays. With 8GB of DDR4 RAM, 128GB M.2 SSD, and pre-installed Windows 10 IoT Enterprise LTSC 2021, the K22W ensures rapid performance and long-term software stability.
The projected capacitive (PCAP) 10-point multi-touch screen with 7H hardness glass offers durable, responsive interaction. Connectivity is seamless with USB 3.0, USB-C with Display Alt Mode and Power Delivery, RS232 serial, and Gigabit LAN ports. VESA mount compatible, this unit ships without a stand, offering maximum flexibility for custom installations.
Product Features
- 21.5” Full HD (1920x1080) touchscreen with projected capacitive multi-touch (10 points)
- Intel Celeron J6412 processor (quad-core, 2.0GHz, up to 2.6GHz)
- 8GB DDR4 memory, expandable up to 32GB
- 128GB M.2 SSD for fast and reliable storage
- Fanless, ultra-slim design (37.9mm) ensures quiet operation
- 7H hardness glass surface for increased durability
- Wide 178° viewing angles and 1000:1 contrast ratio for vivid displays
- Multiple I/O ports including USB 3.0, USB-C, RS232, and RJ45 Gigabit LAN
- No stand included – VESA 100x100 mountable for wall or pole installation
- Windows 10 IoT Enterprise LTSC 2021 (64-bit) pre-installed
- Optional: Wi-Fi/Bluetooth, MSR, USB Camera
Product Specifications
Specification | Details |
Model | Element K22W |
Part Number | TTETK22W015 |
Processor | Intel Celeron J6412 Quad-Core (2.0GHz, up to 2.6GHz) |
RAM | 8GB DDR4 So-DIMM (max 32GB) |
Storage | 128GB M.2 SSD |
Display | 21.5” TFT LCD, Full HD (1920 x 1080), 225 nits |
Touchscreen | Projected Capacitive (PCAP), 10-point multi-touch |
Glass Surface | 7H hardness durable glass |
Viewing Angle | 178° horizontal / 178° vertical |
Contrast Ratio | 1000:01:00 |
Speakers | 2 x 2W internal |
Connectivity | 2 x USB 3.0 Type A, 2 x USB-C 3.0, 1 x USB-C (Alt Mode & PD), 1 x RS232, 1 x RJ45 Gigabit LAN |
Power Adapter | 12V / 90W External Power Adaptor |
Mounting | VESA 100 x 100 mm |
Operating System | Windows 10 IoT Enterprise LTSC 2021 (64-bit) |
Housing Material | Plastic, Glass, SECC Metal |
Colour | Black / Dark Grey |
Dimensions | 511mm x 308mm x 45.9mm (monitor only) |
Net Weight | 4.2 kg |
Certifications | CE, FCC, UL, LVD, CCC, BSMI, RoHS |
Operating Temp | 0°C to 40°C; Storage: -20°C to 60°C |
Humidity | Operating: 20%–80% RH; Storage: 10%–90% RH |
Optional Accessories | Stand, MSR (USB), Camera (USB), Wi-Fi/Bluetooth |
Warranty | 3 Years |
Features
Colour:
- Black
Display:
- Single
Interface:
- USB
Magstripe Option:
- No
OS Compatability:
- Windows 10 IOT
Printer:
- No
Processor:
- Intel Celeron
Ram:
- 8 GB
Scanner Capability:
- No
Screen Size Font:
- 21.5 inch
Storage Capacity:
- 128GB
Storage Type:
- SSD
Terminal Type:
- Kiosk
- Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years
