Element K22W Touch Terminal

Black, Single, USB, No, Windows 10 IOT, No, Intel Celeron, 8 GB, No, 21.5 inch, 128GB, SSD, Touch POS, Kiosk, Capacitative, 3 Years, Element
$1,565.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTETK22W002
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

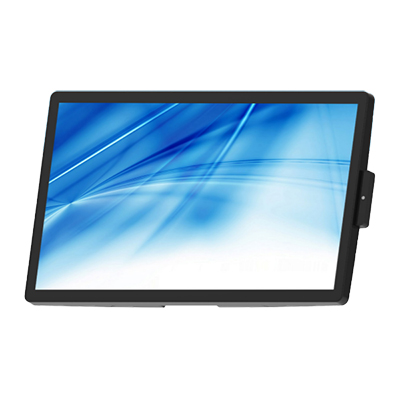

The Element K22W is a high-performance 21.5-inch Full HD touchscreen terminal, engineered to meet the demands of modern retail, hospitality, and self-service environments. Powered by an Intel® Celeron® J6412 processor, and paired with 8GB DDR4 RAM and a 128GB M.2 SSD, this fanless all-in-one panel PC delivers robust computing power with minimal noise.

Designed with a sleek, 16.16mm slim bezel, durable 7H hardness glass, and projected capacitive (PCAP) 10-point multi-touch, the K22W is ideal for touch-intensive applications like self-ordering kiosks, kitchen video systems, digital signage, or check-in terminals.

With a wide viewing angle of 178°, a brightness of 225 nits, and integrated 2 x 2W speakers, it enhances user interaction and content visibility. Flexible connectivity is ensured through USB 3.0, USB-C with Display Alt Mode & Power Delivery, RS232, and Gigabit LAN. VESA mountable and built for commercial durability, the K22W is ready for any front- or back-of-house setup.


Product Features

  • 21.5” Full HD TFT LCD (1920 x 1080) for sharp visuals and immersive content
  • Intel Celeron J6412 CPU (Quad-Core, up to 2.0GHz) for smooth multitasking
  • 8GB DDR4 RAM (expandable to 32GB) and 128GB M.2 SSD storage
  • PCAP 10-point multi-touch with 7H tempered glass surface
  • Ultra-slim 37.9mm bezel-free design – modern and space-saving
  • Fanless design for silent operation in high-traffic environments
  • Wide 178° viewing angle and 1000:1 contrast ratio for optimal clarity
  • USB-C with Display Alt Mode and PD2.0, plus USB-A, RS232, LAN ports
  • VESA 100 x 100 mm mountable for wall or stand installations
  • Pre-installed with Windows 10 IoT Enterprise LTSC 2021 (64-bit)


Product Specifications

Specification

Details

Model

Element K22W

Part Number

TTETK22W002

Processor

Intel® Celeron® J6412 Quad-Core (2.0GHz, 1.5MB cache)

Memory

8GB DDR4 So-DIMM (Max 32GB)

Storage

128GB M.2 SSD

Display

21.5” TFT LCD, Full HD (1920 x 1080), 225 nits

Touch Technology

10-point Projected Capacitive (PCAP) Touch

Glass Surface

7H hardness, anti-scratch

Contrast Ratio

1000:01:00

Viewing Angle

178° horizontal / 178° vertical

I/O Ports

2 x USB 3.0 Type A, 2 x USB-C, 1 x USB-C (Display + PD), 1 x RS232, 1 x RJ45 Giga LAN

Speakers

2 x 2W internal speakers

Mounting

VESA 100 x 100 mm

Construction

Plastic, Glass, SECC Metal

Power Adapter

12V / 90W external power supply

Operating System

Windows 10 IoT Enterprise LTSC 2021 (64-bit)

Dimensions

510.9mm x 308mm x 45.9mm (monitor only)

Weight

4.2kg (net), 6.6kg (gross)

Environment

Operating: 0°C–40°C, Storage: -20°C–60°C

Optional Accessories

Stand, MSR (USB), Camera (USB), Wi-Fi/Bluetooth

Certifications

CE, FCC, UL, LVD, CCC, BSMI, RoHS

Warranty

36 Months


Features

Colour:
  • Black
Display:
  • Single
Interface:
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows 10 IOT
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 8 GB
Scanner Capability:
  • No
Screen Size Font:
  • 21.5 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • Kiosk
  • Touch POS
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Element

Attachments

Brochure (Element_K22W_Brochure.pdf, 2,164 Kb) [Download]
