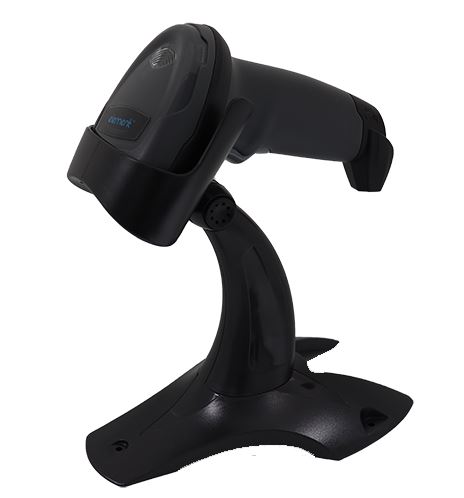

Element P100 1D/2D Hand-held Barcode Scanner with stand and USB-A cable, Black

42, Rugged, 2D, Standard, 2 Years, Handheld, Wired, USB, Serial / RS232, Black, Element
List price: $109.00
$69.00
You save: $40.00 (37%)
For Special & Volume Pricing - Call +61 2 9090 4610
SCELP100003
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Element P100 2D hand-held barcode scanner is engineered for demanding scan-intensive environments, delivering fast, accurate barcode reading with ease. Featuring a new generation CMOS image sensor, intelligent lighting and aiming system, and ergonomic design, the P100 ensures a seamless out-of-box experience with high-speed scanning for both 1D and 2D codes.

Built to withstand 1.5 metre drops and designed with IP42 protection, this rugged barcode scanner is ideal for retail, logistics, healthcare, and manufacturing sectors. The scanner supports a wide range of barcode symbologies, including QR Code, PDF417, Data Matrix, and EAN, ensuring excellent versatility across applications.

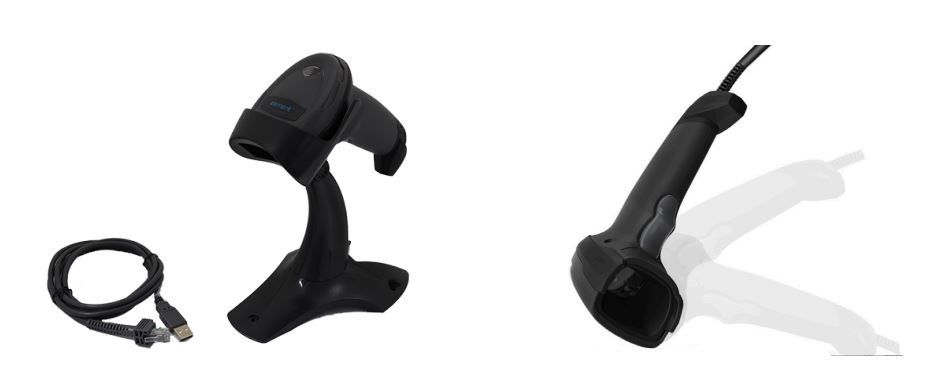

Supplied as a complete kit, the P100 includes a stand and USB cable, allowing for both manual and hands-free scanning. With multiple trigger modes and automatic recognition capabilities, this scanner is a flexible solution for fast-paced workflows.

Product Fetaures

  • High-performance 2D scanning with new generation CMOS image sensor

  • Scans distorted or low-contrast barcodes effortlessly

  • IP42 rated for dust and splash resistance

  • Withstands drops from up to 1.5 metres

  • Intelligent aiming & lighting system for accurate targeting

  • Ergonomic design for comfortable all-day use

  • Wide symbology support including QR, PDF417, Data Matrix, Code39, EAN, UPC and more

  • Recognition Sensitivity: Tilt 360°, Pitch ±60°, Skew ±60°

  • Includes USB cable and stand in the box

  • 2-year manufacturer warranty

Product Specifications

Image Sensor

CMOS, 640 x 480

Scan Modes

Manual, Continuous, Auto

Barcode Types

1D & 2D including QR, PDF417, Data Matrix

Resolution

≥3 mil

Scan Distance (DOF)

Up to 300mm (depending on barcode type)

Interface

USB, RS-232, USB Virtual COM

Drop Resistance

1.5m

Ingress Protection

IP42

Dimensions

83 x 67 x 175 mm

Weight

128g

Operating Temperature

-20°C to +50°C

Storage Temperature

-40°C to +70°C

Humidity

5% - 95% (non-condensing)

Light Tolerance

0 – 100,000 lux

Certifications

CE, FCC, RoHS

Warranty

24 Months

Features

IP Rating:
  • 42
Rugged:
  • Rugged
Scan Engine:
2D
Scan Range:
  • Standard
Warranty:
2 Years
Form Factor:
  • Handheld
Connectivity:
  • Wired
Interface:
  • USB
  • Serial / RS232
Color:
  • Black
Manufacturer
:
Element

Attachments

Brochure (Element_P100_Scanner_Brochure.pdf, 921 Kb) [Download]
