Description

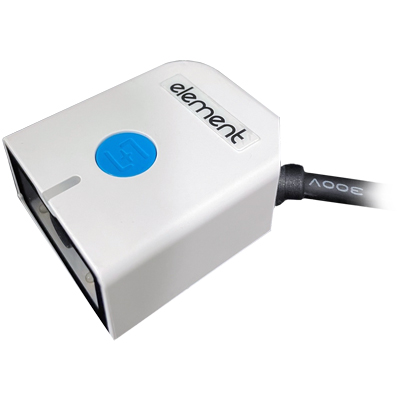

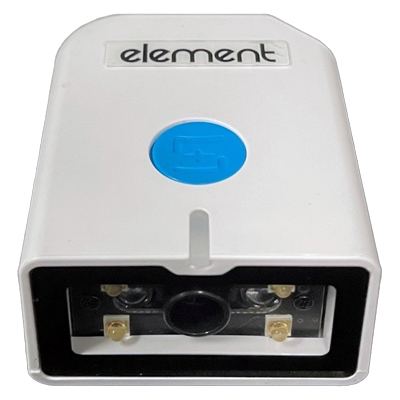

The Element P42KS Fixed Scanner is a compact, high-speed scanning solution built for integration into kiosks, self-service terminals, and industrial automation environments. Powered by an advanced omni-directional 640 x 480 pixel imaging platform, the P42KS delivers fast, accurate decoding of both 1D and 2D barcodes, even from digital screens.
Designed for flexibility, it features auto-sensing scanning, robust performance in various lighting conditions, and support for both USB and RS232 interfaces. Whether used in transport, retail, gaming, access control, or ticketing systems, the P42KS offers reliable performance in a space-saving design. Its IP54-rated housing and 1.2m drop resistance make it ideal for demanding embedded scanning applications.
Product Features
-
High-Speed Omni-Directional Scanning: Quickly reads barcodes in any orientation for faster customer interactions
-
Compact Integration-Friendly Design: Miniature form factor (48mm x 40mm x 22mm) for easy kiosk and equipment integration
-
Versatile Barcode Support: Reads all mainstream 1D and 2D barcodes including QR, UPC-A, PDF417, DataMatrix and more
-
Mobile Screen Compatibility: Accurately reads barcodes from smartphones, tablets, and digital displays
-
Dual Interface Connectivity: Supports USB 2.0 and RS232 for flexible deployment options
-
Durable & Reliable: IP54-rated housing with 1.2m drop resistance for industrial environments
-
Wide Decode Range: Exceptional read distances on various barcode types and sizes
Product Specifications
Scan Technology | CMOS Image Sensor (640 x 480 @ 60FPS) |
Barcode Types Supported | 1D (UPC, Code39, etc.), 2D (QR, PDF417, DM) |
Interface Options | USB 2.0, RS232 |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 70°C |
Humidity Resistance | 0% – 95% RH (non-condensing) |
Drop Resistance | 1.2m |
Ingress Protection | IP54 |
Material | Durable PC + ABS |
Weight | 65.8g |
Power Supply | 5V DC, Max 2.3W |
Decode Ranges (UPC-A) | 45mm – 260mm (42°) / 20mm – 160mm (70°) |
Dimensions (L x W x H) | 48 x 40 x 22 mm |
Warranty | 24 Months |
