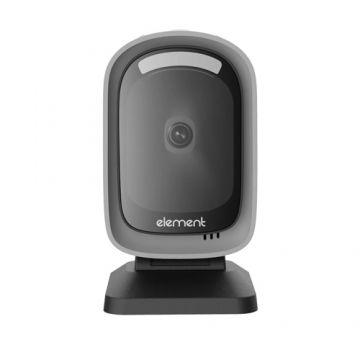

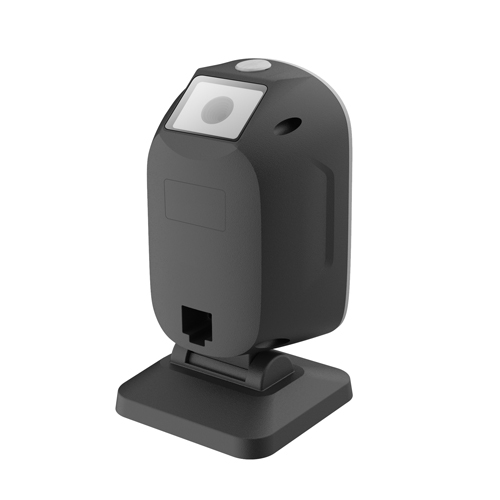

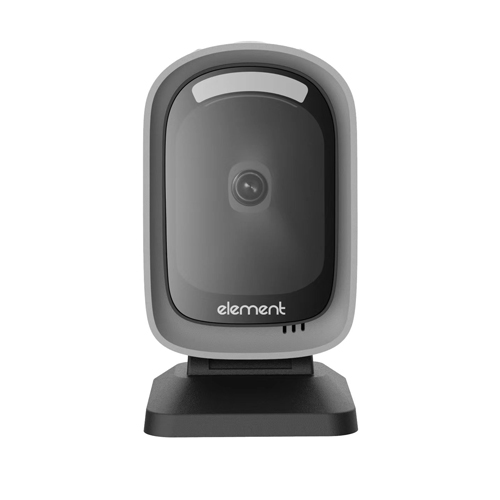

Element P880DS Desktop Dual 2D USB Blk Omni - Directional Barcode Scanner

Omnidirectional, USB, Element
$239.00
For Special & Volume Pricing - Call +61 2 9090 4610
SCETP880DS001
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Upgrade your checkout efficiency and customer interaction with the Element Duet P880DS Dual 2D Barcode Scanner, a revolutionary 2-in-1 desktop scanning solution. Designed to combine front-facing product scanning with top-facing mobile barcode scanning for loyalty programs and digital coupons, this scanner reduces both counter footprint and cost of ownership.

Ideal for retail, pharmacy, transport, finance, and healthcare sectors, the Element Duet features two high-performance CMOS image sensors optimised for lightning-fast reading of 1D and 2D barcodes from paper labels and mobile phone screens. With motion tolerance over 2m/s, wide decoding ranges, and drop-tested durability, it delivers exceptional performance in demanding environments.

The anti-vibration desk mount, USB-HID, USB-COM, and RS232 interface support, along with compatibility with standard point-of-sale systems, make the Duet a future-ready scanning solution built with design, quality, and purpose.

Product Features

  • Dual 2D Scanning System: Front-facing (1280x1080) and top-facing (640x480) CMOS scanners in one compact device.

  • High-Speed Omni-Directional Scanning: Quickly captures barcodes from all directions, including mobile phone displays.

  • Compact and Stylish Design: Saves counter space while adding a modern touch to your checkout or customer service area.

  • Extensive Barcode Support: Reads all major 1D barcodes and 2D symbologies including QR Code, Data Matrix, PDF417, and Aztec.

  • Robust Performance: Motion tolerance over 2m/s with wide decoding ranges across both scanning planes.

  • Durable Build Quality: Engineered to withstand drops from up to 1.5 metres and extreme ambient light up to 100,000 Lux.

  • Wide Operating Conditions: Functions reliably from -30°C to 70°C in humidity up to 95%.

  • Flexible Connectivity: Interfaces include USB-HID, USB Virtual COM, and RS232 for seamless system integration.

  • Ideal for Multi-Industry Use: Perfect for pharmacy, QSRs, retail POS, ticketing, logistics, and healthcare environments.

Product Specifications

Model Number

Element Duet P880DS

Scanner Type

Desktop Dual 2D Omni-directional

Front Scanner Resolution

1280 x 1080 pixels (CMOS)

Top Scanner Resolution

640 x 480 pixels (CMOS)

Light Source

Front: 6500K LED
Top: 5000K LED

Field of View (FOV)

Front: 55°(H) x 47°(V)
Top: 40.5°(H) x 31°(V)

Scan Angle (Roll/Pitch/Yaw)

360°, ±65°, ±60°

Print Contrast Sensitivity

Front: 15>%
Top: 20% minimum reflective difference

Interfaces

USB-HID, USB-COM, RS232

Power Requirements

3.3V – 5V DC, 200mA operating current

Physical Dimensions

83mm x 80mm x 147mm

Weight

301g

Features

Scan Engine:
2D
Usage:
  • Industrial
Form Factor:
  • Omnidirectional
Interface:
  • USB
Manufacturer
:
Element

Attachments

Brochure (Element_P880DS_pdf.pdf, 2,787 Kb) [Download]
