Description

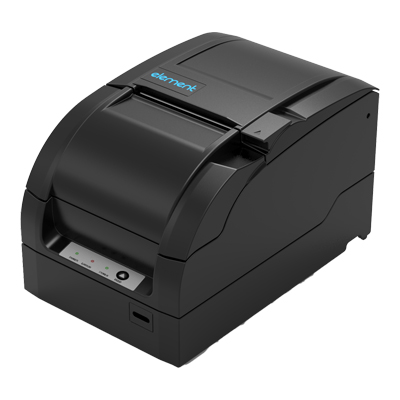

The Element RW337D Dot Matrix Kitchen Printer is engineered for the demanding conditions of commercial kitchens and hospitality venues. Built with a durable 9-pin impact printing mechanism, this high-speed printer delivers a maximum of 4.7 lines per second, ensuring fast and legible order printing even in the busiest environments.

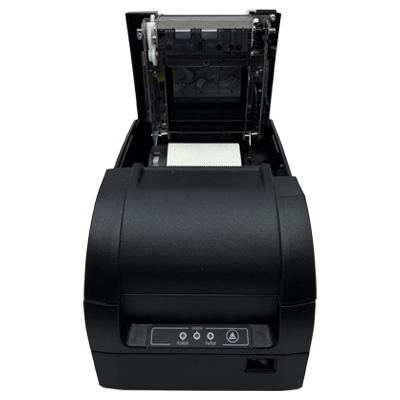

Designed for flexibility and reliability, the RW337D supports multiple paper widths (80mm, 76mm, 69.5mm, and 57.5mm) and multi-layer paper (1 original + 1 copy). The auto-cutter, easy drop-in paper loading, and clamshell cover design make maintenance effortless, while features like anti-jam protection, paper saving, and cutter error auto-recovery enhance uptime.
With USB, RS232, IEEE1284, and Ethernet connectivity, it seamlessly integrates with modern and legacy POS systems. A built-in power supply and robust mechanical lifespan of up to 300 million impacts make the RW337D a long-term kitchen workhorse.
Product Features
-
High-speed printing at up to 4.7 lines per second
-
Supports multi-layer paper for duplicate order printing
-
Automatic cutter error removal and anti-jam design
-
Compatible with plain and marked continuous paper
-
Built-in power supply reduces clutter and installation hassle
-
Interfaces include USB, Serial (RS232), IEEE1284 & Ethernet
-
User-friendly drop-in paper loading and clamshell cover
-
Long-lasting ribbon options (ERC-38)
-
Supports 17 codepages, dual colour printing, and up-time tracking
-
Configurable feed button and buzzer notifications
Product Specifications
Print Method | 9-pin Serial Impact Dot Matrix |
Max Print Speed | 4.7 LPS (400 dots/line) |
Resolution | 80 × 144 dpi |
Paper Support | 80mm, 76mm, 69.5mm, 57.5mm widths; Single or 2-ply |
Paper Thickness | Up to 0.08mm (single); ≤14mm (multi-layer total) |
Auto Cutter | Partial & Full Cut; 800,000 cuts (standard) |
Character Sets | Font A, Font B, Chinese; 17 codepages supported |
Memory | 64KB receive buffer; 128KB NV image; 8KB user NV memory |
Ribbon Options | ERC-38 Black, Red/Black; up to 4 million characters |
Interfaces | USB, RS232, IEEE1284, Ethernet |
Cash Drawer Support | 1–2 drawers |
Power Supply | DC 24V ± 5% |
Reliability | Print head: 150M characters |
Dimensions | 160mm (W) x 245mm (D) x 154mm (H) |
Weight | 3.0kg |
Operating Conditions | 5–45°C, 20–90% RH |
Storage Conditions | -40–60°C, 20–93% RH |
Features
- Cutter
- Windows
- Desktop
- Kitchen / Dot Matrix Print
- USB
- Ethernet
- RS-232 Serial
- Black
- 2 inch
