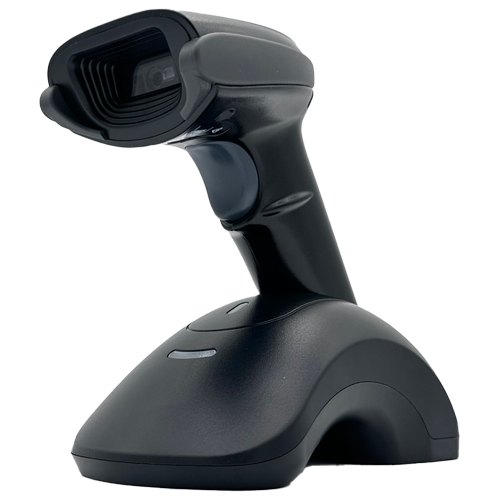

ELEMENT SCANNER KIT P135BT 2D BLUETOOTH CRD/USB BK

$179.00
For Special & Volume Pricing - Call +61 2 9090 4610
SCETP135BT001
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Element P135BT is a powerful and flexible Bluetooth wireless barcode scanner built to deliver reliable performance in fast-paced retail, logistics, and service environments. Supporting both 1D and 2D barcodes, the P135BT reads from printed labels, phone screens, tablets, and digital displays with ease and precision.

This high-speed handheld scanner features a large-angle image sensor, accurate red aiming light, and motion tolerance over 2m/s, making it ideal for scanning in busy environments. It also offers manual and automatic scan modes, and an automatic wake-up function, so you can scan continuously without pressing a trigger every time.

With an impressive 90-metre Bluetooth transmission range, a 2000mAh battery offering up to 10 hours of operation, and a 1.2m drop-resistant design, the P135BT is the perfect solution for users needing wireless freedom, high-performance scanning, and excellent durability — all at a competitive price.

Product Features

  • Wireless Bluetooth connectivity with up to 90m range in open space

  • Reads 1D and 2D barcodes from printed media and mobile screens

  • High-speed scanning with >2m/s motion tolerance

  • Large 40° x 32° field of view with red LED aimer for quick targeting

  • Dual operation modes: Manual trigger or automatic scanning

  • Auto wake-up and screen scan support

  • Supports multi-language barcode data transmission

  • Rechargeable 2000mAh battery – up to 10 hours use per charge

  • USB and RS232 interface for flexible charging or data transmission

  • Durable and drop-tested from 1.2 metres on concrete

Product Specifications

Scan Type

Area Imager

Supported Barcodes (1D)

 Code 39, UPC, EAN, Code 128, Interleaved 2 of 5, etc.

Supported Barcodes (2D)

QR, MicroQR, PDF417, Data Matrix, Aztec, Hanxin, etc.

Image Sensor

640 (H) x 480 (V) pixels

Aimer / Illumination

Red LED (617nm), White LED (3500K)

Field of View

40° (H) x 32° (V)

Scan Angle

Pitch ±65°, Roll ±60°, Yaw 360°

Motion Tolerance

> 2 m/s

Symbol Contrast

> 25>%

Interface Options

USB, RS232

Bluetooth Range

Up to 90 metres (open space)

Battery Capacity

4.2V / 2000mAh

Operating Time

Up to 10 hours

Charging Time

Approx. 4.5 hours

Drop Resistance

1.2m onto concrete

Operating Temperature

0°C to 50°C

Storage Temperature

-40°C to 70°C

Humidity

0% to 95%, non-condensing

Ambient Light Immunity

Up to 100,000 Lux

Dimensions (L x W x H)

177mm x 89mm x 70mm

Weight

190g

Attachments

Brochure (Element_P135_pdf.pdf, 2,433 Kb) [Download]
