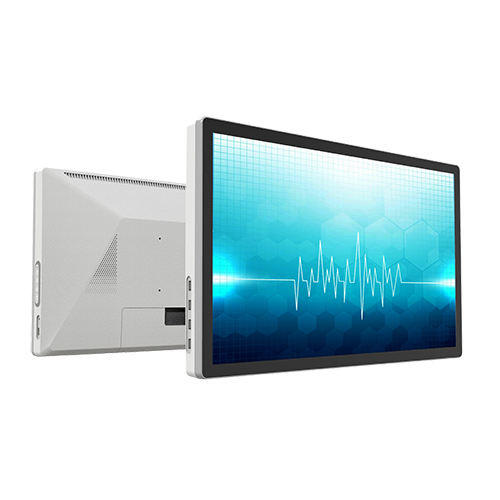

Element Touch Monitor M24-HC 24" Display with HDMI/DP/DVI DICOM in White

White, Single, USB, HDMI, Ethernet, DisplayPort, No, No, No, 24 inch, POS PC, Capacitative, 3 Years, Element
$1,300.00
For Special & Volume Pricing - Call +61 489 087 085
TMETM24HC001
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The Element M24-HC 24" Healthcare Touch Monitor is a premium-grade clinical review display purpose-built for medical environments. Designed to deliver sharp, accurate images, this monitor is DICOM calibration compliant, ensuring consistency and reliability for clinical inspections.

With its 24" Full HD flat screen, anti-glare touch panel, and 350 nits brightness, the M24-HC provides excellent clarity in any lighting environment. Certified to IEC60601-1-2 4th edition medical standards and featuring an IP54-rated front bezel, it is safe, durable, and easy to clean—ideal for hospitals, EMR carts, WOWs, mobile stations, or integration with medical equipment.

Equipped with HDMI, DP, DVI, USB ports, and built-in speakers, the Element M24-HC offers flexible connectivity and smooth integration into healthcare IT systems. Its sleek, modern design combined with dependable medical-grade compliance makes it a trusted choice for Australian healthcare professionals.


Product Features

  • 24" Full HD IPS LCD display with 1920 x 1080 resolution
  • DICOM calibration compliant for clinical accuracy
  • Anti-glare, anti-fingerprint coated screen for better visibility
  • Projected capacitive touch technology with 10-point multi-touch support
  • Brightness: 350 nits with wide 178° viewing angles
  • Front bezel with IP54 ingress protection for hygiene and easy cleaning
  • HDMI, DP, and DVI video inputs with additional USB ports
  • Built-in dual 2W speakers for audio alerts and playback
  • IEC60601-1-2 4th edition certified for medical use
  • VESA 100 x 100mm mount compatibility with optional stand.


Product Specifications

Specification

Details

Model

M24-HC

Screen Size

23.8" IPS LCD

Resolution

1920 x 1080 (FHD)

Contrast Ratio

1000:01:00

Brightness

350 nits

Viewing Angles

178° (H/V)

Touch Technology

Projective Capacitive, 10-point multi-touch

Glass Coating

AG Glass 80% ±15 + AF Coating

Colour Calibration

DICOM, Gamma 1.8/2.2, multiple presets

Video Inputs

HDMI, DP, DVI-I

USB Ports

2 x USB-A 3.0, 2 x USB-A 2.0, 1 x USB-B 3.0 upstream

Audio

2 x 2W speakers, 3.5mm input

Enclosure

ABS Plastic, White

Ingress Protection

IP54 (front bezel)

Mounting

VESA 100 x 100mm

Dimensions (W x H x D)

566.58 x 338.52 x 58mm (screen only)

Weight

5.78kg (screen only), 8.47kg (with stand)

Certifications

CE, FCC, UL/IEC60601-1, BSMI, CCC

Operating Temp

0°C ~ 40°C, 20–80% RH

Storage Temp

-20°C ~ 60°C, 10–90% RH

Warranty

36 Months

Features

Colour:
  • White
Display:
  • Single
Interface:
  • DisplayPort
  • Ethernet
  • HDMI
  • USB
Magstripe Option:
  • No
Printer:
  • No
Scanner Capability:
  • No
Screen Size Font:
  • 24 inch
Terminal Type:
  • POS PC
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
Element

Attachments

Brochure (Element_M24_HC_Brochure.pdf, 2,568 Kb) [Download]
