ELO D/TOP 1502L PCAP VGA/HDMI USB BLK

Black, Single, VGA, USB, HDMI, No, No, No, 15.6 inch, Capacitative, 3 Years, ELO
$1,539.00
For Special & Volume Pricing - Call +61 2 9090 4610
E045538
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

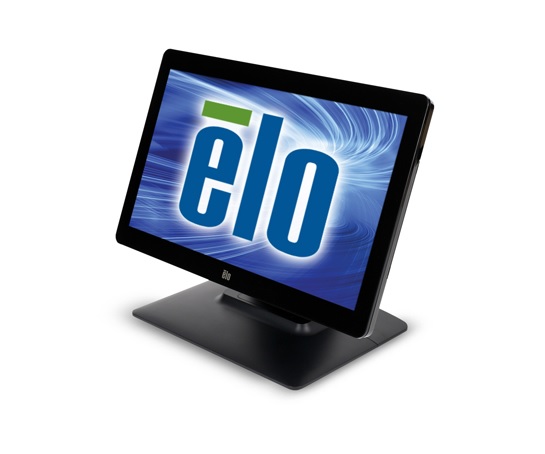

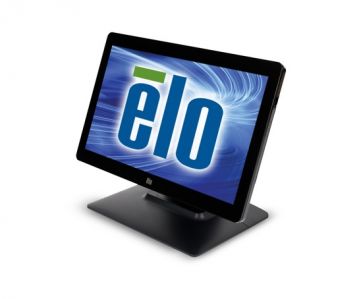

The Elo 1502L 15.6" Touch Monitor delivers a sleek, modern widescreen design and the reliable performance retailers expect from Elo. Built with IntelliTouch® Pro PCAP 10-point touch technology, this edge-to-edge zero-bezel display is engineered for durability and precision in high-traffic retail, hospitality, and point-of-service environments.

Featuring 1366 x 768 HD resolution, anti-glare coating, and projected capacitive multi-touch support, the Elo 1502L is perfect for interactive customer displays, POS terminals, kiosks, or self-service stations. The unit includes both HDMI and mini-VGA video inputs, and a USB controller interface for seamless integration. The display supports portrait, landscape, and tabletop mounting with flexible VESA options.

With a slim profile and rugged build quality, the Elo 1502L fits beautifully into any modern retail setup. Optional accessories like a magnetic stripe reader (MSR), barcode scanner, and NFC adapter expand functionality and enable mobile payment workflows. Elo’s reputation for touch reliability ensures long-term performance in mission-critical applications.


Product Features

  • 15.6” HD LCD Touchscreen with 1366 x 768 resolution
  • IntelliTouch Pro Projected Capacitive Touch (PCAP) with 10-point multi-touch
  • Anti-glare, edge-to-edge glass for vibrant, responsive display in any lighting
  • Zero-bezel modern design, ideal for point-of-sale and point-of-information setups
  • Versatile connectivity: HDMI, mini-VGA (VGA adapter included), and USB
  • Integrated dual 2W speakers for audio support
  • Flexible VESA mount options (75mm & 100mm) for desktop, wall or pole mounting
  • Optional retail accessories: MSR, barcode scanner, NFC, customer display
  • Durable design tested for continuous public use
  • Energy efficient with typical power consumption of just 8.7W
  • 3-Year Warranty for reliable long-term performance.


Product Specifications

Specification

Details

Model

Elo 1502L

Part Number

E045538

Display Size

15.6" Widescreen (16:9 aspect ratio)

Resolution

HD 1366 x 768

Touch Technology

IntelliTouch Pro PCAP, 10-touch, anti-glare

Bezel Design

Zero-bezel edge-to-edge glass

Brightness

187 nits with touch; 220 nits (panel)

Contrast Ratio

600:01:00

Response Time

10ms typical

Viewing Angle

Horizontal 90° / Vertical 65°

Speakers

2 x 2W internal speakers

Video Inputs

HDMI, Mini-VGA (includes VGA cable)

USB Interface

USB Type-A to Type-B (touch interface)

Mounting Options

VESA 75mm & 100mm compatible

Stand Options

Optional table-top stand (P/N E044162)

Power Consumption

8.7W (typical), 0.3W (sleep), 0.2W (off)

Power Input

12VDC via 40W external power brick

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 60°C

Dimensions (WxHxD)

387mm x 244mm x 33mm

Weight

3.05 kg (without packaging)

Regulatory Certifications

UL, FCC, CE, IC, VCCI, cUL

Warranty

3 Years Return to Base


Features

Colour:
  • Black
Display:
  • Single
Interface:
  • HDMI
  • USB
  • VGA
Magstripe Option:
  • No
Printer:
  • No
Scanner Capability:
  • No
Screen Size Font:
  • 15.6 inch
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
ELO

Attachments

Brochure (ELO__1502L.pdf, 357 Kb) [Download]
