Description

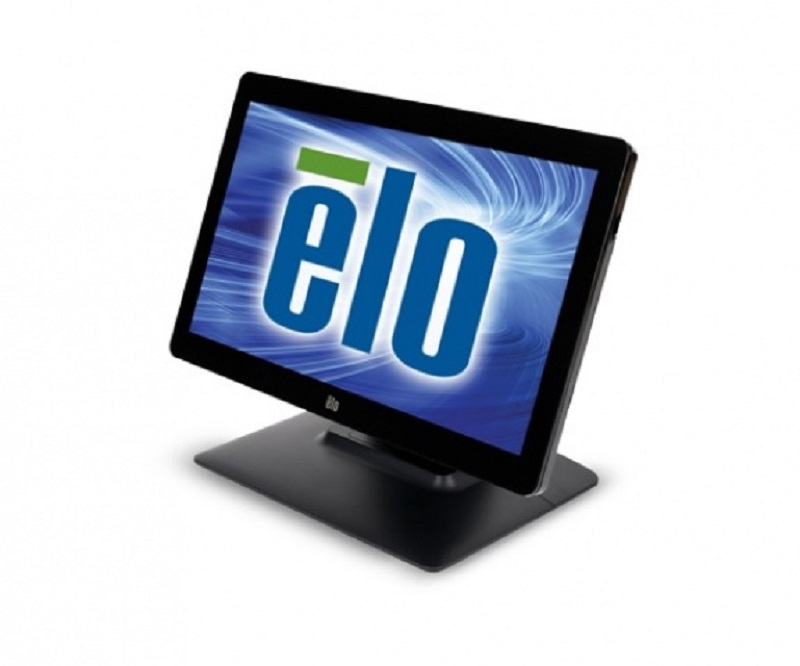

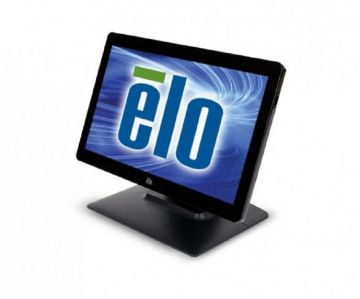

The Elo 1502L is a sleek, 15.6-inch widescreen touchscreen monitor designed to enhance point-of-sale and customer-facing applications in retail, hospitality, and commercial environments across Australia. Featuring a projected capacitive (PCAP) 10-touch zero-bezel display, the Elo 1502L delivers intuitive touch interactions and a modern aesthetic that blends seamlessly into any space.
Equipped with HD resolution (1366 x 768), anti-glare edge-to-edge glass, and versatile mounting options including VESA, this compact display is ideal for desktop, wall, or pole installation. The Elo 1502L supports both mini-VGA and HDMI video inputs, and includes integrated USB connectivity, built-in speakers, and an optional range of POS peripherals such as MSR, barcode scanners, and NFC readers—making it a flexible solution for transactional, informational, or interactive applications.
Product Features
- 15.6" HD widescreen LED display (1366 x 768 resolution)
- Edge-to-edge glass with anti-glare surface
- IntelliTouch Pro PCAP touchscreen with 10-point multi-touch
- Zero-bezel modern design ideal for commercial environments
- HDMI and mini-VGA video inputs, USB touch interface
- Compatible with Elo retail accessories: MSR, NFC, barcode scanner, customer display
- Integrated 2W stereo speakers
- Energy-efficient LED backlighting (only 8.7W typical power usage)
- Flexible mounting options: VESA 75mm/100mm; landscape, portrait, or tabletop orientation
- Designed for high-use public venues, with 3-year standard warranty
- Worldwide compliance: CE, FCC, UL, VCCI, IC
Product Specifications
Specification | Details |
Model | Elo 1502L |
Product ID | TMELE318746 |
Display Size | 15.6” widescreen |
Aspect Ratio | 16:09 |
Resolution | HD: 1366 x 768 |
Touch Technology | IntelliTouch Pro PCAP (10-point) |
Brightness | 187 nits (with touch) |
Contrast Ratio | 600:01:00 |
Viewing Angle | H: 90°, V: 65° |
Video Inputs | Mini-VGA (cable included), HDMI (cable included) |
Touch Interface | USB (Type-A to Type-B cable included) |
Speakers | 2 x 2W internal speakers |
Power Consumption | 8.7W typical |
Mounting Options | VESA 75mm / 100mm (stand optional) |
Operating Temp. | 0°C to 40°C |
Storage Temp. | -20°C to 60°C |
Humidity (non-cond.) | Operating: 20%-80%, Storage: 10%-95>#/span### |
Dimensions (WxHxD) | 387mm x 244mm x 33mm |
Weight (with stand) | 3.05 kg |
Certifications | CE, FCC, UL, VCCI, IC, cUL |
Warranty | 3 years standard |
Features
Colour:
- Black
Display:
- Single
Interface:
- HDMI
Magstripe Option:
- No
Scanner Capability:
- No
Screen Size Font:
- 15.6 inch
Terminal Type:
- POS PC
Touch Technology:
Capacitative
Warranty:
3 Years
