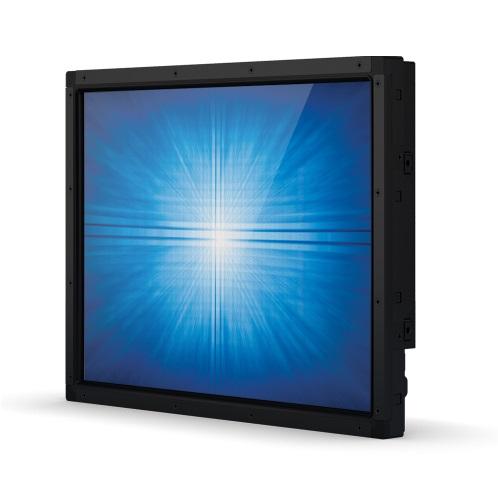

ELO OPEN FRAME 1590L 15/SECURE-TOUCH HDMI/VGA/DP

4:3, No, Display Port, VGA, HDMI, USB, No, 1024x768, LED, 60Hz, 15", Anti-glare, Yes, 3 Years, ELO
$1,889.00
For Special & Volume Pricing - Call +61 489 087 085
E334530
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

Experience seamless interactivity with the Elo 1590L 15" Open Frame Touchscreen Monitor, expertly engineered for commercial-grade environments such as retail self-service, kiosks, gaming, and industrial automation. This compact yet robust display features a sleek, slim design, enabled by a power-efficient LED backlight that reduces energy consumption and heat output.

The SecureTouch technology delivers stable, drift-free performance with accurate touch responses and vivid image clarity, making it ideal for applications that demand reliable 24/7 interaction. With versatile mounting options and broad connectivity—including HDMI, VGA, and DisplayPort—the Elo 1590L integrates effortlessly into a variety of custom enclosures and industrial setups. Built to last and backed by a 3-year warranty, it ensures long-term performance in any installation.


Product Features

  • 15-inch open-frame LCD touchscreen with 4:3 aspect ratio
  • SecureTouch surface wave touch technology for accurate and responsive interaction
  • Energy-saving LED backlight reduces power usage and heat generation
  • Multiple video inputs: HDMI, VGA, and DisplayPort
  • Dual touch interfaces: USB and RS232 for flexible system integration
  • Anti-glare display enhances visibility in various lighting conditions
  • Wide viewing angles: 160° horizontal and 140° vertical
  • Robust mounting support: VESA, rear, front, rack, and flush options
  • Compact, slim-bezel design ideal for kiosks and embedded applications
  • 3-year manufacturer’s warranty with 50,000-hour MTBF


Product Specifications

Specification

Details

Model

1590L

Screen Size

15" diagonal

Aspect Ratio

4:03

Native Resolution

1024 x 768 at 60, 75 Hz

Supported Resolutions

640×480, 720×400, 800×500, 800×600

Display Type

LCD with LED backlight

Brightness (Typical)

250 nits (panel), 220 nits (SecureTouch)

Response Time

16 ms

Touch Technology

SecureTouch (Surface Acoustic Wave)

Touch Points

Single-touch and 10-touch (model dependent)

Viewing Angle

Horizontal: 80°/160°, Vertical: 70°/140°

Contrast Ratio

700:01:00

Input Ports

HDMI 1.3, VGA (DB-15), DisplayPort 1.1a

Touch Interface

USB & RS232

Mounting Options

VESA 75mm & 100mm, front/rear/flush/rack mount (with optional kits)

Power Input

12V DC (via optional power brick)

Power Consumption

On: 12.5W, Sleep: 1.5W, Off: 0.5W

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 60°C

Humidity (Operating)

20% to 80>#/span###

Humidity (Storage)

10% to 95>#/span###

Dimensions (Bezel)

336.4mm x 264.4mm x 41.9mm

Dimensions (Zero-Bezel)

358mm x 284.9mm x 35.6mm

Weight (Unpackaged)

2.9 kg

Weight (Packaged)

4.7 kg

MTBF

50,000 hours demonstrated

Certifications

UL, FCC, RCM, CE, TUV, RoHS, WEEE, and more

Included Accessories

HDMI & VGA cables, USB cable, OSD remote, Quick Start Guide, Mounting Kits

Warranty

3 years standard

Features

Aspect Ratio:
  • 4:3
Built-in Speaker:
  • No
Connectivity:
  • Display Port
  • HDMI
  • USB
  • VGA
Curved Screen:
  • No
Display Resolution:
  • 1024x768
Display Technology:
  • LED
Refresh Rate:
  • 60Hz
Screen Size:
  • 15"
Screen Type:
  • Anti-glare
Touch Screen:
  • Yes
Warranty:
3 Years
Manufacturer
:
ELO

Attachments

Brochure (ELO_1590L_DS.pdf, 227 Kb) [Download]
