ELO PAYPOINT PLUS I5 WINDOWS ALL IN ONE POS WHITE

White, Single, HDMI, Serial, USB, Windows, Yes, Core i5, 8 GB, Yes, 15.6 inch, 128GB, All-in-one POS, 3 Years, ELO
$6,013.00
For Special & Volume Pricing - Call +61 2 9090 4610
E833933
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

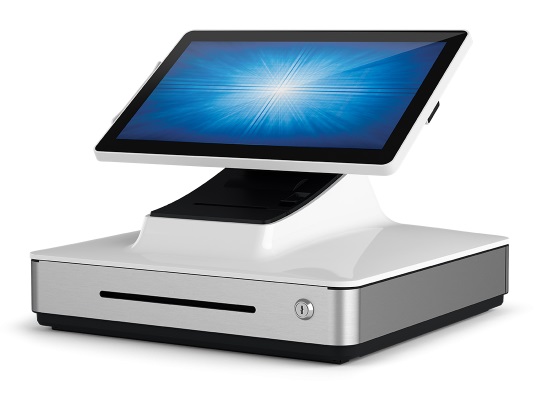

The Elo PayPoint® Plus for Windows® is a stylish all-in-one POS solution designed to simplify operations at the point of sale. Powered by an Intel® Coffee Lake Core™ i5-8500T processor and running Windows 10, this sleek system combines a 15.6-inch TouchPro® PCAP touchscreen, integrated 3" Star thermal printer, Honeywell 2D barcode scanner, MagTek MSR, and a robust 16-inch cash drawer—all in a compact footprint.

Engineered for flexibility, the PayPoint Plus features extensive I/O ports, allowing you to connect third-party peripherals such as payment terminals, secondary cash drawers, or scales. Its flip-for-signature touchscreen enhances customer engagement, while the intuitive single-cable setup means you’re up and running in minutes.

Whether for retail, hospitality, or service environments, the Elo PayPoint® Plus delivers performance, durability, and customer-centric design.

Product Features

  • All-in-One POS System with Built-in Peripherals

  • 15.6" Full HD TouchPro® Projected Capacitive Touchscreen with Flip-for-Signature Function

  • Intel® Core™ i5-8500T Processor with 8GB RAM & 128GB SSD

  • Integrated 3” Star Thermal Receipt Printer with Auto-Cutter

  • Honeywell 2D Barcode Scanner for Mobile Coupons & Loyalty Apps

  • MagTek 3-Track Encryptable Magnetic Stripe Reader (MSR)

  • Robust 16” Cash Drawer with Removable Till and Media Slot

  • Wi-Fi and Bluetooth 5.0 Connectivity

  • Multiple I/O Ports for Expanded Peripheral Support

  • Easy One-Cable Setup for Quick Deployment

  • 3-Year Standard Warranty with Optional EloCare Advance Exchange Service

Product Specifications

Processor

Intel® Core™ i5-8500T (3.5 GHz, 9M Cache)

Memory

8GB DDR4 (Expandable up to 32GB)

Storage

128GB M.2 SSD

Operating System

Windows 10 IoT or No OS (Options Available)

Display

15.6" TouchPro® PCAP, 1920 x 1080 Full HD

Connectivity

Wi-Fi 802.11ac, Bluetooth 5.0, Multiple USB Ports

Ports

4x USB 2.0, 2x RJ45 Serial, LAN, Powered USB, HDMI

Power Supply

100-240 VAC, 51.86W Typical Consumption

Dimensions (W x D x H)

16.18" x 12.71" x 16.53" (411mm x 323mm x 420mm)

Warranty

3-Year Standard Warranty



Features

Colour:
  • White
Display:
  • Single
Interface:
  • HDMI
  • Serial
  • USB
OS Compatability:
  • Windows
Printer:
  • Yes
Processor:
  • Core i5
Ram:
  • 8 GB
Scanner Capability:
  • Yes
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 128GB
Terminal Type:
  • All-in-one POS
Warranty:
3 Years
Manufacturer
:
ELO

Attachments

Brochure (ELO_PayPoint-Windows_Plus_DS.pdf, 200 Kb) [Download]
