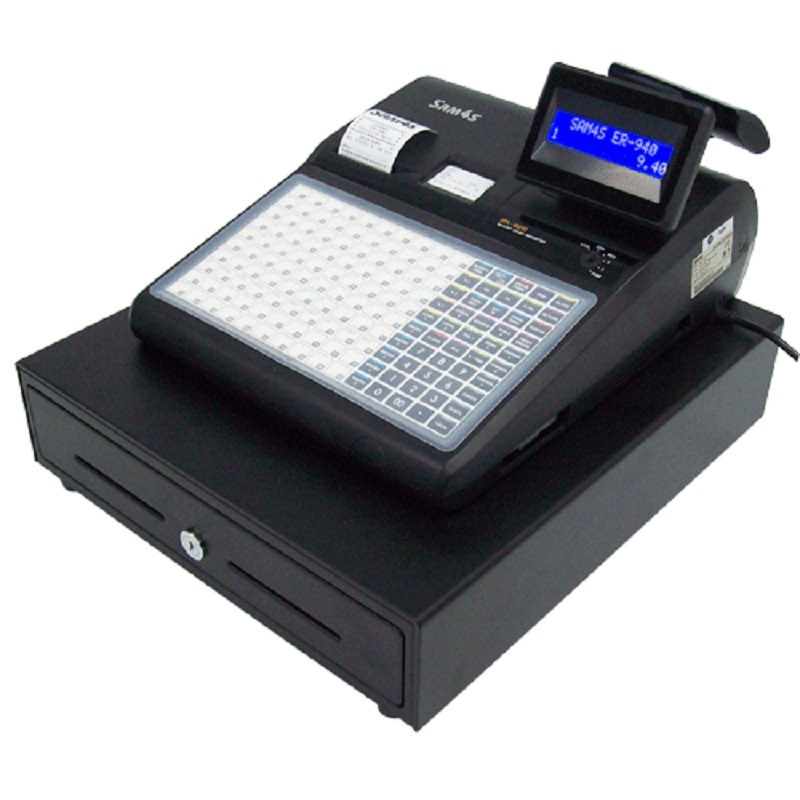

ER-940 Dual Station Cash Register

ER940
$999.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+
Sam4s

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

The ER-940 is a solution for a wide range of Hospitality environments. It has a 2 line LCD display with eye fetching ocean blue backlight and dual drop in paper loading thermal printers.

Main Features :
  • High featured 2 Station Cash Register
  • High Speed (23 LPS) 2 Station Direct Thermal Printer with Auto Cutter on Receipt Printer
  • Drop in Paper loading
  • 3 x RS232 ports for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output
  • Up to 3300 PLU's standard, 20000 Max
  • Table Tracking for up to 500 Tables
  • Graphic Logo Print
  • Electronic Journal



Attachments

ER-940-Brochure (ER9x0_brochure.pdf, 350 Kb) [Download]

Specifications



Printing Method

2 Station Direct Thermal Type (Auto Cutter on Receipt Printer)

Printing Speed (Max.)

up to 23 LPS

Paper Width

57.5 ± 0.5mm 69.5 ± 0.5mm 76 ± 0.5mm

Paper Roll Diameter

Max Ø 83.0mm

Paper Supply Method

Easy Paper Loading, Drop in and Print

Keyboard

160 Key Flat Keyboard

Display

Operator:

LCD 2 Lines of 16Characters

Customer

10 Digit VFD

Memory

ROM: 16 Mbits Flash ROM

RAM: 4 Mbits SRAM

Memory Protection

90 Days

Interface

4 x RS232

COM1 : DB9 Serial

COM2 : DB9 Serial

COM3 : RJ45 Serial

COM4 : USB Virtual COM Serial (RJ45 Serial Optional)

Drawer

4B/8C

Memory Configuration
("Max." depends on

Memory Sharing

choices)

3300 PLU's standard, Max. 20000

Max. 99 Clerks

Max. 99 Groups

Max. 500 Checks (Accounts)

Max. 200 Lines Record Per Account

Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System

Max. 2 Price Levels

Max. 99 Mix & Match

Electronic Journal

OS Functions

32 Character per Line Logo Description

(6 Lines Heading + 6 Lines Footing)

18 Character Description

15 Digit PLU Number

5 Modifier Levels

20 Macro keys (with Manager Control Option)

10 Tender Keys

Charge Posting Accounts

Max. 4 Currency Conversion

Inventory Item

Condiment Item

Table Management or Clerk Interrupt

Training Mode

6 Digit Clerk Password

Graphic Logo on the Receipt Heading and Footing

Maximum 200 Line Record per Transaction

Software Utilities

Programming Utility Software, ASCII converter for PC comm's

Virtual Com Port Driver for Windows (32/64-bit)

Weight

12 Kg

External Dimensions

(W x D x H)

400 x 455 x 305 mm

EMC/Safety Standards

CE, FCC, UL, TUV, GS

Power Supply

AC 230V± 10%
