FEC PP-9732W J6412 8GB RAM/128GB Storage 22" NO/STD Black - Windows 10 IoT

Grey, Black, Single, No, Windows, No, Intel Celeron, 8 GB, 22 inch, SSD, POS PC, Capacitative, 3 Years, FEC
$2,717.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTFIPP9732W001
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

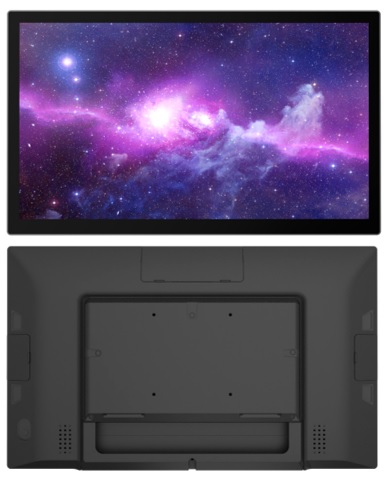

The FEC PP-9732W Panel PC is a versatile and high-performance all-in-one solution designed for commercial and industrial applications across Australia. Powered by an Intel Celeron J6412 processor, this 22-inch touch-enabled system delivers smooth performance for digital signage, POS terminals, and information kiosks. The ultra-slim profile with VESA compatibility supports wall-mounted, desktop, or panel-mounted installations, offering unmatched flexibility. With 8GB DDR4 RAM, a fast 128GB NVMe SSD, and a full HD PCAP touchscreen, the PP-9732W blends elegant design with industrial-grade durability, making it ideal for retail, hospitality, and corporate environments. Pre-installed with Windows 10 IoT Enterprise, it ensures long-term stability and security.


Product Features

  • Intel® Celeron® J6412 Quad-Core processor (up to 2.6GHz) for efficient multitasking
  • 22” Full HD TFT display (1920 x 1080) with 250-nit brightness
  • True-Flat Projective Capacitive (PCAP) Touchscreen for responsive input
  • 8GB DDR4 RAM for smooth performance (expandable)
  • 128GB M.2 NVMe SSD for ultra-fast data access
  • Windows 10 IoT Enterprise (64-bit) pre-installed for enterprise-ready stability
  • Slim, modern chassis in Galaxy Grey – perfect for commercial environments
  • VESA mount (100x100mm) – supports wall, panel, or desktop setup
  • Extensive I/O ports: USB 3.0, HDMI, dual LAN, RS232, RJ11, and smart I/O options
  • Fanless design and durable aluminium-plastic build for silent, reliable operation


Product Specifications

Specification

Details

Model

FEC PP-9732W J6412

Processor

Intel® Celeron® J6412, Quad-Core, 2.0GHz (up to 2.6GHz)

Memory

8GB DDR4 RAM (Expandable)

Storage

128GB M.2 NVMe SSD

Display

22" TFT LCD, 1920x1080, 250 nits brightness

Touchscreen

True-Flat Projective Capacitive (PCAP)

Operating System

Windows 10 IoT Enterprise 2021 LTSC (64-bit)

Mounting Options

VESA 100x100mm compatible

Connectivity

USB 3.0, USB 2.0, HDMI, 2 x RJ45 (RS232), Giga LAN, RJ11

Wireless Support

Optional M.2 E Key 802.11ac + Bluetooth 4.0

Speakers

2 x 2W Internal Speakers

Construction

Aluminium Die-Casting + Plastic (Galaxy Grey)

Power Supply

130W External Adapter (20V)

Dimensions

512.3mm x 308.91mm x 38.8mm

Weight

Net: 5.5kg / Gross: 7.0kg

Certifications

FCC / CE Class B

Temperature Range

Operating: 0°C to 40°C / Storage: -20°C to 60°C


Features

Colour:
  • Black
  • Grey
Display:
  • Single
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 8 GB
Screen Size Font:
  • 22 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Terminal Type:
  • POS PC
Touch Technology:
Capacitative
Warranty:
3 Years
Manufacturer
:
FEC
