FEC PP-9735 J6412 8/128 15P STD BLK W10

Silver, Grey, Single, USB, RJ11, Serial, Ethernet, No, Windows, No, Intel Celeron, 8 GB, No, 15 inch, 128GB, SSD, Capacitative, 2 Years, FEC
$2,279.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTFIPP9735001
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

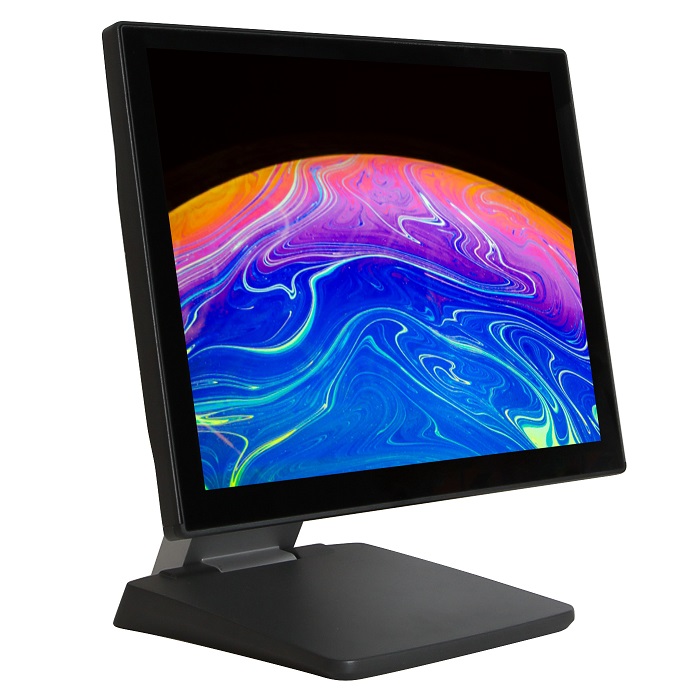

The FEC PP-9735 POS Terminal is an innovative and eco-conscious retail solution, delivering outstanding performance, flexibility, and sleek aesthetics. Powered by an Intel® Celeron® J6412 processor and equipped with 8GB DDR4 RAM and a 128GB M.2 NVMe SSD, this 15" touch terminal is designed to handle demanding point-of-sale operations effortlessly.

Featuring a 15-inch bezel-free projected capacitive (PCAP) touchscreen with 350-nit brightness, the PP-9735 offers clear visuals and responsive touch interactions, ideal for high-traffic retail, hospitality, and service environments. Its dual-hinge XPPC stand allows for flexible adjustment, making it suitable for desktop, pole, or wall mounting.

Engineered for durability and convenience, the FEC PP-9735 also supports easy maintenance with accessible memory, SSD, and motherboard components. It shares peripherals with the XPOS series, supporting seamless integration and reducing operational costs. Built with an environmentally friendly, compact design and complete with Windows 10 Enterprise LTSC 2021, this POS terminal delivers on both performance and sustainability.


Product Features

  • High-Performance CPU: Intel® Celeron® J6412 Processor (Elkhart Lake) with up to 3.00 GHz speed.
  • Display: 15" LED-backlit LCD, 1024x768 resolution with 350 nits brightness and true-flat PCAP touch.
  • Storage & Memory: 8GB DDR4 RAM (expandable up to 32GB), 128GB M.2 NVMe SSD.
  • Flexible Mounting Options: Desktop, pole, or wall-mountable with VESA 100 x 100 support.
  • Versatile Connectivity: Includes USB 2.0/3.0, RS232, RJ11, RJ45 GigaLAN, and Smart I/O expansion.
  • Eco-Friendly & Compact: Reduced packaging for environmental sustainability and easier logistics.
  • User-Centric Design: Dual-hinge stand for adjustable angle and height to improve ergonomics.
  • Optional Add-ons: Supports optional 2MP camera, smart card reader, and multiple peripheral expansions.
  • OS Support: Pre-installed with Windows 10 Enterprise LTSC 2021; supports Linux and Windows 11 IoT (Q3 2023).
  • TPM 2.0 Security: Built-in Intel® PTT for trusted platform module functionality.


Product Specifications

Specification

Details

Model

FEC PP-9735

Processor

Intel Celeron J6412 (1.5M Cache, up to 3.00GHz)

Display

15" TFT LCD, 1024 x 768, 350 nits, LED backlit

Touchscreen

True-flat PCAP (Bezel-free)

Memory

8GB DDR4 RAM (upgradable to 32GB)

Storage

128GB M.2 NVMe SSD

Ports

4 x USB (3 x USB 2.0, 1 x USB 3.0), 2 x COM RS232, 1 x RJ11 (12V/24V), 1 x RJ45 GigaLAN, 1 x Video Port, 1 x DC-In

Expansion Options

Universal I/O: PUSB 12V/24V, RJ45 COM, 2 x USB 2.0

Operating System

Windows 10 Enterprise LTSC 2021 (Linux & Win 11 IoT optional)

Speakers

2 x 2W internal speakers

Stand

XPPC Dual-Hinge Gen3

Camera (Optional)

2MP front-facing

Power Supply

130W External Adapter (20V)

Certifications

FCC, CE Class B

Temperature Range

0°C to 40°C operating, -20°C to 60°C storage

Dimensions (WxHxD)

342mm x 310mm x 342mm

Weight

Net: 3.42 kg, Gross: 6.2 kg

Material

Aluminium Die-Casting + Plastic

Colour

Galaxy Grey + Silver

Features

Colour:
  • Grey
  • Silver
Display:
  • Single
Interface:
  • Ethernet
  • RJ11
  • Serial
  • USB
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Intel Celeron
Ram:
  • 8 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15 inch
Storage Capacity:
  • 128GB
Storage Type:
  • SSD
Touch Technology:
Capacitative
Warranty:
2 Years
Manufacturer
:
FEC

Attachments

Brochure (FEC_PP-9735-Brochure.pdf, 1,627 Kb) [Download]
