Description

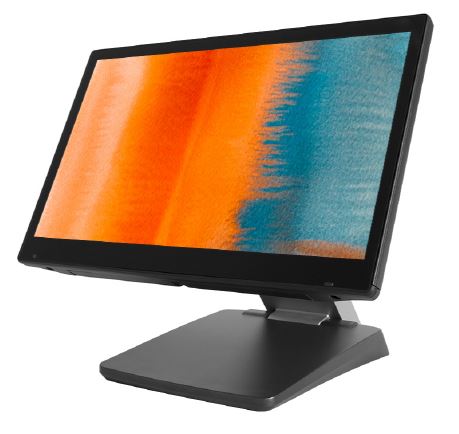

The FEC PP-9735W brings sleek industrial design and powerful performance together in a space-saving POS terminal ideal for modern retail and hospitality applications. Powered by the Intel Celeron J6412 Quad-Core processor, 8GB DDR4 memory, and a high-speed 128GB M.2 NVMe SSD, this system ensures reliability and fast performance for transactional and interactive environments.
The 15.6-inch Full HD bezel-free PCAP touch display provides a crisp, intuitive interface, while the dual-hinge stand design allows flexible installation—desktop, wall-mounted, or pole-mounted. Designed for easy maintenance, the modular build makes access to memory, SSD, and motherboard quick and simple.
With advanced connectivity, optional peripherals, and support for shared devices across the FEC XPPC platform, the PP-9735W is built for scalable, long-term deployment. It includes Windows 10 IoT Enterprise LTSC 2021, making it a dependable, secure system for POS, self-service, and information terminal use.
Product Features
- Intel Celeron J6412 Quad-Core CPU, up to 3.00 GHz
- 8GB DDR4 RAM, expandable up to 32GB
- 128GB M.2 NVMe SSD for high-speed data access
- 15.6" Full HD 1920 x 1080 Display with 300-nits brightness
- Projected Capacitive Touch (PCAP), bezel-free screen
- XPPC Gen3 Dual-Hinge Stand for adjustable viewing angles
- VESA mountable (100 x 100 mm) for desktop, wall, or pole setups
- Shared peripheral compatibility with FEC XPOS
- Fanless design for silent, dust-free operation
- Windows 10 IoT Enterprise LTSC 2021 pre-installed
- Optional 2MP front camera, Wi-Fi/Bluetooth, and smart I/O expansion
Product Specifications
Specification | Details |
Model | FEC PP-9735W |
Part Number | TTFIPP9735W001 |
Processor | Intel Celeron J6412, Quad-Core, up to 3.00 GHz |
Memory | 8GB DDR4 (2 x SODIMM, max 32GB) |
Storage | 128GB M.2 NVMe SSD |
Display | 15.6" TFT LCD, 1920 x 1080, 300 nits brightness |
Touch Technology | True-Flat Projected Capacitive (PCAP), bezel-free |
Graphics | Integrated Intel UHD Graphics |
Operating System | Windows 10 IoT Enterprise LTSC 2021 |
I/O Ports | 2 x RJ45 (COM RS232), 3 x USB 2.0, 1 x USB 3.0, 1 x GigaLAN, 1 x Video, 1 x RJ11, 1 x Smart DD, 1 x 12V DC-out |
Speaker | 2 x 2W internal |
Camera | Optional 2MP Front Camera |
Connectivity Options | Optional Wi-Fi & Bluetooth (via M.2 E Key) |
Mounting Options | VESA 100 x 100 mm, XPPC dual-hinge stand |
Chassis | Aluminium die-casting + plastic, Galaxy Grey + Silver |
Power Supply | 130W External Power Adapter (20V) |
Dimensions (W x H x D) | 368mm x 272.5mm x 315mm |
Weight | Net: 3.92 kg, Gross: 6.7 kg |
Operating Temp | 0°C ~ 40°C |
Storage Temp | -20°C ~ 60°C |
Certifications | FCC, CE Class B |
Warranty | 3 Years Standard |
