FEC PP-9745W I3-12100 8/256 15.6P STD CAM/WIFI W10

Black, Single, WiFi, Ethernet, Bluetooth, USB, No, Windows, No, Core i3, 8 GB, No, 15.6 inch, 256GB, SSD, All-in-one POS, Capacitative, 3 Years
$3,169.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTFIPP9745W003
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

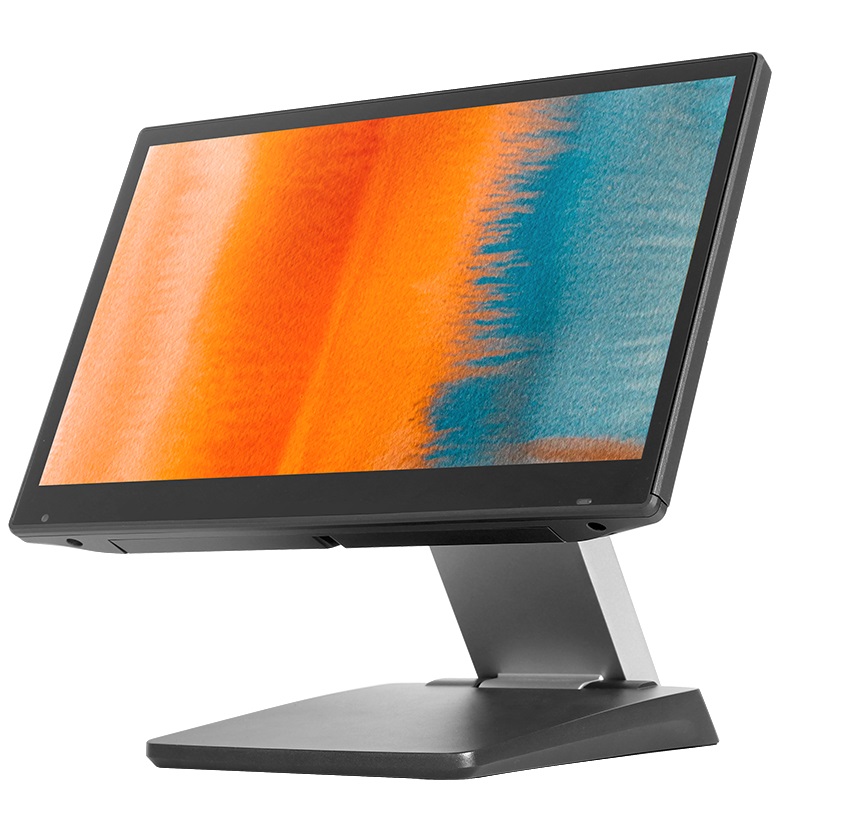

Designed for modern retail and hospitality environments, the FEC PP-9745W POS Terminal delivers robust performance, sleek aesthetics, and flexible deployment options. Powered by a 12th Gen Intel Core i3-12100TE processor, this 15.6-inch Full HD touchscreen POS terminal offers fast processing speeds, superior display clarity, and seamless multitasking capabilities. With a dual-hinge design, integrated Wi-Fi, built-in camera, and eco-friendly construction, the PP-9745W enhances the customer experience while supporting effortless maintenance and expansion. Suitable for countertop, pole, or wall mounting, this unit adapts to your business environment with ease.


Product Features

  • Powerful 12th Gen Intel® Core™ i3-12100TE CPU for smooth POS operations
  • 15.6" Full HD (1920x1080) display with 300 nits brightness and projected capacitive touch
  • Bezel-free, dual-hinge design for slim profile and ergonomic adjustment
  • 8GB DDR4 RAM and 256GB PCIe M.2 SSD for high-speed performance
  • Built-in Wi-Fi and Bluetooth module for reliable wireless connectivity
  • 2MP integrated front camera ideal for facial recognition applications
  • Multiple I/O ports including USB, RJ45, RJ11, Smart DP, and PUSB 24V
  • Eco-friendly packaging and design for reduced carbon footprint
  • Supports various mounting options: desktop, pole, or wall-mounted
  • Runs on Windows 10 IoT Enterprise 2021 LTSC (64-bit) for business-grade reliability


Product Specifications

Specification

Details

Model

FEC PP-9745W (Galaxy Grey with Silver Trim)

Processor

Intel® Core™ i3-12100TE (12M Cache, up to 4.0GHz)

Memory

8GB DDR4 (expandable up to 32GB)

Storage

256GB PCIe M.2 SSD

Display

15.6” TFT LCD, 1920x1080 resolution, 300 nits brightness

Touchscreen

Projective Capacitive Touch (Bezel-free)

Camera

2MP Front Camera

Operating System

Windows 10 IoT Enterprise 2021 LTSC (64-bit, English)

Connectivity

Wi-Fi + Bluetooth, 1 x RJ45 LAN, 2 x COM, 1 x Video Port

USB Ports

3 x USB 3.0, 2 x USB 2.0 (1 reserved for Add-on)

Audio

2 x 2W Internal Speakers

Mounting Options

Desktop, Pole, Wall Mount (VESA 100 x 100 mm)

Power Adapter

130W External (20V)

Certifications

FCC/CE Class B, TPM 2.0, Intel PTT

Operating Temp

0°C to 40°C

Storage Temp

-20°C to 60°C

Dimensions (W x H x D)

368mm x 272.5mm x 315mm

Weight

Net: 3.9 kg / Gross: 4.9 kg

Features

Colour:
  • Black
Display:
  • Single
Interface:
  • Bluetooth
  • Ethernet
  • USB
  • WiFi
Magstripe Option:
  • No
OS Compatability:
  • Windows
Printer:
  • No
Processor:
  • Core i3
Ram:
  • 8 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 256GB
Storage Type:
  • SSD
Terminal Type:
  • All-in-one POS
Touch Technology:
Capacitative
Warranty:
3 Years

Attachments

Brochure (FEC_PP-9745W-P.pdf, 1,738 Kb) [Download]
