Description

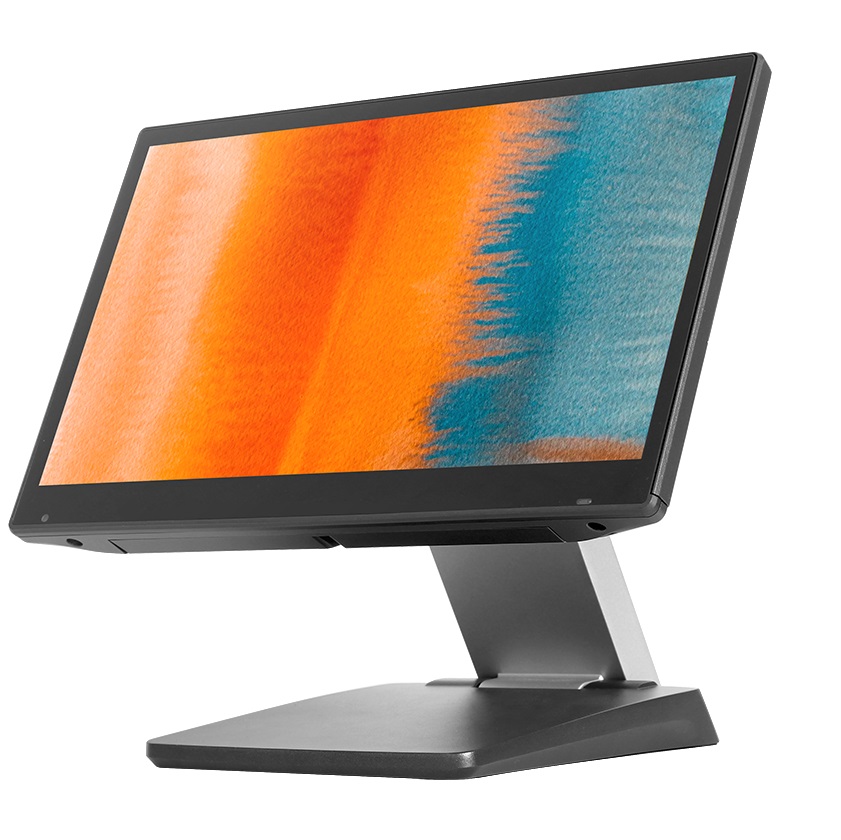

Upgrade your point-of-sale experience with the FEC PP-9745W, a slim, high-performance 15.6" POS terminal designed for reliability and flexibility in modern retail and hospitality environments. Featuring a powerful Intel 12th Gen i3-12100TE processor, fast 128GB PCIe M.2 SSD, and 8GB DDR4 memory, this all-in-one terminal ensures smooth operation, multitasking, and fast transaction processing.
The PP-9745W boasts a full HD 1920x1080 LED backlit display with projective capacitive touch technology and an anti-glare finish for comfortable and accurate operation. Built with an adjustable dual-hinge stand, it adapts effortlessly to desktop, wall, or pole-mounted setups, while eco-conscious design reduces size and packaging for efficient transport.
Ideal for demanding retail settings, this system comes equipped with Wi-Fi and Bluetooth connectivity, optional second display support, ambient light sensor, and a wide range of I/O ports to support EFTPOS devices, scanners, and other peripherals. Easy-access SSD and RAM bays make maintenance simple, while the hidden adapter and optional customised I/O deliver added versatility.
Product Features
- Powered by Intel® Core™ i3-12100TE 12th Gen CPU, up to 4.00 GHz
- 15.6” Full HD 1920x1080 TFT LCD display with 300 nits brightness
- Projective Capacitive (PCAP) touch technology with bezel-free glass
- 8GB DDR4 RAM and 128GB PCIe M.2 SSD for fast performance
- Dual-hinge Gen 3 stand for adjustable viewing angle and VESA mountable
- Integrated Wi-Fi + Bluetooth module for wireless connectivity
- Compact, eco-friendly design with reduced packaging
- Multiple I/O ports including USB 3.0, RJ45, Smart DP, and RJ11
- Optional second display and EFT/scanner modules supported
- Runs Windows 11 IoT Enterprise 2024 LTSC for stability and security
Product Specifications
Specification | Details |
Specification | Details |
Processor | Intel® Core™ i3-12100TE (12MB Cache, 4.0GHz) |
Memory | 8GB DDR4 (Max 32GB, 1 x SoDIMM) |
Storage | 128GB M.2 PCIe SSD |
Display | 15.6" FHD 1920 x 1080, 300 nits brightness |
Touch Technology | Projective Capacitive (PCAP), True-flat |
Wireless | Wi-Fi 802.11ac + Bluetooth |
Ports | 3 x USB 3.0, 2 x USB 2.0, 3 x COM, LAN, RJ11 |
Mounting Options | Desktop, VESA 100x100, Wall or Pole Mount |
Speaker | 2 x 2W Internal Speakers |
Power Adapter | 130W External (20V) |
Operating System | Windows 11 IoT Enterprise 2024 LTSC (64-bit) |
Dimensions | 368mm x 272.5mm x 315mm |
Weight | Net: 3.9kg / Gross: 4.9kg |
Certification | FCC / CE Class B, TPM 2.0, Intel PTT |
Features
- Grey
- Single
- Bluetooth
- RJ11
- USB
- WiFi
- No
- Windows
- No
- Core i3
- 8 GB
- No
- 15.6 inch
- 128GB
- SSD
- All-in-one POS
