Description

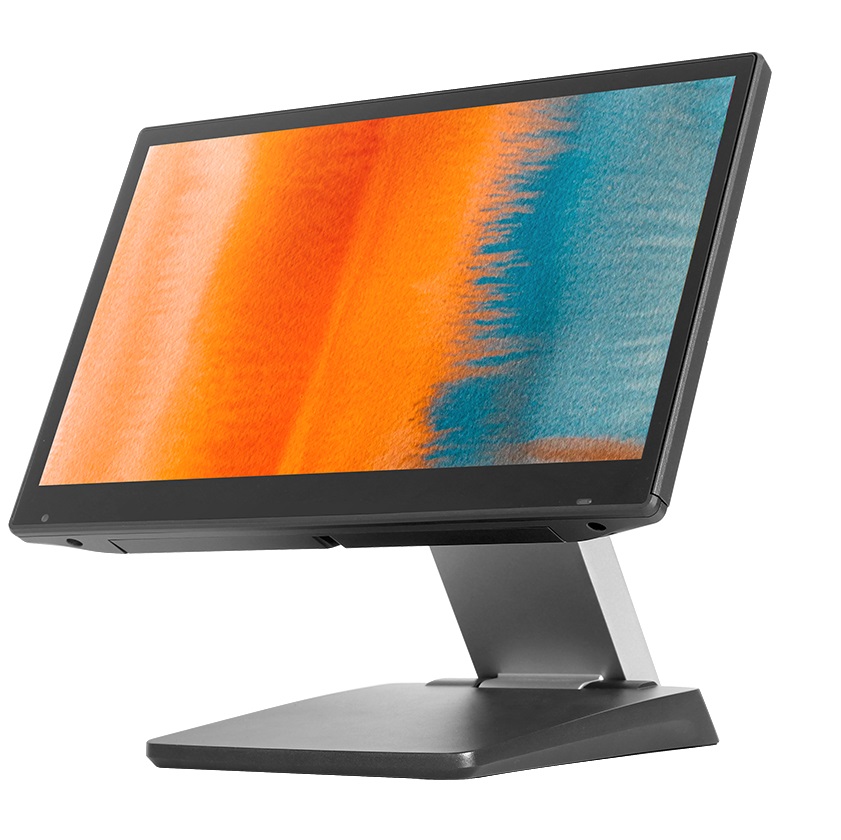

The FEC PP-9745W POS Terminal combines cutting-edge performance with a sleek and versatile design, making it the ideal solution for retail, hospitality, and enterprise environments in Australia. Built with Intel’s 12th Gen i3-12100TE processor, 8GB DDR4 memory, and a fast 128GB PCIe M.2 SSD, this POS system delivers exceptional speed, reliability, and future-ready scalability.
Its 15.6” bezel-free, Full HD (1920 x 1080) LCD display with projective capacitive touch ensures smooth and accurate operation, while the dual-hinge Gen 3 XPPC stand allows flexible angle and height adjustment for ultimate ergonomics. With VESA mounting compatibility, it can be desktop, pole, or wall-mounted.
The PP-9745W also integrates WiFi + Bluetooth connectivity, multiple I/O ports, and optional peripherals such as EFT, scanners, and secondary customer displays. An ambient light sensor automatically adjusts screen brightness for optimal visibility. Built with eco-friendly packaging, easy maintenance access, and a robust aluminium die-cast body, it’s engineered for demanding POS environments.
Product Features
- Intel 12th Gen i3-12100TE processor with up to 4.0 GHz performance
- 8GB DDR4 RAM, expandable to 32GB
- 128GB PCIe M.2 SSD for fast storage and quick boot times
- 15.6” Full HD (1920 x 1080) LCD display with 300 nits brightness
- Bezel-free projective capacitive touch screen for accurate input
- Dual-hinge Gen 3 XPPC stand for adjustable angle and height
- WiFi + Bluetooth module for seamless connectivity
- Multiple I/O ports (USB 3.0, USB 2.0, RJ45, Smart I/O, Video, RJ11)
- Optional peripherals support – customer display, EFT, scanners
- Ambient light sensor for automatic brightness adjustment
- Lightweight (3.9 kg) aluminium die-cast body in Galaxy Grey finish
- Windows 10 IoT Enterprise 2021 LTSC (64-bit) preinstalled
Product Specifications
Specification | Details |
CPU | Intel Core i3-12100TE, 12M Cache, up to 4.00 GHz |
Chipset | Intel H610 |
Memory | 8GB DDR4 (expandable to 32GB, 1 x SoDIMM) |
Storage | 128GB PCIe M.2 SSD (1x M.2 M Key Gen III) |
Display | 15.6” TFT LCD, 1920 x 1080, 300 nits brightness |
Touch Technology | Bezel-free Projective Capacitive Touch |
Graphics Output | Smart DP for secondary display (optional) |
I/O Ports | 3 x USB 3.0, 2 x USB 2.0 (expandable), 2 x RJ45 (COM), 1 x RJ45 LAN, 1 x Video Port, 1 x RJ11 (12V/24V), Smart I/O options |
Connectivity | WiFi + Bluetooth module (M.2 E Key 802.11ac + BT4) |
Audio | 2 x 2W internal speakers |
Camera | Optional 2MP front camera |
OS | Windows 10 IoT Enterprise 2021 LTSC (64-bit, English) |
Power Supply | 20V/130W external adapter (optional 90W) |
Stand | XPPC Stand – Dual hinge Gen 3 |
Mounting Options | VESA 100 x 100 |
Dimensions (W x H x D) | 368 x 272.5 x 315 mm |
Weight | Net: 3.9 kg / Gross: 4.9 kg |
Material/Finish | Aluminium die-casting + plastic, Galaxy Grey with silver trim |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -20°C ~ 60°C |
Certification | FCC / CE Class B |
MTBF | 30,000 hours |
Features
Colour:
- Grey
- Silver
Display:
- Single
Interface:
- Bluetooth
- Ethernet
- USB
- WiFi
Magstripe Option:
- No
OS Compatability:
- Windows
Printer:
- No
Processor:
- Core i3
Ram:
- 8 GB
Scanner Capability:
- No
Screen Size Font:
- 15.6 inch
Storage Capacity:
- 128GB
Storage Type:
- SSD
Terminal Type:
- POS PC
Touch Technology:
Capacitative
Warranty:
3 Years
