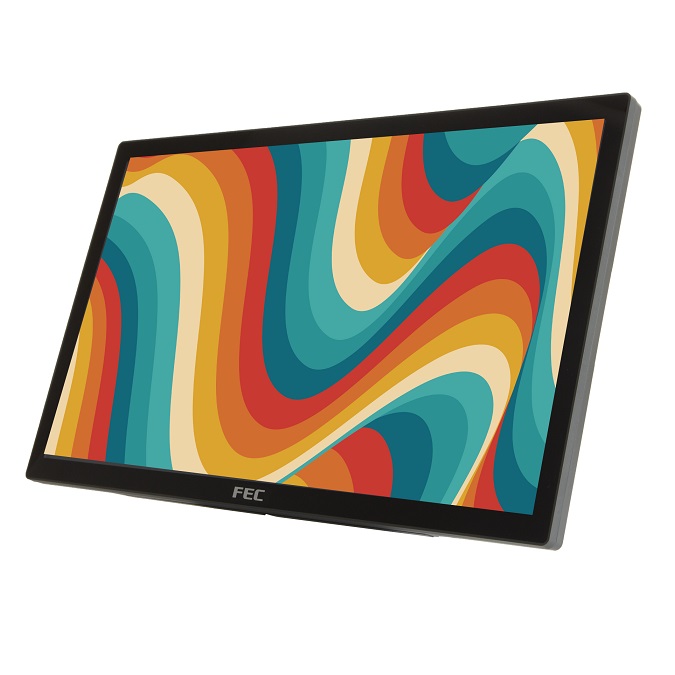

FEC TOUCH MONITOR LD-9022W 22/PCAP NO/STAND BLK

16:9, Yes, VGA, HDMI, RJ11, USB, No, 1920x 1080, LED, IPS, 60Hz, 22", Anti-glare, Yes, 2 Years, FEC
$859.00
For Special & Volume Pricing - Call +61 2 9090 4610
TMFILD9022W001
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

The FEC LD-9022W is a 22-inch Full HD PCAP touchscreen monitor engineered for commercial, retail, and industrial applications. With a 1920 x 1080 resolution, 250-nit brightness, and True-Flat Projected Capacitive (PCAP) touch technology, this monitor delivers accurate and responsive input with support for hovering touch through up to 3mm of glass.

Designed for flexibility, it features a VESA 100 x 100mm mount, allowing easy integration into kiosks, wall mounts, arms, or pole setups. The unit includes a 12V/48W power adapter, HDMI and USB cables, and 2 x 2W built-in speakers. With a sleek Galaxy Grey aluminium and plastic construction, it's a professional-grade solution with a 2-year warranty.

Ideal for POS systems, interactive displays, or digital signage, the LD-9022W ensures consistent performance with a 70,000-hour MTBF rating and a durable design suited for demanding environments.

Product Features

  • 22" Full HD (1920 x 1080) TFT display with LED backlight
  • True-Flat PCAP Touchscreen for fast, precise touch input
  • Optional hovering touch support through up to 3mm of glass
  • 250 nits brightness for clear visuals in most lighting conditions
  • 2 x 2W internal speakers for integrated audio playback
  • VESA 100 x 100mm mounting – compatible with arms, poles & wall mounts
  • Multiple connectivity options including HDMI, VGA, USB-B, RJ11 & DC-in
  • Durable die-cast aluminium + plastic build in Galaxy Grey finish
  • Commercial-grade reliability with 70,000-hour MTBF
  • Supplied with HDMI cable, USB-A to B cable, and 48W power adapter
  • 2-Year Manufacturer Warranty


Product Specifications

Specification

Details

Display Size

21.5" TFT

Resolution

1920 x 1080 (Full HD)

Brightness

250 nits

Touch Technology

True-Flat Projected Capacitive (PCAP)

Hover Touch Support

Yes (up to 3mm glass, optional)

Surface Coating

Anti-Glare (AG)

Speakers

2 x 2W Internal

Mounting Options

VESA 100 x 100 mm (No stand included)

Connectivity

HDMI, VGA, USB 2.0 Type B, DC-in 12V, Line-in, RJ11

Build Material

Aluminium Die-Cast + Plastic

Colour

Galaxy Grey

Operating Temp

0°C to 40°C

Storage Temp

-20°C to 60°C

MTBF

70,000 hours

Certifications

FCC / CE Class B

Power Supply

12V / 48W External Power Adapter

Dimensions (W x H x D)

512.3 x 308.92 x 39.22 mm

Net Weight

3.5 kg

Gross Weight

4.5 kg

Included Accessories

HDMI Cable (1.8m), USB-A to B Cable (1.8m), Power Adapter

Warranty

2 Years (Manufacturer Warranty)

Features

Aspect Ratio:
  • 16:9
Built-in Speaker:
  • Yes
Connectivity:
  • HDMI
  • RJ11
  • USB
  • VGA
Curved Screen:
  • No
Display Resolution:
  • 1920x 1080
Display Technology:
  • LED
Panel:
  • IPS
Refresh Rate:
  • 60Hz
Screen Size:
  • 22"
Screen Type:
  • Anti-glare
Touch Screen:
  • Yes
Warranty:
2 Years
Manufacturer
:
FEC

Attachments

Brochure (FEC_LD-9022W.pdf, 1,421 Kb) [Download]
