Description

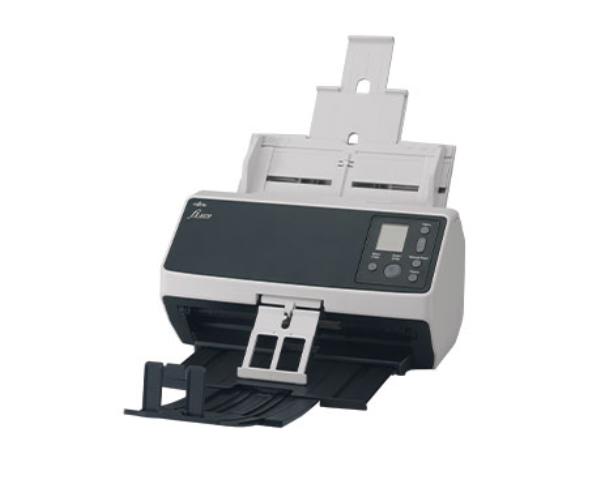

Fujitsu FI-8170 Document Scanner (A4, Duplex) 70ppm, 100 Sheet ADF, 600 Dpi , LAN / USB
The fi-8170 supports multiple operation modes according to users’ environments, may that require sharing among teams with PC-less colleagues, or LAN connectivity and USB 3.2.
| Product Name | fi-8170 | |
|---|---|---|
| Scanner Type | Automatic Document Feeder (ADF) / Manual Feed, Duplex WORKGROUP Scanner |
|
| ADF Capacity | 100 x A4 80 g/m² 100 x Letter 20 lb |
|
| Scanning Colour Modes | Colour, Greyscale, Monochrome Automatic (Colour / Greyscale / Monochrome detection) |
|
| Optical Resolution | 600 dpi | |
| Image Sensor Type | Contact Image Sensor (CIS) x 2 | |
| Light Source | RGB LED (Front and Back) | |
| Scanning Speed (A4 Portrait) | Simplex: 70 ppm Duplex: 140 ipm |
|
| Media Support | Standard Sizes | A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Legal and Custom Size. |
| Custom Sizes | Minimum: 48 x 50 mm (1.9 x 2.0") Maximum: 216 x 355.6 mm A4 Portrait (210 x 297 mm), Legal (8.5 x 14") Maximum paper feeding width: 240 mm (9.5") |
|
| Manual Feed Paper Sizes | Folded A3, B4, Double Letter and all document sizes listed above. | |
| Paper Sizes with optional Carrier Sheet | A3, B4, Double Letter, Photographs and all document sizes listed above. | |
| Paper Weight | 20 g/m² - 465 g/m² | |
| Long Page Scanning | 6,096 mm (240 ") | |
| Card Scanning | Card with the size specified in ISO7810 (85.6 mm x 53.98 mm) with a maximum thickness of 1.4 mm |
|
| Special Media Types | Passport scanning (ISO/IEC 7810 ID-3 compliant passport with thickness 7 mm or less when opened) |
|
| Multifeed Detection | YES | |
| Image Processing Functions | Advanced DTC, Automatic Colour Detection, Automatic Profile Selection, Automatic Rotation, Background Pattern Removal, Blank Page Detection, Character Extraction, Cropping, Custom Rotation, De-Screen, De-Skew, Dither, Dropout Colour (None / Red / Green / Blue / White / Saturation / Custom), Dynamic Threshold (iDTC), Edge Fill, Edge Repair, Error Diffusion, Front Back Merging, Halftone, Hole Punch Removal, Image Emphasis, Index Tab Cropping, Multi Image Output, SDTC, Split Image, sRGB Output, Static Threshold, Vertical Streaks Reduction. | |
| Output Filetypes | PDF, Searchable PDF, PDF/A, TIFF, Multi-Page TIFF, Bitmap, JPEG, JPEG2000, PNG, Word, Excel, PowerPoint (Varies by application) |
|
| Paper Separation Method | Brake Roller | |
| Expected Daily Volume | 10,000 | |
| Local Interface | USB Port | USB 3.2 Gen 1/ 3.0 / 2.0 / 1.1 (Type-B Connector) |
| Ethernet Interface | Ethernet Specification | 10BASE-T/100BASE-TX/1000BASE-T |
| Ethernet Port Connector Type | RJ-45 | |
| Power Source | Mains AC | |
| Power Requirements | 100V - 240V AC ±10 % (50 / 60 Hz) | |
| Power Consumption | Operating Mode | 28 W or less 17 W (Eco Mode) |
| Sleep Mode | 2.0 W or less (LAN) *When the EEE function (Power saving Ethernet) of the AP or router is enabled 1.4 W or less (USB) |
|
| Standby Mode | 0.2 W or less | |
| Operating Environment | Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Operating Humidity Range | 15% - 80% (non-condensing) | |
| Device Colour | Black / Light Grey | |
| Device Dimensions (Height x Width x Depth) | 300 mm x 170 mm x 163 mm 11.8" x 6.7" x 6.4" |
|
| Device Weight (approx) | 4.0 kg | |
| Environmental & Regulatory Compliance | ENERGY STAR® / RoHS | |
| Recommended Windows Driver | PaperStream IP (TWAIN) PaperStream IP (TWAIN x64) for 64-bit applications PaperStream IP (ISIS) |
|
| Other Drivers Available | Image Scanner Driver for Linux (32 bit / 64 bit) [SANE] Image Scanner Driver for macOS |
|
| Software | PaperStream Capture PaperStream ClickScan PaperStream NX Manager (available as download) Software Operation Panel Error Recovery Guide Scanner Central Admin fi Series Online Update ABBYY FineReader for ScanSnap (available as download) |
|
| 1 Year Standard Warranty | Advance Exchange Next Business Day. Valid for 1 year from date of scanner purchase. Includes replacement of defective product and two-way shipping costs. Included in the price of a new scanner product. |
|
