Goodson GC-34 Cash Drawer


$199.00
(Inc GST)
For Special & Volume Pricing - Call 0291 919 694
GC34 / GC34BL / GC34-12 / GC34BL-12
+

Description

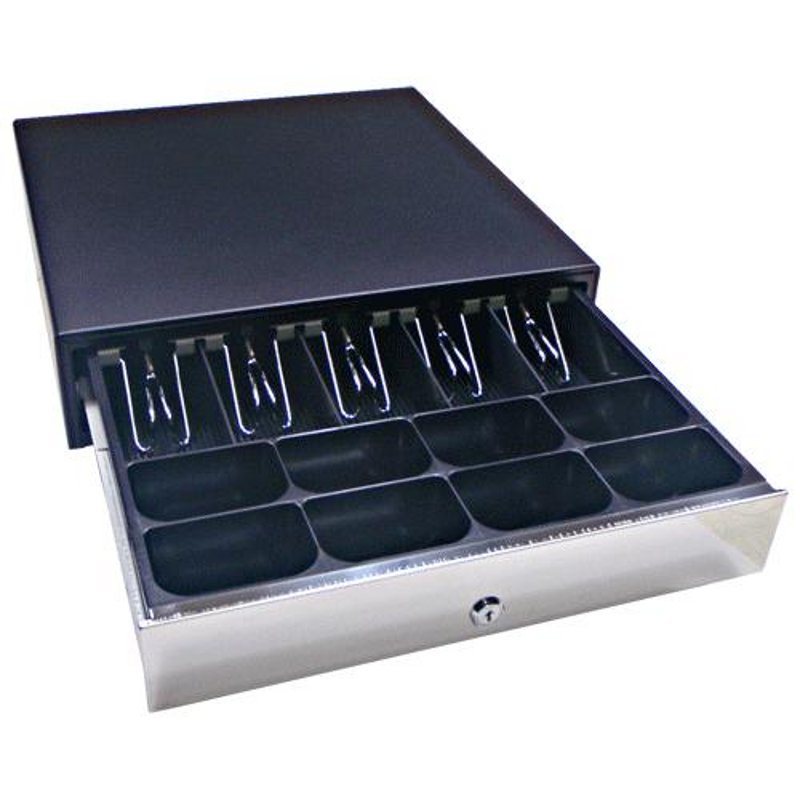

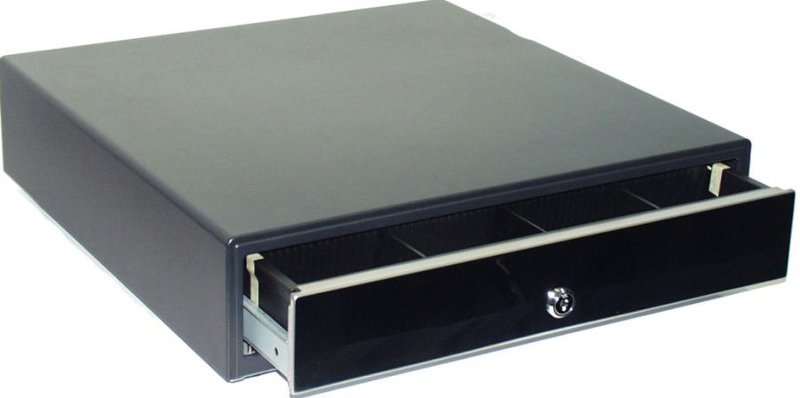

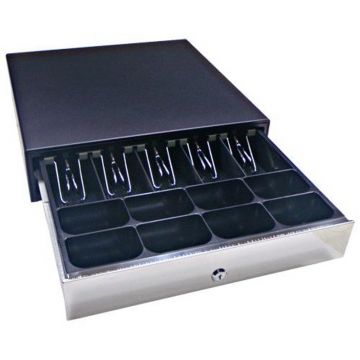

The GOODSON GC-34 Cash Drawer is a medium profile, cash drawer with high reliability and durability. It is ruggedly designed with heavy gauge steel construction using Nylon Rollers and a strong rugged slide rail for smooth opening and closing. The Goodson GC-34 Cash Drawer is a heavy duty cash drawer, 8 Coin/5 Note fixed coin section drawer insert.  The Goodson GC-34 Cash Drawer is a heavy duty cash drawer, has a 3 position key lock, emergency opening, and a modular connector (RJ12) for connection to a POS printer.

Main Features:
  • Easy to Clean Design
  • Reinforced Heavy Gauge Steel Construction
  • Smooth Drawer Slide Operation
  • Wobble Free Drawer operation
  • Scalloped Coin compartments, tapered note trays
  • Three Position Lock
  • RJ12 Modular solenoid kick out connector
  • Nylon Rollers

Specifications



Characteristic

GC34

GC34BL

GC34-12

GC34BL-12

Dimensions

420mm(W) x 415mm(D) x 115mm(H)

Weight

9.1 kg

MTBF

>1,000,000 open/closes

Colour

Ivory

Black

Ivory

Black

Input to Solenoid

24 V

24 V

12 V

12 V

Max Input Voltage

26.4 V

26.4 V

26.4 V

26.4 V

Pulse Width

100-200 msec

Current Consumption

1 Amp @
24 V DC

1 Amp @
24 V DC

0.75 Amp @
12 V DC

0.75 Amp @
12 V DC

Input Impedance

Not less than
24 ohms

Not less than
24 ohms

Not less than
16 ohms

Not less than
16 ohms

Pulse Duty Cycle

10% Max

Activation Current

0.9 Amp Max

0.9 Amp Max

0.9 Amp Max

0.9 Amp Max

Cash insert

Removable Tray

Note Compartments

5 tapered with metal clips

Coin Compartments

8 scalloped for ease of use
