Description

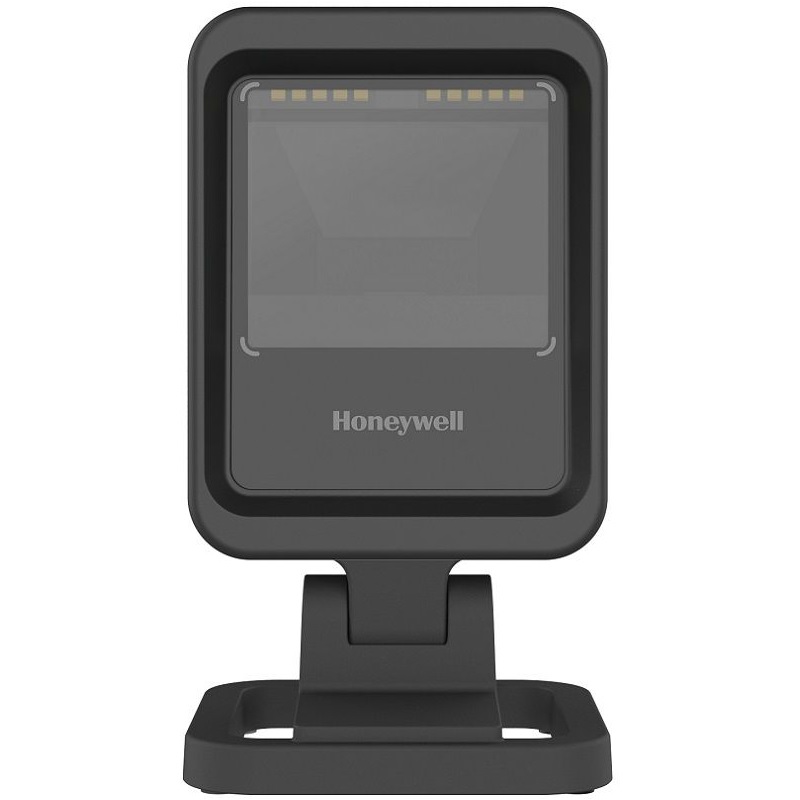

The Honeywell Genesis XP 7680g is a high-performance hands-free 2D presentation scanner designed to elevate productivity and enhance the customer experience at the point of sale. Featuring a 1-megapixel imager and powerful motion tolerance, it delivers fast and accurate scans on both printed and digital barcodes – even if they’re poorly printed or damaged.
Built with a compact, modern design, the Genesis XP offers a minimal footprint and is equipped with a 360° tri-colour LED ring that provides intuitive visual feedback. It supports future-proof adaptability through a modular stand, cable management, and optional smart placement accessories including POS, wall, and kiosk mounts. Whether in retail, healthcare, hospitality, or light manufacturing, the 7680g adapts seamlessly to changing workflows and environments.
Product Features
-
Powerful XP Scanning Technology – Captures 1D, 2D, PDF, DotCode, and Digimarc barcodes with exceptional speed and accuracy.
-
20% Faster Performance – Enhanced scanning speed and larger scanning area improve efficiency at checkout.
-
Hands-Free Presentation Mode – Ideal for high-volume scanning with minimal user interaction.
-
Flexible Mounting Options – Supports stand, POS mount, wall mount, and kiosk integration.
-
360° Tri-Colour LED Ring – Offers user-friendly visual feedback and accurate targeting.
-
Future-Ready Design – Built-in auxiliary port and field-upgradeable firmware ensure long-term scalability.
-
Rugged Durability – Withstands 1.5 m drops and 1,000 tumbles; sealed to IP52 for dust and splash protection.
Product Specifications
Scan Technology | Area Imager, 1MP (1280 x 800 pixel array) |
Symbologies | 1D, 2D, PDF417, DotCode, Digimarc |
Interfaces | USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485) |
Motion Tolerance | Up to 400 cm/s (13 mil UPC) |
Scan Angle | 48° (H) x 30° (V) |
Print Contrast | 20% minimum reflectance difference |
Drop Resistance | 1.5 m / 5 ft |
Environmental Seal | IP52 |
Weight | 340 g |
Power | 5V DC, 2.5W (500 mA) |
Features
- 52
- High Density
- Handsfree
- USB
- Black
