Description

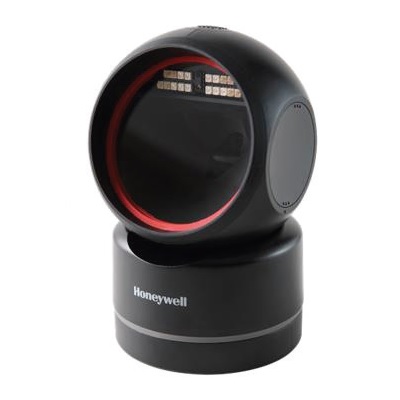

Designed for modern retail environments, the Honeywell Orbit HF680 USB 2D hands-free barcode scanner combines exceptional performance with striking aesthetics and cost-effective pricing. Ideal for high-traffic POS counters, this presentation-style area imager offers lightning-fast scanning of both 1D and 2D barcodes, including digital and damaged codes.
Powered by a megapixel sensor and a 1GHz processor, the Orbit HF680 delivers rapid, accurate reads with minimal effort—keeping queues short and checkout operations efficient. Its compact, stylish housing suits any retail counter, while the USB interface ensures universal compatibility with existing POS systems.
Equipped with an adjustable scanning head, the Orbit HF680 can be comfortably tilted for scanning larger items or operated hands-free for swift item swiping. With automatic lighting control and recessed LEDs for customer comfort, it’s a powerful, stylish, and unobtrusive solution for retail, pharmacy, and general merchandise environments.
Product Features
-
USB interface for simple plug-and-play connectivity
-
High-speed megapixel sensor with 1GHz processor
-
Reads all common 1D and 2D barcodes, including digital & damaged codes
-
Hands-free and handheld operation for flexibility
-
Adjustable head tilt for scanning larger or awkward items
-
Low-profile recessed lighting avoids eye strain and distraction
-
Automatically turns off illumination when not in use
-
Compact, modern design – fits any checkout or kiosk setup
-
Honeywell EZConfig utility for rapid setup
-
OPOS/JPOS support ensures compatibility with major POS platforms
-
3-year factory warranty
Product Specifications
Model | Honeywell Orbit HF680 |
Scanner Type | 2D Hands-Free Area-Imaging |
Sensor Resolution | 1280 × 800 pixels (Megapixel area imager) |
Scan Angle | Horizontal: 47° / Vertical: 30° |
Decode Capabilities | 1D, PDF417, 2D (QR, Data Matrix, Aztec, etc.) |
Motion Tolerance | Up to 2.5 m/s (for 13 mil UPC at optimal focus) |
Depth of Field | 0 – 300 mm (depending on barcode type and size) |
Minimum Resolution | 1D: 3 mil / 2D: 6.7 mil |
Print Contrast | 20% minimum reflective difference |
Interface | USB (HID, COM); RS-232 optional |
imensions (LxWxH) | 85 x 88 x 139 mm |
Weight | 278 g ±10 g |
Operating Temperature | -10°C to 40°C |
Storage Temperature | -40°C to 60°C |
Humidity | 0% to 95% RH, non-condensing |
Drop Resistance | Withstands drops from 1 metre |
Ambient Light Tolerance | 0 – 100,000 lux |
Warranty | 3-Year Factory Warranty |
