*Discontinued*

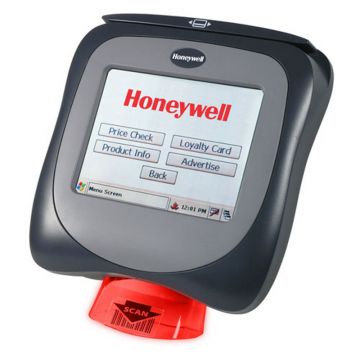

The Image Kiosk 8570 are designed to give customers instant self-access to information they need. Offering a range of functionality including price checking, item information look-up, and loyalty program administration, Image Kiosks give you the ability to assist and communicate with your customers effectively and efficiently – all without requiring them to seek out an employee.
Main Features :
- Small footprint, taking up minimum floor space
- Customer-Safe Scanning Technology
- High Performance Intel® XScale® processor
- Fast and intuitive bar code reading of all linear and 2D bar codes
- Finger-touch navigation
- Integrated Magnetic Stripe Reader (IK8570 only)
- Powerful integrated software tools for simplified configuration and application development
Attachments
Specifications
|
Processor |
Intel® XScale® PXA255 200 Mhz |
|
Operating Platform |
Microsoft Windows CE 5.0 |
|
Memory |
IK8570 Models 64Mb FlashROM x 64Mb SDRAM onboard memory |
|
Third Party Software |
MSM, ITScriptNet®, Connect |
|
Imager |
5100 Standard Range with LED aimer |
|
Depth of Field |
5.3 to 33.5 cm for 30 mil UPC |
|
MSR |
Track 1, 2 & 3 (IK8570 only) |
|
LCD Size |
5.7" 1/4 VGA |
|
LCD Resolution |
320 x 240 dot, 16 bit colour |
|
Touch |
Resistive, transparent, pressure-sensitive touch screen |
|
Touch Pad Resolution |
903 x 1238 ppi |
|
Interfaces |
RS-232 (4800 to 115.2 Kbps) |
|
PC USB (AC power adapter required) |
|
|
USB Hub Host (5V DC power pass-through support for USB 1.1 for up to 10 devices |
|
|
Ethernet 10/100 (IK8560EE & IK8570CE) |
|
|
WLAN 802.11b (IK8560CE & IK8570CE) |
|
|
Dimensions W x D x H |
221 x 185 x 81 mm |
|
Weight |
0.9 Kg |
|
Operating Temperature |
0ºC to +40ºC |
|
Humidity |
0 to 95% non-condensing |
