Honeywell MS9520 Voyager Series Single-Line Laser Scanner

MS9520-K / MS9520-R / MS9520-U / MS9520B-K / MS9520B-R / MS9520B
[Contact us for a price] Request a quote
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match


**Discontinued - Now Replacement by the - MS9540**

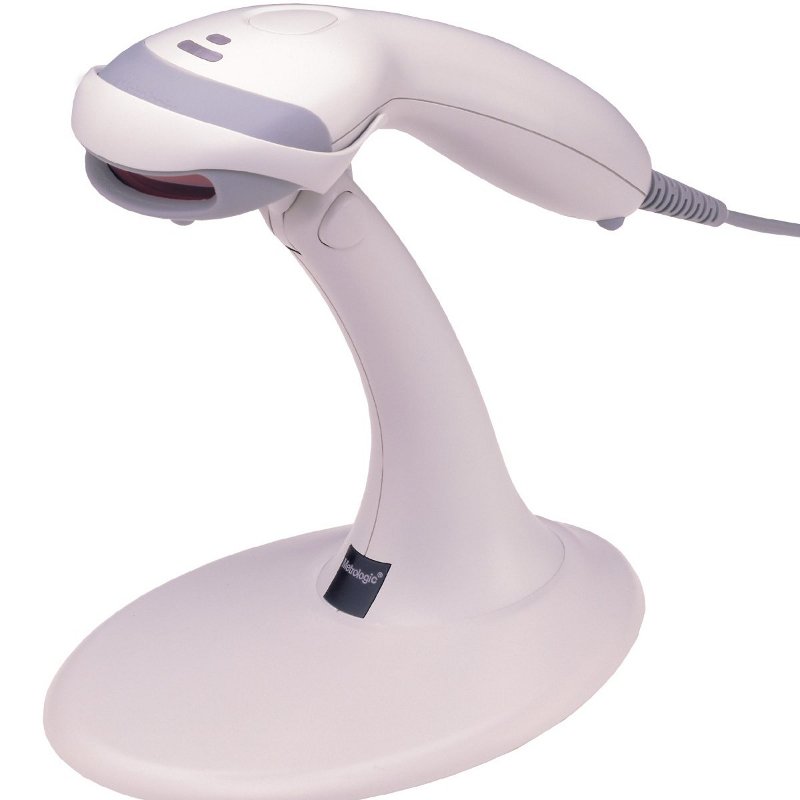

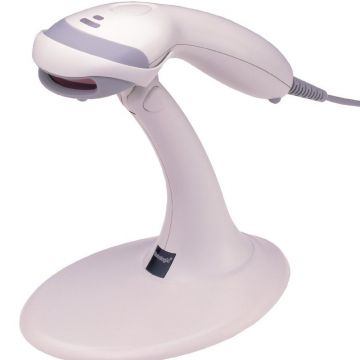

Honeywell’s  Voyager®  9520 hand-held,  single-line  laser scanner offer aggressive scanning of all standard bar codes. The Voyager 9520 hand-
held, single-line bar code scanner has united form with function in becoming the industry benchmark for value and performance.  This sleek scanner features patented automatic infrared activation and  decode all standard bar codes. For presentation scanning, Includes a stand with automatic in-stand detection technology.With a futuristic design and high-performance scanning technology,the MS9520 is clearly the most advanced auto-triggered scanner on the market today.Enabled for both In-stand and Out-of-stand operation, Voyager can be used as a hand-held and fixed presentation scanner.
Main Features:
  • Handheld Laser Scanner
  • Automatic trigger operation
  • RSS Decoding Capability
  • Supports most popular host interfaces
  • User-replaceable, single cable interface to host
  • Easy programming via software or barcodes in the manual
  • Sunrise 2005 compliant
  • Flash Memory for easy upgrades
  • Optional EAS deactivation Function

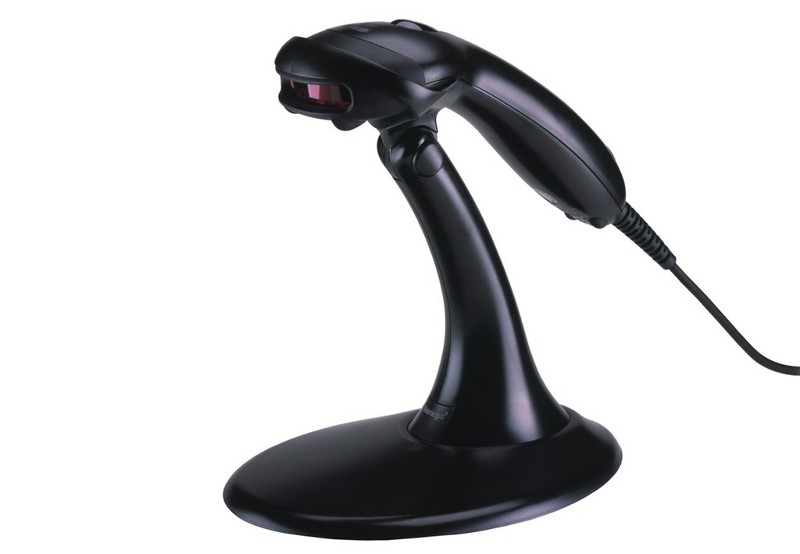

  • Available in Light Grey and Black


Honeywell 9520-Brochure (MS9520_Brochure.pdf, 255 Kb) [Download]


Scan pattern

Single Line

Scan Rate

72 +/- 2 Lines/sec

Width of Field

64 mm at face, 249 mm at 203 mm

Depth of Field

0 mm - 203 mm (0” - 8”) for 0.33 mm (13 mil) bar codes

Light Source

Visible Laser Diode 650 nm +/- 10 nm

Laser Power

0.96 mW (peak)

Input Voltage

5 VDC + 0.25 V

Power - Operating

500 mW

Power - Standby

110 mW

Current - Operating

100 mA typical @ 5 VDC


FCC, ICES-003 & EN55022 Class B

Decoding Capability

Decodes all standard 1D, RSS14, RSS Limited and RSS expanded Barcodes


PC Keyboard wedge, RS232, OCIA, Light pen emulation, IBM 468X/469X, Stand Alone Keyboard, USB.


Normal operation after 30 drops to concrete from 1.5 m


(L)19.8 x (H)4 x (W) at handle 4.5, at Head 7.8 cm


149 g

Factory Warranty

5 years

EMC/Safety Standards

TUV, UL60950(USA), CISPR22-B, IEC60285-1 Class 1
