Description

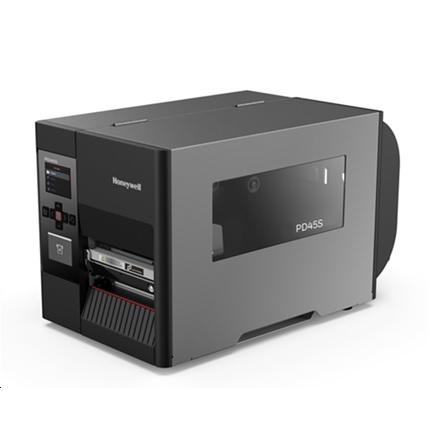

Engineered for demanding industrial environments, the Honeywell PD45S is a high-performance 203 DPI industrial label printer built with a durable all-metal frame and compact footprint. Supporting both Direct Thermal and Thermal Transfer printing, it’s the ideal solution for manufacturing, logistics, retail, and healthcare operations across Australia.
Powered by an Arm Cortex-A7 800MHz processor with 128MB Flash and 128MB DDR3 RAM, the PD45S offers blazing print speeds 8 IPS (250 mm/s) and supports a maximum print width of 4 inch (108 mm). Its user-friendly interface includes a 2.36” keypad LCD, providing clear operational feedback in multiple languages.
Thanks to Honeywell’s patented dual-sensor positioning, the PD45S delivers highly accurate label placement with a minimum label height of just 5 mm. A broad range of interfaces, including Ethernet, USB, and RS-232, along with optional Wi-Fi and GPIO support, allows easy integration into existing enterprise systems. Designed for reliability, ease of maintenance, and compatibility with major printer languages like ZPL, DPL, IPL, and more, this rugged printer keeps your workflows running seamlessly.
Product Features
- Durable Industrial Design – All-metal frame, compact structure, and rugged construction
- Dual Print Modes – Supports both Direct Thermal and Thermal Transfer printing
- High-Speed Printing – 8 IPS (250 mm/s) at 203 DPI
- Dual Sensor Technology – Ensures precise label positioning with 0.5 mm vertical accuracy
- Versatile Connectivity – Standard Ethernet, USB, RS-232; optional Wi-Fi, parallel, GPIO, dual serial
- 2.36" LCD Display – Keypad interface for clear status and control in 12 languages
- Wide Media Support – Handles die-cut, continuous, tag, black mark, and guide hole paper
- Large Ribbon Capacity – Supports 450 m ribbon rolls with inner or outer wound carbon
- Smart Configuration – Compatible with Windows, Linux, SAP, and Oracle
- Energy Efficient – PFC 100W power supply, CE and RoHS certified
Product Specifications
Specification | Details |
Model | PD45S0C0010000200 |
Print Method | Direct Thermal & Thermal Transfer |
Print Resolution | 203 DPI (8 dots/mm) |
Max Print Speed | Up to 8 IPS (250 mm/s ) |
Max Print Width | 4 inch (108 mm) |
Max Print Length | 4.8 m (15.75”) |
Processor | ARM Cortex-A7 800 MHz |
Memory | 128 MB Flash, 128 MB DDR3 SDRAM |
Display | 2.36” Keypad LCD (Multi-language support) |
Ribbon Support | 450 m rolls, 80 mm diameter, 25.4 mm core |
Interfaces (Standard) | USB 2.0 host/device, Ethernet, RS-232 |
Interfaces (Optional) | Wi-Fi, Parallel, GPIO, Dual Serial, Rewinder, Peeler, Cutter |
Media Types | Die-cut, tag, continuous, notch, black mark |
Media Width | 4 inch |
Media Thickness | 0.076 – 0.255 mm (3 – 10 mil) |
Roll Capacity | 203.2 mm (8”) diameter, 76 mm or 25.4 mm core |
Supported Languages | ZPL, EPL, IPL, DPL, FP, DP, ZSim2, XML |
Smart Features | Real-Time Clock, Label Taken Sensor, PrintSet, Web Interface |
Barcode Support | All major 1D and 2D barcodes including QR, DataMatrix, PDF417 |
Graphics Formats | PCX, PNG, GIF, BMP |
OS Compatibility | Windows, Linux, SAP, Oracle |
Power Supply | 100–240V AC, 50–60Hz, PFC 100W |
Dimensions (L x H x W) | 438mm x 270mm x 249mm |
Weight | 10.82 kg |
Operating Temperature | +5°C to +40°C |
Storage Temperature | -20°C to +70°C |
Humidity | 20% – 85% non-condensing |
Certifications | CE, CB, RoHS, WEEE |
