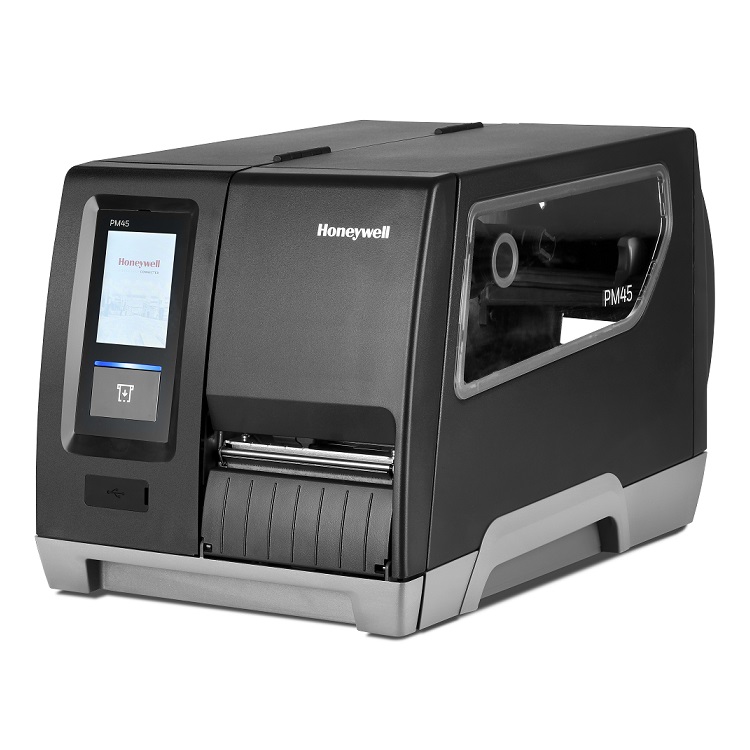

Honeywell PM45A, Full Touch Display, Ethernet, Fixed Hanger, TT, 203 DPI

USB, 3 inch, 4.5", 2 Years, Thermal Transfer, USB, Serial / RS232, Ethernet, 203dpi, Black, Thermal Transfer, 14, Industrial, 4.5inch
$2,514.00
For Special & Volume Pricing - Call +61 2 9090 4610
PM45A10000000200
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

Engineered for performance in the most demanding industrial environments, the Honeywell PM45A 203DPI Thermal Transfer Label Printer delivers high-quality, high-speed label printing for mission-critical operations. Designed to meet evolving traceability requirements, the PM45A is equipped with advanced features such as a full-colour touchscreen, Ethernet connectivity, and support for smart printing without the need for a host PC.

Built for 24/7 reliability, the PM45A offers secure, real-time data communication via Honeywell's WWAN-ready architecture and supports major printer languages like ZPL, DPL, IPL, and Fingerprint. Featuring Operational Intelligence for predictive maintenance and remote management, it reduces downtime and enhances operational efficiency.

Its modular design supports a wide range of industrial applications, including manufacturing, pharmaceuticals, logistics, and warehousing. The fixed hanger design ensures space efficiency, while the rugged build and enterprise-level security make it ideal for integration into enterprise IoT and M2M workflows.


Product Features

  • 203DPI High-Quality Printing – Ideal for barcodes, tags, and shipping labels
  • Full Touch Display – Intuitive UI with multilingual support and icon-based navigation
  • Thermal Transfer Technology – Prints durable, long-lasting labels
  • Ethernet Connectivity – High-speed data communication for industrial environments
  • Smart Printing Capability – Operate without a host computer
  • Remote Management Ready – Supports Honeywell Operational Intelligence, SOTI, PrintSet 5 & MC
  • Multi-Language Printer Emulation – ZPL, DPL, IPL, Fingerprint, and XML-enabled for SAP®
  • Future-Ready – Scalable design with optional RFID, peelers, and cutters


Product Specifications

Specification

Details

Model

PM45A10000000200

Print Method

 Thermal Transfer

Print Resolution

203 DPI (8 dots/mm)

Max Print Width

4 inch (108 mm)

Max Print Speed

Up to 14 IPS (350 mm/s)

User Interface

Full Colour Touch Display with Icon UI

Connectivity

Ethernet, USB 2.0 Host & Device, RS-232 Serial

Media Types

Continuous, die-cut, black mark, fanfold, linered media

Media Width

0.75 inchto 4.5 inch (19 mm to 114 mm)

Media Thickness

0.0635 mm to 0.254 mm

Max Label Roll Diameter

213 mm (8.38 inches)

Label Core Size

1.5 inch to 3 inch (38 mm to 76 mm)

Ribbon Length

Up to 450 m (1,476 ft)

Ribbon Width

21.6 mm to 110 mm (0.85” to 4.33”)

Memory

512 MB Flash, 256 MB SDRAM, 256 MB User Partition, USB Expansion Supported

Supported Languages

Fingerprint, IPL, ZPL, DPL, XML, PDF, C#

Barcode Support

All major 1D and 2D symbologies

Remote Management

Operational Intelligence, PrintSet 5 & MC, Web UI

Power Requirements

AC 100V to 240V, 50–60 Hz, Peak 270W

Dimensions (L x W x H)

483mm x 284mm x 295mm

Weight

12.1 kg (26.7 lbs)

Environmental Ratings

Operating: 5°C to 40°C, Humidity: 20–85% RH (non-condensing)

Compliance

RoHS, CE, FCC Class B, ENERGY STAR® 3.0, RCM

Warranty

Manufacturer's Warranty – 2 Years

Features

Cable:
  • USB
Core Size:
3 inch
Print Size:
  • 4.5"
Warranty:
2 Years
Print Method:
  • Thermal Transfer
Interface:
  • USB
  • Serial / RS232
  • Ethernet
Color:
  • Black
Type:
  • Thermal Transfer
Print Speed :
  • 14
Printer Type / Suitable For:
  • Industrial
Print Width:
  • 4.5inch

Attachments

Brochure (Honeywell_PM45-PM54c_DS_v1.pdf, 145 Kb) [Download]
