Description

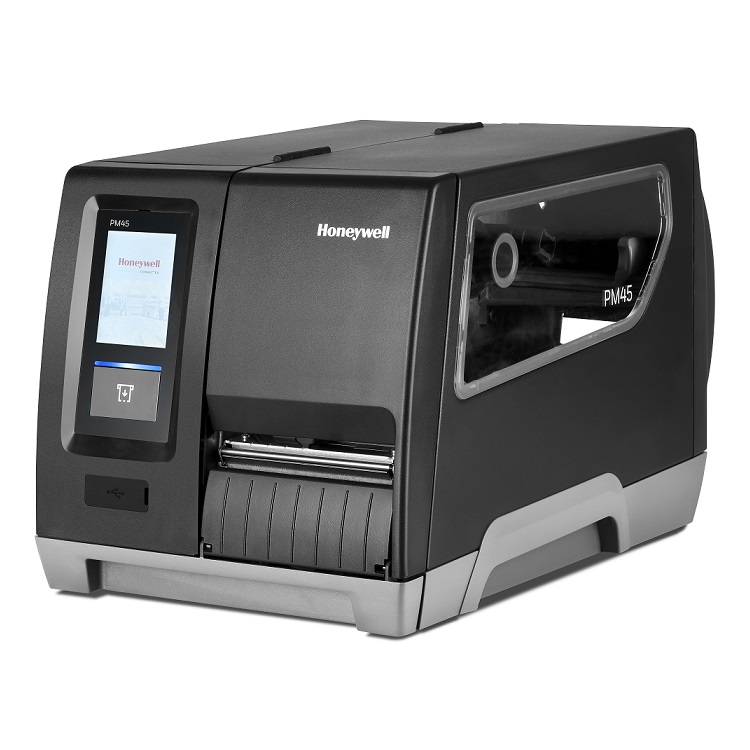

Engineered for precision, performance and industrial durability, the Honeywell PM45A Industrial Label Printer delivers exceptional 203DPI print quality in demanding environments. With full touchscreen control, Wi-Fi, Bluetooth, and Gigabit Ethernet connectivity, the PM45A is built for smart manufacturing and modern supply chain operations.
Ideal for the food, pharmaceutical, warehouse, and manufacturing sectors, the PM45A ensures consistent high-speed label output with registration precision of ±0.5 mm. Featuring Honeywell Smart Parse for quick on-the-fly label edits and Printer Edge™ technology for centralised management and real-time diagnostics, the PM45A enhances uptime, traceability, and print control without compromising performance.
Built with a rugged metal chassis and support for ink-in/ink-out ribbons and multiple media types, this 4-inch label printer future-proofs your labelling investment. Seamlessly integrate it into local or cloud-based systems with broad protocol and language support. Note: Power cord sold separately.
Product Features
- Durable Industrial Design – All-metal construction with tool-free maintenance and fixed hanger for stability
- 203 DPI High-Quality Printing – Sharp text, barcodes, and graphics with ±0.5 mm precision
- Full-Colour Touchscreen – Intuitive, easy-to-navigate interface for printer control
- Advanced Connectivity – Ethernet, Wi-Fi, Bluetooth, and optional WWAN connectivity
- Smart Printing – Configure and print without a connected PC via Smart Printing technology
- Wide Media Support – Accepts ink-in and ink-out ribbons, 1-inch cores, multiple label types
- Honeywell Printer Edge™ – Centralised monitoring and diagnostics for reduced downtime
- Remote Management – Compatible with Honeywell Operational Intelligence & Print Set MC
- Cloud-Ready – Supports variable network protocols for flexible system integration
- Expandable Platform – RFID, industrial I/O, parallel, and applicator interfaces available
Product Specifications
Specification | Details |
Model | Honeywell PM45A |
Part Number | PM45A12000000200 |
Print Technology | Thermal Transfer & Direct Thermal |
Print Resolution | 203 DPI |
Max Print Width | 4 inch (104 mm) |
Max Print Speed | Up to 14 IPS (inches per second) |
Print Accuracy | ±0.5 mm |
Display | Full-colour touch display |
Connectivity | Ethernet, Bluetooth, Wi-Fi |
Remote Management | Via Printer Edge™, Operational Intelligence, Print Set MC |
Media Support | Ink-in/ink-out ribbons, continuous, die-cut, fanfold |
Ribbon Length | Up to 600 m, 1” core size |
Media Width | Wide media compatibility (up to 120 mm) |
Construction | All-metal chassis with fixed hanger |
Interface Options | Serial, USB, Ethernet, Bluetooth, Wi-Fi, RFID (optional) |
OS Compatibility | Android, iOS, Windows |
Weight | Approx. 14–16 kg (varies by configuration) |
Power Supply | AC power input (Power cord sold separately – requires CAIEC) |
Warranty | 1 Year Manufacturer Warranty |
Features
OS Compatability:
- Android
- iOS
- Windows
Print Size:
- 4"
Warranty:
1 Year
Print Method:
- Thermal Transfer
Interface:
- Ethernet
- Bluetooth
- WIFI
Color:
- Black
Type:
- Monochrome
Print Speed :
- 14
Printer Type / Suitable For:
- Industrial
Print Width:
- 4 inch
