Description

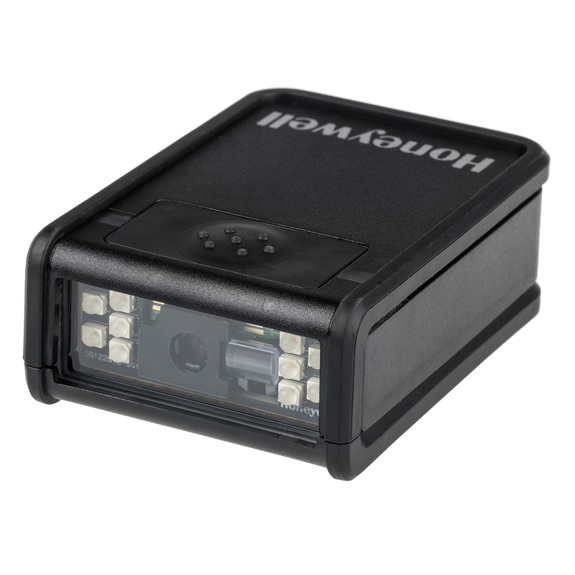

The Honeywell Vuquest™ 3320g is a compact, high-performance area-imaging scanner designed to excel in retail, light industrial, and kiosk environments. It delivers exceptional scanning of 1D, PDF417, 2D, postal, and OCR codes, including digital barcodes displayed on mobile phones and tablets — all in a lightweight and elegant form factor.
Powered by Adaptus™ Imaging Technology 6.0, the Vuquest 3320g provides aggressive scanning of barcodes on reflective surfaces, eliminating the need for separate specialty scanners. Its laser-free aiming system creates a safe and customer-friendly scanning environment. With TotalFreedom™ 2.0, you can load and link multiple decoding plug-ins directly onto the device, extending functionality without altering host software.
The Vuquest 3320g features automatic interface detection, seamlessly switching between USB, RS-232, and Keyboard Wedge interfaces. Its durable IP53 sealing, 1.5m drop resistance, and versatile mounting options make it an ideal fixed-mount or handheld solution for various scanning needs — from retail counters to industrial kiosks.
Product Features
-
Adaptus™ Imaging 6.0 for high-speed, high-accuracy scanning
-
Reads 1D, PDF417, 2D, Postal, OCR barcodes, and mobile device displays
-
Compact, lightweight design – weighs only 77 g for easy handheld or wearable use
-
Laser-free aiming – safer for customers, eliminates risk of eye injury
-
TotalFreedom™ 2.0 platform for loading decoding/formatting plugins
-
Automatic interface detection – USB, RS-232, and Keyboard Wedge in one device
-
Trigger external devices via I/O ports (e.g. beepers, lights, sensors)
-
Universal mounting support – ideal for kiosks or fixed-mount scanning
Product Specifications
Scan Technology | Area Imaging (838 x 640 pixel array) |
Supported Symbologies | 1D, 2D |
Interfaces | USB, RS-232, Keyboard Wedge |
Dimensions (LxWxH) | 73 mm x 51 mm x 26 mm (2.9 in x 2.0 in x 1.0 in) |
Weight | 77 g (2.7 oz) |
Sealing | IP53 |
Mounting Options | Universal mounting, presentation mode support |
Warranty | 2-year factory warranty |
Features
- 53
- Fixed Mount
- Wired
- USB
- Black
