IMIN KDS SWAN 1K A55 4/32 15.6P WIFI/VESA AD11

Android, No, Quad Core 2.0GHz, 4 GB, No, 15.6 inch, Flash, KDS, Capacitative, 1 Year
$899.00
For Special & Volume Pricing - Call +61 2 9090 4610
TTIMSWAN1K002
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

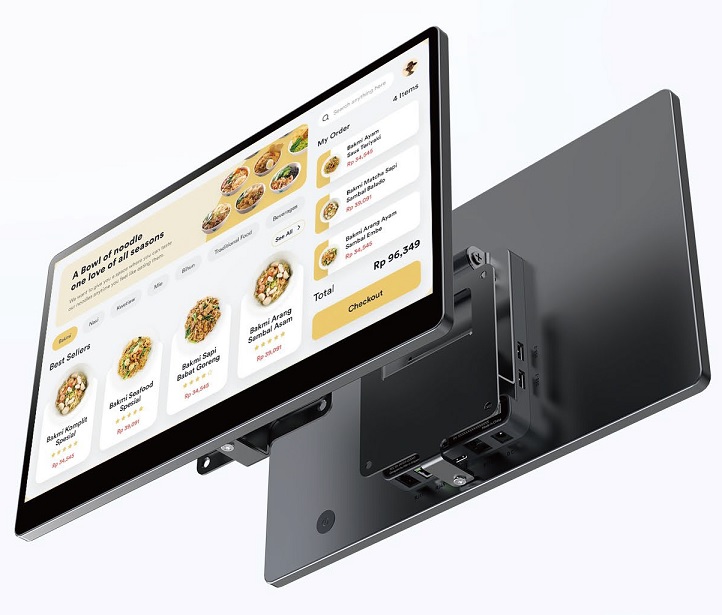

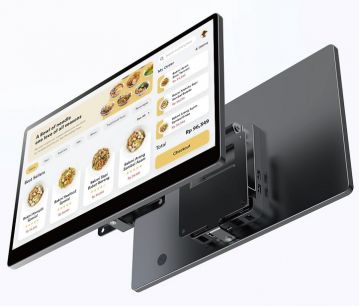

Built to endure the heat and hustle of busy kitchens, the iMin Swan 1K Kitchen Display System is the ideal solution for modern Australian hospitality environments. Featuring a 15.6” Full HD capacitive touchscreen, the Swan 1K offers a seamless user interface powered by Android 11 and iMin’s custom UI.

With a Quad-Core Cortex-A55 processor, 4GB RAM, and 32GB storage, it delivers responsive performance for real-time kitchen order tracking and workflow management. The full-metal body and slim, compact form factor make it easy to install and clean, while the universal VESA mount ensures effortless wall or pole integration in any kitchen layout.

Equipped with Wi-Fi, Bluetooth, and Ethernet connectivity and multiple I/O ports for peripherals, the iMin Swan 1K is built to connect teams and streamline service in fast-paced kitchen operations.


Product Features

  • 15.6” Full HD touchscreen (1920x1080) with multi-point capacitive input
  • Rugged full-metal body built for demanding kitchen environments
  • Android 11 with iMin UI for fast, user-friendly operation
  • Quad-Core Cortex-A55 2.0GHz processor for powerful performance
  • 4GB RAM + 32GB storage, expandable via TF card
  • Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 4.2, and Ethernet connectivity
  • Universal VESA mount for flexible installation on walls or poles
  • Compact and lightweight at 1.2kg – perfect for space-constrained kitchens
  • Built-in 1.5W mono speaker for audio alerts
  • Extensive peripheral connectivity: USB, RJ11, RJ12, RJ45, Audio Jack


Product Specifications

Specification

Details

Model

iMin Swan 1K (TTIMSWAN1K002)

Operating System

Android 11 with iMin UI

Processor

Quad-Core Cortex-A55, 2.0GHz

RAM

4GB

Storage

32GB eMMC, TF Card Slot (up to 128GB)

Display

15.6” Full HD (1920x1080), Multi-point Capacitive Touch

Touch Type

PCAP (True-flat Capacitive)

Audio

1.5W Mono Speaker, 3.5mm audio jack

Connectivity

Wi-Fi, Bluetooth 4.2, Ethernet

I/O Ports

2x USB 2.0, 1x USB 3.0, 1x RJ11, 1x RJ12, 1x RJ45, TF Card, DC Jack

Mounting

VESA Mount Compatible

Power Supply

24V / 1.5A DC Adapter

Dimensions

364mm x 230mm x 44mm

Weight

1.2kg

Certifications

FCC, CE, IMDA, WEEE

Colour

Metallic Silver

Features

OS Compatability:
  • Android
Printer:
  • No
Processor:
  • Quad Core 2.0GHz
Ram:
  • 4 GB
Scanner Capability:
  • No
Screen Size Font:
  • 15.6 inch
Storage Capacity:
  • 32GB
Storage Type:
  • Flash
Terminal Type:
  • KDS
Touch Technology:
Capacitative
Warranty:
1 Year

Attachments

Brochure (iMin_Swan-1k_Brochure.pdf, 1,234 Kb) [Download]
