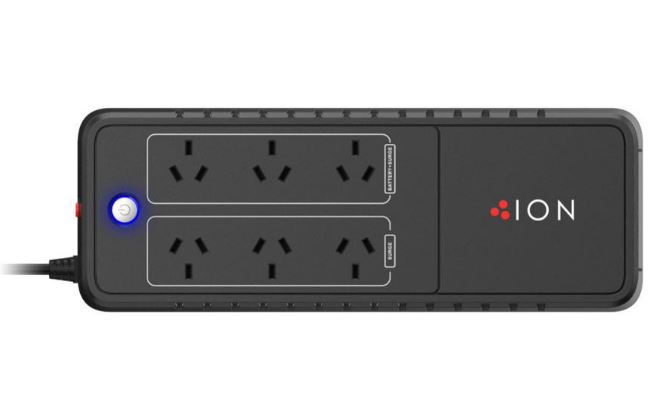

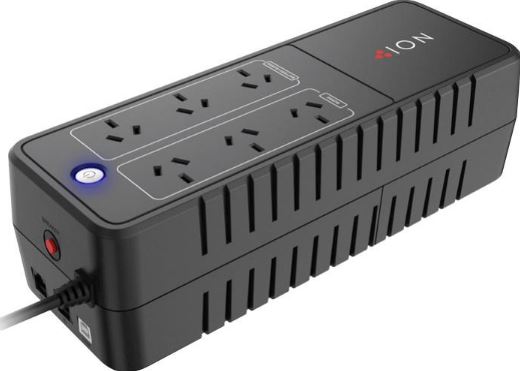

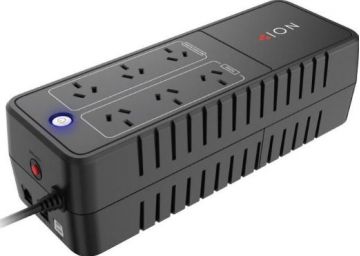

ION F10 Power Board UPS, 6 Outlets

$129.00
For Special & Volume Pricing - Call +61 489 087 085
PPIOF10850
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The ION F10 Power Board UPS (850VA/490W) is the perfect compact power protection solution for Australian homes and small businesses. Designed to protect your valuable electronics from power surges, outages, and fluctuations, it features six Australian 3-pin outlets – three dedicated to surge protection and three offering both surge and battery backup.

Ideal for POS systems, security setups, home office workstations, modems, routers, storage devices, gaming consoles, and home theatres, the ION F10 ensures uninterrupted operation and reduces the risk of data loss or downtime. With fanless technology for silent operation, auto-restart/auto-charge functions, and an intelligent LED indicator, this UPS delivers reliability and peace of mind.

Backed by a 2-Year Advanced Replacement Warranty, the ION F10 is a trusted and affordable solution for essential power protection in everyday applications.


Product Features

  • 850VA/490W simulated sine wave UPS for reliable backup power
  • Six Australian 3-pin outlets (3 surge-only, 3 surge + battery backup)
  • Compact and wall-mountable design for easy installation
  • Fanless technology for silent operation in any environment
  • Cold start function for instant power-on during outages
  • Auto-restart and auto-charge capability for convenience
  • USB communication port for UPS monitoring and control
  • RJ-11/RJ-45 protection for telephone and network lines
  • Intelligent LED indicators for real-time UPS status updates
  • 2-Year Advanced Replacement Warranty


Product Specifications

Category

Details

Brand

ION

Model

F10

Type

Power Board UPS

Output Power Capacity

490W / 850VA

Max Configurable Power

490W / 850VA

Nominal Voltage (Battery Mode)

220-240V AC

Frequency (Battery Mode)

50/60Hz ±1%

Waveform (Battery Mode)

Simulated Sinewave

THDv

≤3% (linear load), ≤5% (non-linear load)

Transfer Time

4ms typical

Overload Protection

Circuit breaker / firmware protection

Input Voltage Range

180-270V AC

Battery Type

12V, 5.6AH (1x battery)

Recharge Time (to 90%)

8 hours

Charger Current

0.7A

Display

LED

Communication Ports

USB, RJ-11/RJ-45

Alarms

Battery mode, low battery, overload, fault

Physical Dimensions

90mm × 110mm × 309mm

Weight

3kg

Operating Temperature

0–40°C

Humidity Tolerance

0–90% non-condensing

Approvals

CE

Warranty

2-Year Advanced Replacement
