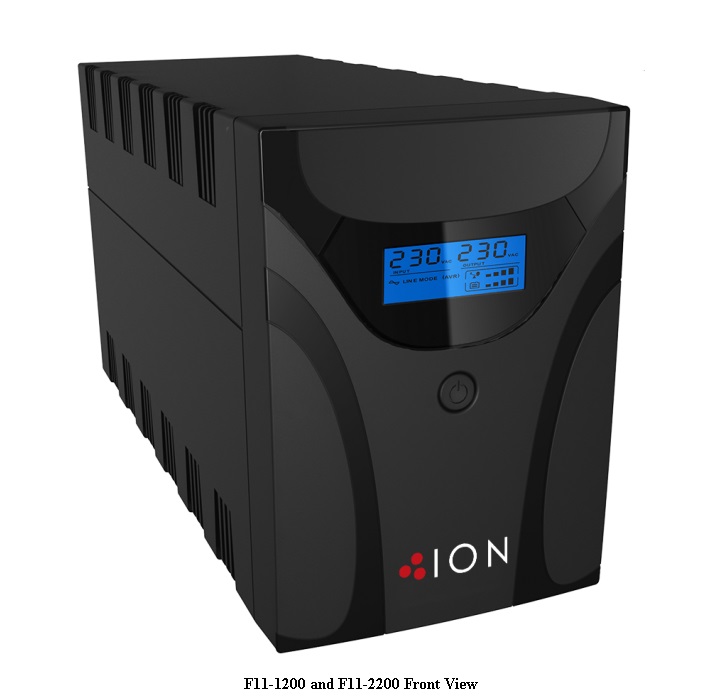

ION UPS F11 2200VA LINE INTERACTIVE

LCD, Windows, macOS, 3 Years, ION
$419.00
For Special & Volume Pricing - Call +61 489 087 085
PPIOF112200
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The ION F11 2200VA is a high-capacity, line-interactive UPS designed to protect workstations, POS systems, network equipment, and other sensitive electronics from power interruptions, surges, and fluctuations. Delivering 2200VA / 1200W of clean, reliable backup power, it features Automatic Voltage Regulation (AVR) with both boost and buck functionality to stabilise voltage without unnecessary battery use, extending service life.

Its LCD display provides real-time status updates, including load level, battery status, and alerts. The user-replaceable battery ensures long-term maintainability, while the USB port and included monitoring software allow automated system shutdown and live power condition monitoring.

With six Australian 3-pin outlets, the F11 2200VA can power multiple devices simultaneously. RJ-11 surge protection safeguards phone/modem lines, and built-in discharge, overcharge, and overload protection adds extra peace of mind. The 3-year advanced replacement warranty covers both electronics and batteries.


Product Features

  • 2200VA / 1200W capacity – supports multiple computers, networking gear, and POS terminals.
  • Line-Interactive topology with AVR – corrects voltage drops and spikes without draining battery.
  • Boost & buck AVR – stabilises power in both over- and under-voltage situations.
  • LCD display – clear readout of UPS and power status.
  • 6 Australian 3-pin outlets – multiple devices can be protected at once.
  • USB interface + free monitoring software – automated shutdown and live monitoring.
  • User-replaceable battery – easy maintenance and extended lifespan.
  • RJ-11 surge protection – protects phone/fax/modem connections.
  • Discharge, overcharge, and overload protection – ensures equipment and UPS safety.
  • 3-year advanced replacement warranty – covers both UPS and batteries.


Product Specifications

Specification

Details

Model

F11 2200VA

Brand

ION

Capacity

2200VA / 1200W

Topology

Line-Interactive

Output Waveform

Simulated sine wave

Output Voltage

230V

Voltage Regulation

AVR (Boost & Buck)

Output Voltage Distortion

<5% at full load

Output Frequency

47–53 Hz (50 Hz nominal), 57–63 Hz (60 Hz nominal)

Outlets

6 x Australian 3-pin (10A)

Plug Type

IEC-320 C14

Input Voltage Range

170–280V

Battery Type

Sealed lead-acid, maintenance-free

Recharge Time

3 hours

Expected Battery Life

3–5 years

Surge Energy Rating

320 Joules

Data Line Protection

RJ-11

Connectivity

USB

Indicators

LCD status display, audible alarms

Transfer Time

2 ms typical

Protection

Overload, overcharge, discharge protection

Form Factor

Rack/Tower

Dimensions (HxWxD)

195 x 139 x 364 mm

Net Weight

10.4 kg

Color

Black

Operating Temperature

0–40 °C

Operating Humidity

0–95>#/span###

Operating Elevation

0–3000 m

Storage Temperature

-15–45 °C

Storage Humidity

0–95>#/span###

Storage Elevation

0–15000 m

Warranty

3-year advanced replacement (UPS & battery)

Features

Display:
  • LCD
OS Compatability:
  • macOS
  • Windows
Warranty:
3 Years
Manufacturer
:
ION

Attachments

Brochure (ION_F11_Brochure.pdf, 604 Kb) [Download]
