Description

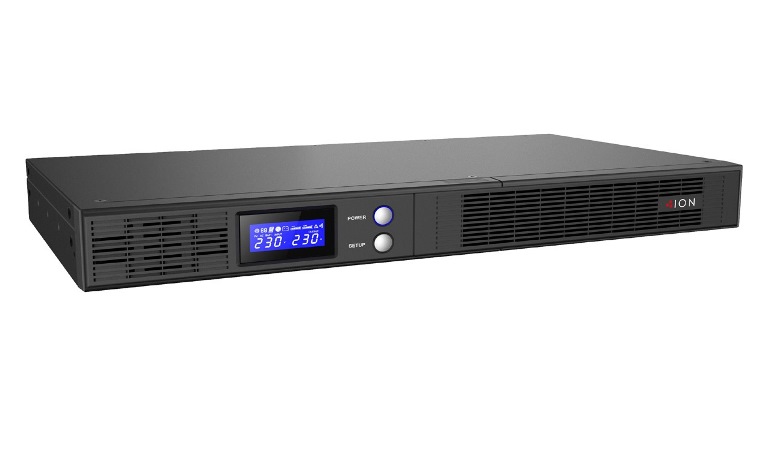

The ION F15R 1200VA/720W Line-Interactive UPS provides high-density power protection in a compact 1RU rack/tower design, making it the ideal solution for servers, networking equipment, security systems, storage devices, and short-depth racks. Designed with pure sinewave output and Automatic Voltage Regulation (AVR), the F15R safeguards sensitive electronics from power surges, sags, and outages while delivering stable and efficient performance.
This UPS combines fanless technology for silent operation, energy-saving design, and auto-restart/auto-charge features to ensure minimal downtime. The intuitive LCD display provides clear system status, battery health, and fault indicators at a glance.
For advanced management, the ION F15R supports HID USB, RS-232, and optional SNMP or SNMP Wi-Fi cards for remote monitoring and control. Built for reliability, it also comes with an impressive 3-year advanced replacement warranty covering both UPS electronics and batteries, ensuring peace of mind for Australian businesses.
Product Features
- 1200VA / 720W pure sinewave UPS for reliable power protection.
- 1RU rack/tower convertible design for space-saving deployment.
- Fanless technology for silent operation.
- Pure sinewave AVR delivers clean, stable power to sensitive devices.
- Energy-saving UPS technology reduces power consumption.
- LCD display with alarms for battery, overload, and fault conditions.
- Auto-restart and auto-recharge for hassle-free recovery after outages.
- Cold start function to power devices without mains electricity.
- Connectivity options: HID USB & RS-232 ports included.
- Optional SNMP & Wi-Fi cards for network management.
- Optional conformal coating for harsh environments.
- 3-year advanced replacement warranty on UPS & batteries.
Product Specifications
Brand | ION |
Model | F15R 1200VA |
Product Type | Line-Interactive Rack/Tower UPS |
Capacity | 1200 VA / 720 W |
Input Voltage | 220 – 240V AC |
Input Range | 165 – 290V AC |
Input Frequency | 50/60 Hz (Auto sensing) |
Output Waveform | Pure Sinewave |
Output Frequency (Batt.) | 50/60 Hz ± 1>#/span### |
THDv | ≤ 3% (linear load), ≤ 5% (non-linear load) |
Transfer Time | 4 ms typical |
Overload Protection | Circuit breaker / firmware protection |
Display | LCD |
Alarms | Battery mode, low battery, overload, fault |
Battery Type | Sealed Lead-Acid, Maintenance-Free |
Battery Specs | 2 x 12V/6.7Ah |
Recharge Time | 4 Hours |
Communication Ports | HID USB, RS-232 |
Optional Communications | SNMP, SNMP Wi-Fi, EPO |
Power Management Software | Yes |
Energy Saving Function | Yes |
Cold Start Capability | Yes |
Approvals | CE |
Operating Temperature | 0 – 40°C |
Operating Humidity | 0 – 90% (non-condensing) |
Form Factor | 1RU Rack/Tower |
Dimensions (H x W x D) | 44mm x 433mm x 216mm |
Weight | 8.6 kg |
Warranty | 3-Year Advanced Replacement (UPS & Battery) |
Features
- LCD
- Linux
- Windows
