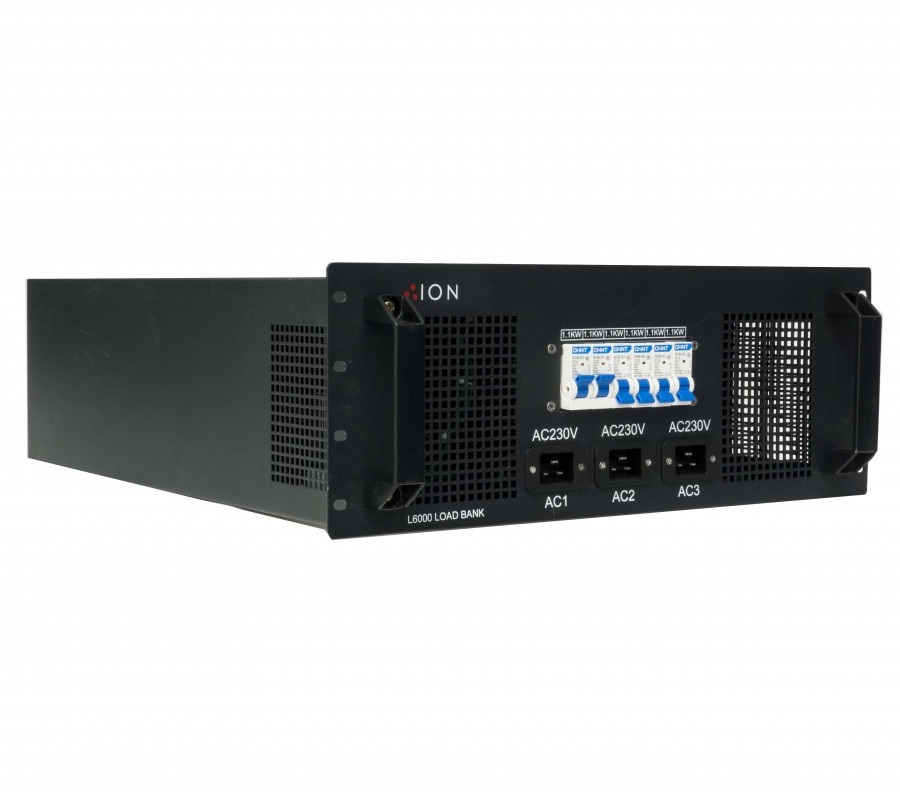

ION UPS L6000-G2 RACK-MNT 4RU 6.6KW LOAD BANK

LCD, Windows, 2 Years, ION
$3,073.00
For Special & Volume Pricing - Call +61 489 087 085
L6000-G2
+

Need Help

Choosing a Product
+61 489 087 085 Live Chat Email Us
Talk to our technical Expert
price match

Description

The ION L6000-G2 Rack-Mount Load Bank is the ideal solution for safe, accurate, and efficient rack-level load testing in data centres, UPS systems, and power distribution environments. With a compact 4RU footprint, this unit delivers 6.6kW of load capacity through six individually controlled 1.1kW load segments, providing unmatched flexibility for staged testing.

Designed with unity power factor, effortless connection via three C20 input sockets, and built-in overheating and fuse protection, the L6000-G2 ensures reliable, precise validation of UPS, generator, and cooling systems. Whether you’re testing air conditioning load, validating hot aisle/cold aisle performance, or ensuring Tier-level compliance, the ION L6000-G2 is purpose-built for professional environments.

Backed by a 2-year warranty, this rack-mount load bank combines safety, accuracy, and ease of use in a lightweight 19kg form factor.


Product Features

  • 6.6kW Load Capacity – Perform comprehensive UPS and generator testing.
  • Individually Controlled Load Segments – Six 1.1kW steps for staged validation.
  • Compact 4RU Rack-Mount Design – Fits seamlessly into standard 19” racks.
  • Unity Power Factor – True-to-load performance for accurate results.
  • Simple Connection – Front-mounted C20 input sockets for fast setup.
  • Built-In Safety – Overheating protection and fused socket protection.
  • Fan-Forced Cooling – Reliable operation with front-to-rear airflow.
  • Lightweight Construction – Only 19kg, easy to install and handle.
  • Professional Applications – Ideal for UPS load testing, generator validation, and data centre cooling tests.
  • 2-Year Warranty – Peace of mind with ION reliability.


Product Specifications

Brand

ION

Model

L6000-G2

Type

Rack-Mount Load Bank

Rated Power

6.6kW

Load Segments

6 × 1.1kW (individually controlled)

Power Factor

Unity (PF = 1)

Load Voltage

AC 230V, Single-Phase, 50/60Hz

Load Accuracy

±5>#/span###

Control Mode

Manual – Mini Circuit Breaker

Cooling

Fan-forced, front-to-rear airflow

Noise Level

75dB

Protection

Overheating protection, socket fuse

Insulation Class

Class F

Operating Mode

Continuous

Operating Temp.

-10°C to +50°C

Humidity

≤95% non-condensing

Max Altitude

≤2500m

Connections

3 × C20 Input Sockets (Front)

Dimensions

483mm × 250mm × 176mm

Weight

19kg

Warranty

2 Years

Features

Display:
  • LCD
OS Compatability:
  • Windows
Warranty:
2 Years
Manufacturer
:
ION

Attachments

Brochure (ION-L6000-G2-Brochure-1.2.pdf, 808 Kb) [Download]
