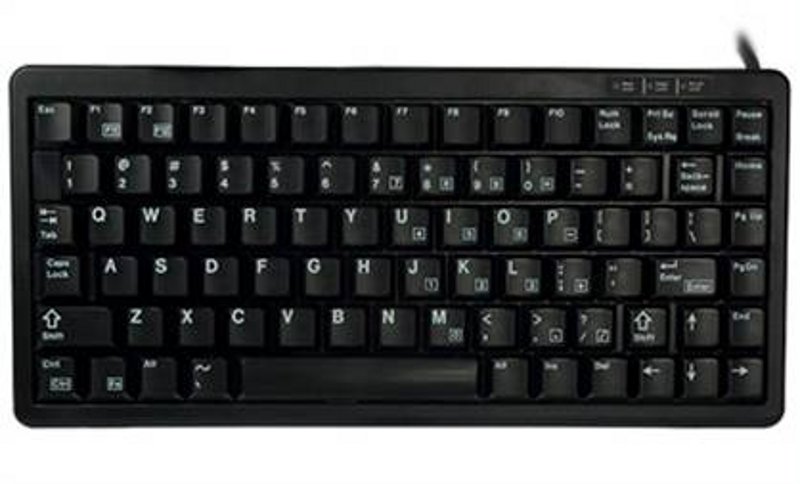

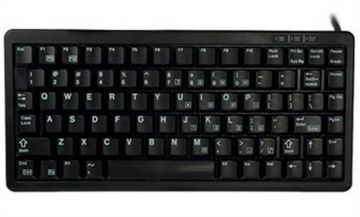

Keyboards : Cherry Compact 83 Keys

$162.00
(Inc GST)
For Special & Volume Pricing - Call 0291 919 694
14G84-4100BCL
+

Description

This compact keyboard is the perfect solution for users with only limited space available and low weight requirements. For example, applications in the banking sector, medical institutions or portable systems. Also suitable for 19-inch applications. This keyboard is perfectly suited for slim-line PCs and laptops and can be enhanced optimally with the numeric block G84-4700. Key benefits
Features :
  • Mechanical Keyswitches are Rated at 50 Million Actuations to Withstand Harsh Environments and Ensure Long Product Lifetime
  • Size-reduced QWERTY Key Layout in Ultraslim 11 Form Factor Combines Maximal Space Efficiency with Comfortable Alphanumeric Data Entry.
  • FN-Key for Easy Access of Integrated Numeric Area Ensures Complete Function Support as with Full Size Keyboards
  • Individual keys with Gold Crosspoint contacts (ML technology)
  • Designed for continuous usage - over 20 mill. Confirmations per key
  • High level of reliability and unique precision confirmation feeling
  • Minimal space requirements
  • Lightweight
  • Can also be delivered without "Windows® keys" (83 keys)
  • Complete functions of a standard keyboard
  • Can be used with the standard drivers of the operating system
  • Ideal for 19" applications and mobile use
  • 2 years manufacturer Warranty.
Multimedia Code: 14G84-4100BCL
Manufacturer Code: G84-4100LCAUS-2

Attachments

Compact 83 Keys-Brochure (G84-4100.pdf, 28 Kb) [Download]

Specifications

Layout (country or language):

• Product dependant, see table "Models"

Housing colour:

• Product dependant, see table "Models"

Key colour:

• Product dependant, see table "Models"

Weight (product):

• approx. 400 g

Total weight (with packaging):

• approx. 500 g

Cable Length:

• approx. 1.75 m

Storage Temperature:

• -20°C to 65°C

Operating Temperature:

• 0°C to 50°C

Current Consumption:

• Product dependant, see table "Models"

Interface:

• Product dependant, see table "Models"

Product approvals:

• c-tick

• UL

• VCCI

• CE

• FCC

• VDE

• BSMI

System requirements:

• Product dependant, see table "Models"

Delivery Volume:

• Product dependant, see table "Models"

Dimensions (product):

• approx. 282 x 132 x 26 mm

Packaging dimensions:

• approx. 315 x 190 x 30 mm

Reliability:

• MCBF > 10 bill. operations

• MTBF (90) > 169,300 hours

Keyboard:

• Key technology: ML

• Service life, standard key: > 20 million key operations

• Operation characteristics: Linear

• Inscription technology: Laser

• Inscription layout: Standard

• Number of Keys: Product dependant, see table "Models"

Packaging Unit:

• Number of products in the master package: 42

• Number of master packages per pallet: 8
