KOAMTAC KDC-270 Bluetooth Barcode Collector 2D CMOS Scan

65, iOS, Android, Windows, 1D, Handheld, Cordless, Bluetooth, Grey, Koamtac
$999.00
For Special & Volume Pricing - Call +61 2 9090 4610
KDC270Ci
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

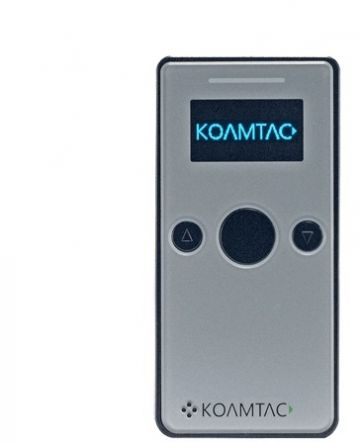

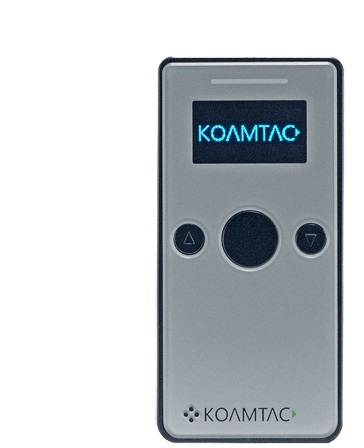

The KDC270 by KOAMTAC is a compact, rugged, and high-performance Bluetooth barcode scanner and data collector, designed to streamline data capture across retail, logistics, warehousing, and healthcare environments. Weighing only 68 g, this miniaturised scanner fits easily into your pocket or hangs comfortably from a lanyard for all-day use.

With models available for 1D laser, CCD, and 2D CMOS scanning, the KDC270 reads all major symbologies and offers seamless Bluetooth connectivity (HID/SPP/MFi) to Android, iOS, macOS, Windows, and Tizen devices. It features an OLED display and 4-key keypad for simple operation, real-time feedback, and offline data collection. Its rugged IP65-rated housing and 1.5 m drop resistance make it perfect for harsh environments.

Supporting 8MB of onboard memory, the KDC270 stores over 400,000 UPC records or up to 60,000 product database entries. Paired with free KTSync® software and SDK support, it enables advanced applications like inventory management, keyboard wedging, and database lookup.

Product Features

  • Pocket-sized, Lightweight Design: Fits in your hand or around your neck – weighs just 68 g

  • Bluetooth Connectivity: Supports HID, SPP, and MFi profiles for broad device compatibility

  • Rugged Build: IP65-rated and drop tested from 1.5 m – ideal for retail, warehouse, and field use

  • Multiple Scan Engines: Choose from 1D Laser, CCD, or 2D CMOS models for your scanning needs

  • On-Device Display & Controls: OLED screen and 4-keypad allow intuitive control and data visibility

  • Offline Data Collection: 8MB Flash + 16KB RAM stores hundreds of thousands of barcodes

  • Rechargeable Battery: Li-Polymer battery offers long-lasting performance with Micro USB or cradle charging

  • Free Software & SDK: Includes KTSync® for Android, iOS, and Windows with application generation and wedging tools

  • Compatible Accessories: Finger trigger glove, ring scanner, charging cradle, and lanyard options available

Product Specifications

Scan Engine Options

1D Laser / 1D CCD / 2D CMOS

Memory

8MB Flash, 16KB RAM

Display

OLED Display

Input

4 Key Buttons

Bluetooth

v4.1 EDR / Class 2 / HID, SPP, MFi

Battery

3.7V Li-Polymer, 1130 mAh

Charging

Via Micro USB or Charging Cradle

Drop Resistance

1.5 m (5 ft)

Sealing

IP65

Dimensions (L×W×H)

44 mm × 83 mm × 18 mm

Weight

68 g

Software

KTSync®, Keyboard Wedge, Application Gen, SDK

Symbology Support

1D, 2D, Postal Codes (dependent on model)

Features

IP Rating:
  • 65
OS Compatability:
  • Android
  • iOS
  • Windows
Scan Engine:
1D
Form Factor:
  • Handheld
Connectivity:
  • Cordless
Interface:
  • Bluetooth
Color:
  • Grey
Manufacturer
:
Koamtac

Attachments

Brochure (kdc270_brochure.pdf, 151 Kb) [Download]
