KOAMTAC KDC470C 2D Imager Smartsled with TabActive2 Case

65, 2D, Standard, Handsfree, Cordless, Bluetooth, Black, Koamtac
$1,169.00
For Special & Volume Pricing - Call +61 2 9090 4610
KDC470C-GTA2
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

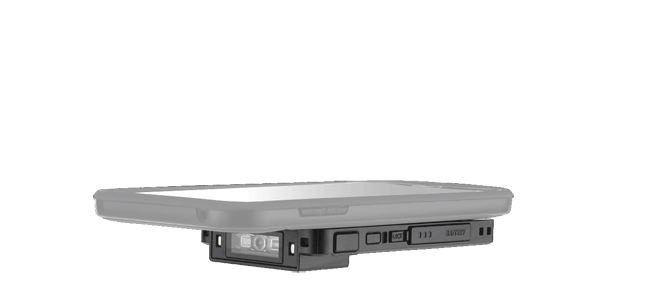

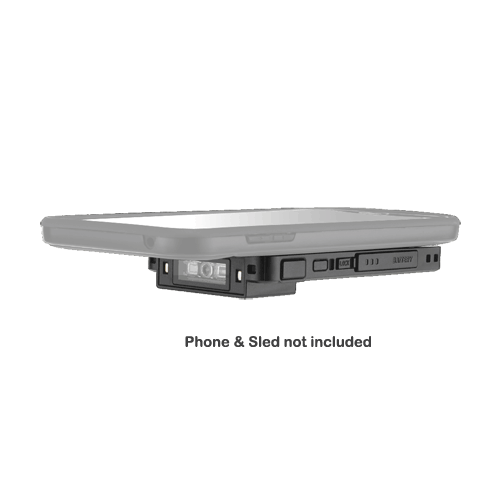

The KOAMTAC KDC470C 2D Imager SmartSled transforms your Samsung TabActive2 into a rugged, enterprise-grade data collection device. Featuring high-performance 2D barcode scanning, a modular design, and IP65-rated durability, the KDC470C is ideal for demanding retail, warehousing, logistics, and field service applications.

This SmartSled scanner easily attaches to the TabActive2 via a custom-fit case, turning your tablet into a fully integrated scanning workstation. Whether you're scanning traditional 1D barcodes or modern 2D symbols like QR codes and Data Matrix, the KDC470C captures them all quickly and accurately—even from damaged or poorly printed labels.

With Bluetooth® HID/SPP/MFi compatibility, it connects seamlessly to your device and delivers data with high accuracy. The device also supports extended battery packs and optional accessories such as pistol grips and charging cradles to suit your operational needs.

Product Features

  • 2D Imager Engine: Reads all major 1D and 2D barcodes, including QR Codes, PDF417, Data Matrix, and postal codes

  • SmartSled Design: Attaches securely to the Samsung TabActive2 for integrated scanning capability

  • Bluetooth Connectivity: Bluetooth V2.1 + EDR with HID/SPP/MFi support for seamless wireless pairing

  • Rugged Durability: IP65-rated for dust and water resistance; withstands drops from up to 1.5 m

  • Compact & Lightweight: Slim form factor (15.8 mm) and only 87g in weight – ideal for mobile workers

  • Powerful Battery: 1130mAh Lithium-Ion battery offers extended operation and recharges via USB or charging cradle

  • Flexible Accessories: Compatible with optional pistol grips, extended battery packs, RFID companions, and multi-slot cradles

Product Specifications

Model

KDC470C

Scan Engine

2D CMOS Imager

Barcodes Supported

1D: UPC, EAN, Code 39, Code 128, GS1, Codabar, ITF, etc.
2D: QR Code, Data Matrix, PDF417, MicroPDF, Aztec, MaxiCode

Connectivity

Bluetooth V2.1 + EDR (HID/SPP/MFi), USB to Serial (Micro USB)

OS Compatibility

Android, iOS, Mac OS X, Windows

Memory

256KB Flash ROM, 8MB User Data, 64KB RAM

Battery

3.7V, 1130mAh Lithium-Ion

Charging Options

Micro USB / Charging Cradle

Scan Range

1.81" to 9.68" (46 mm to 246 mm)

Drop Resistance

1.5 m (5 ft)

IP Rating

IP65 – Dust tight and water resistant

Weight

87 g (3.07 oz)

Dimensions

65 mm x 105 mm x 15.8 mm

Color

Black

Features

IP Rating:
  • 65
Scan Engine:
2D
Scan Range:
  • Standard
Form Factor:
  • Handsfree
Connectivity:
  • Cordless
Interface:
  • Bluetooth
Color:
  • Black
Manufacturer
:
Koamtac

Attachments

Brochures (kdc470ci-ble-2d-imager-barcode-smartsled-kdc470ci-ble.png, 24 Kb) [Download]
