Opticon L-46R Black /w Stand USB 1D Laser Scanner

Handheld, Wired, USB, Black, Opticon
$189.00
For Special & Volume Pricing - Call +61 2 9090 4610
OPL46RBKIT-U
+

Need Help

Choosing a Product
+61 2 9090 4610 Live Chat Email Us
Talk to our technical Expert
price match

Description

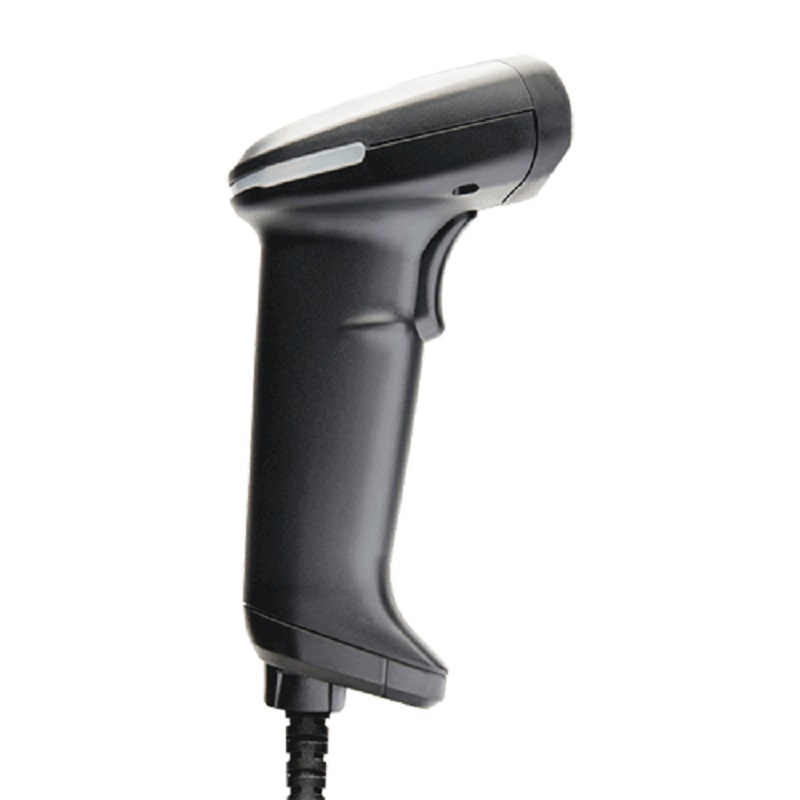

The Opticon L-46R Barcode Laser Scanner is engineered for precision, speed, and reliability in demanding retail, logistics, and industrial environments. With a 100 scans-per-second laser engine and advanced auto-triggering capabilities, the L-46R ensures seamless barcode scanning—even on moving objects. Its bi-directional scanning and extended depth of field make it perfect for point-of-sale, inventory control, and document tracking applications.

Built with a 32-bit processor, the L-46R offers plug-and-play compatibility via USB or RS232 and supports a wide range of 1D barcode symbologies, including GS1 and stacked formats like PDF417 and MicroPDF417. The ergonomic design ensures user comfort during extended use, and its robust build is IP42-rated withstanding drops from 1.8 metres, making it ideal for heavy-duty everyday operations.

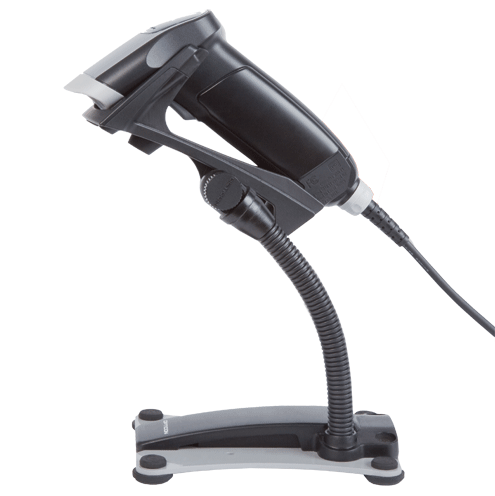

Whether mounted on a stand for hands-free use or used manually, the Opticon L-46R delivers fast and accurate performance with minimal effort.

Product Features

  • High-speed scanning at 100 scans per second

  • Auto-trigger functionality for hands-free operation

  • Reads moving objects with precision and speed

  • Interchangeable USB and RS232 interface options

  • Wide depth of field up to 895 mm for flexible scanning distances

  • Supports major 1D symbologies including PDF417 and MicroPDF417

  • Durable design with 1.8m drop resistance and IP42 protection

  • Visual and non-visual feedback with LED, buzzer, and vibration

  • Ergonomic, lightweight build for all-day use

  • Includes adjustable stand and power supply (RS232 model)

Product Specifications

Scan Engine

Red laser diode, 650 nm bi-directional scanning

Scan Rate

100 scans/sec

Trigger Modes

Manual and auto-trigger with stand detection

Interfaces

USB 2.0 (HID/COM), RS232 (D-SUB9)

Processor

32-bit AISC, 96 MHz

Visual Indicators

LED, buzzer, vibration

Depth of Field

Up to 895 mm (35.24 in)

Minimum Resolution

0.076 mm @ PCS 0.9

Supported Barcodes

1D: UPC, EAN, Code 39, Code 128, PDF417, MicroPDF417, etc.

Operating Temperature

-5°C to 50°C

Drop Resistance

1.8 m (6 ft) onto concrete

Protection Rating

IP42

Dimensions (Scanner)

105.4 x 153.4 x 60 mm

Weight

112 g (scanner only)

Included Accessories

Stand, 5V/2A power supply (for RS232 version)

Features

IP Rating:
  • 42
Scan Engine:
1D
Form Factor:
  • Handheld
Connectivity:
  • Wired
Interface:
  • USB
Color:
  • Black
Manufacturer
:
Opticon

Attachments

Brochure (opl46r_brochure.pdf, 86 Kb) [Download]
