Mounting Solutions : Telehook TH-1040-CT-B2B Back to Back Kit

TH-1040-CT-B2B
$183.04 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

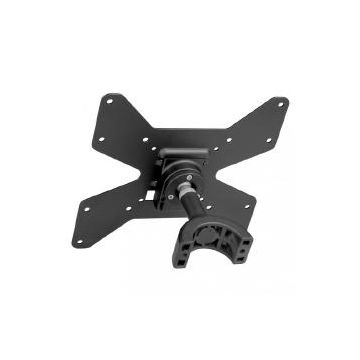

The Telehook TH-1040-CT-B2B is an ace kit that enables attachment of the second screen to the TH-1040-CTS and TH- 1040-CTL ceiling mounts in a dual back-to-back configuration.

Main Features:

Compatibility-

  • Designed for use with the TH-1040-CTS & TH-1040-CTL mounts
  • Supports additional display weighing up to 55lbs
  • Supports VESA mounting hole configurations:

                         1. 75mm x 75mm

                         2. 100mm x 100mm

                         3. 200mm x 100mm

                         4. 200mm x 200mm

                         5. 400mm x 400mm (via additional adaptor plate AC-AP-4040 which is sold separately)

Range of Movement-

  • 360° rotation around the pole
  • Ball joint mechanism allows 20° of display adjustment in any direction
  • Landscape to portrait display rotation

Installation-

  • Designed for quick and easy assembly
  • Quick release mechanism for easy display attachment/removal with optional security screw

Other:

  • Material: Aluminium & steel with toughened matt powder coat finish

Specifications

Compatibility:

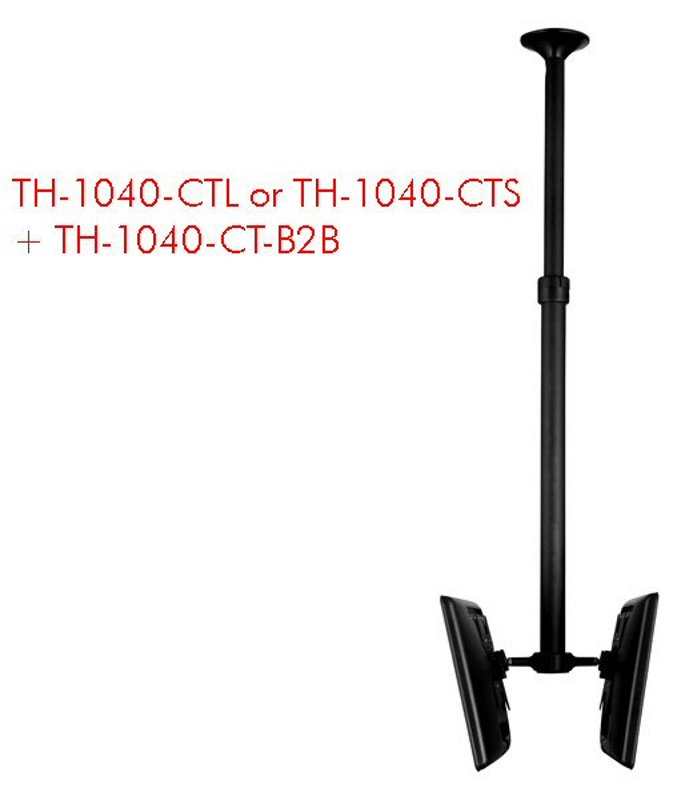

This product is to be installed in conjunction with TH-1040-CTS and TH-1040-CTL Ceiling Mounts only.

1.     TH-1040-CTS Ceiling Tilt Short Mount

2.     TH-1040-CTL Ceiling Tilt Long Mount

Supports VESA mounting hole configurations:          Maximum Load:

                 1.     75mm x 75mm                                              25kg (55lbs) per mount

2.     100mm x 100mm                                          25kg (55lbs) per mount

3.     200mm x 100mm                                          25kg (55lbs) per mount

4.     200mm x 200mm                                          25kg (55lbs) per mount

Maximum Pole Capacity:

50kg (110lbs) using TH-1040-CT-B2B

Range of display adjustment:

1.     +/-20 pan and tilt

2.     360° rotation around the pole

3.     360° portrait to landscape rotation

Warranty: 10 years limited

Colour: Black

*Specifications are subject to change without notice.
