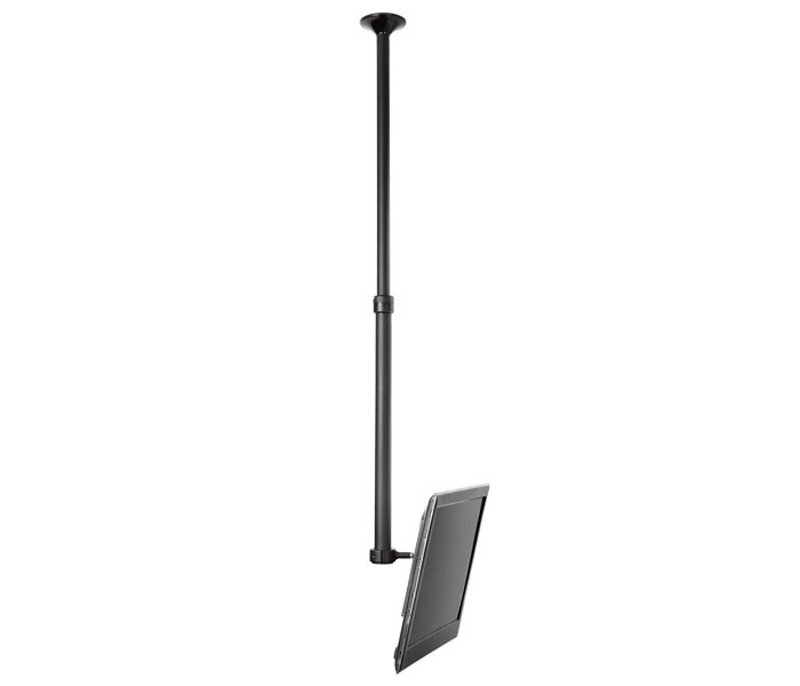

Mounting Solutions : Telehook TH-1040-CTL Ceiling Mount Pole


$350.78
(Inc GST)
For Special & Volume Pricing - Call 0291 919 694
TH-1040-CTL
+

Description

The TH-1040-CTL is cutting edge ceiling mount offering superior display versatility, combined with enhanced safety features and hassle-free installation. The “donut” mounting head effortlessly rotates the screen through 360 degrees around the pole and to maximise display impact the VESA Ball Mount can infinitely adjust display position by 20 degrees in any direction. Display height is also customised with the telescopic pole adjustments. Installation is simple, with in-built safety features to prevent the unlikely event of the telescopic poles separating. Once installed, you’re guaranteed a clean and professional finish by fully internal cable management, a dress cover to hide the ceiling connection and a clean pole without screw holes. Angled ceilings are accommodated with the raked ceiling accessory kit (TH-1040-RCA sold separately). You can also customize this mount to support two screens, back to back (TH-1040-CT-B2B sold separately).

Main Features:

Flexible mounting:
  • Designed for screens 17" (43.2cm) or larger
  • Supports 1 (or optionally 2) displays
  • An optional 1m (39") extension pole is available separately
  • Ships with a cover plate to hide ceiling mounting points
  • Features integrated cable management with dual cable exit points
  • Designed for flat ceilings with optional raked ceiling support

Enhanced viewing adjustment:
  • Donut style mounting with tension adjustment
  • Allows +/-20º pan and tilt with user adjustment

Detachable display head:
  • Quick-Attachment mechanism enables easy display mounting and replacement
  • Security screw provides enhanced theft resistance

Easy to Install:
  • Designed for user installation
  • Also supports displays with VESA configurations 200x300; 200x400; 300x200; 300x300; 300x300; 300x400; 400x200; 400x300 & 400x400 via an optional adaptor AC-AP-4040 (sold separately)
  • Shipped with installation guide and mounting hardware for cement and timber stud attachment

Durable Design:
  • Steel and aluminium construction with toughened matt powdercoat finish


Attachments

Telehook TH-1040-CTL Installation Manual (TH-1040-CTL_manual.pdf, 459 Kb) [Download]

Telehook TH-1040-CTL Product Brochure (TH-1040-CTL__brochure.pdf, 344 Kb) [Download]

Telehook TH-1040-CTL Technical Specs (TH-1040-CTL_Technical_specs.pdf, 82 Kb) [Download]

Specifications

  • Maximum Load: 25 kg (55lbs) per mount
  • Maximum Pole Capacity: 50 kg (110lbs) using TH-1040-CT-B2B configuration.
  • Mounting Compatibility: Supports VESA mounting hole configurations:

                              1.     75mm x 75mm

                              2.     100mm x 100mm

                              3.     200mm x 100mm

                              4.     200mm x 200mm

  • Pole Length:

                        Product Code                                             Adjustable Range

                        TH-1040-CTS             Short           400-900mm (15.75”- 35.43”)

                        TH-1040-CTL             Long            900-1800mm (35.43”- 70.87”)

  • Range of Display Management:

                         1.     +/-20 pan and tilt

                         2.     360° rotation around the pole

                         3.     360° portrait to landscape rotation

  • Warranty: 10 years limited
  • Internal Cable Management: Max. plug width 34mm (1.34”)
  • Finish: Textured Black Powder Coat

*Specifications are subject to change without notice.
