Description

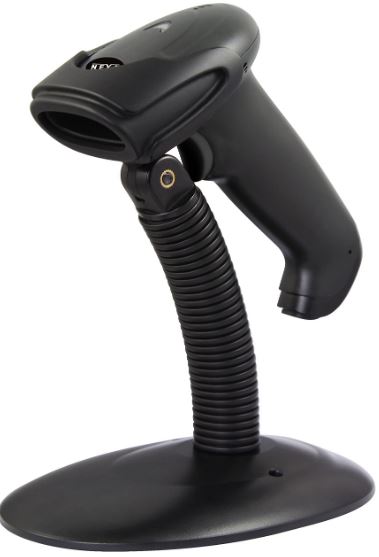

The Nexa ZED 1600 Laser Barcode Scanner is a high-performance, cost-effective solution for fast-paced retail, hospitality, and logistics environments. Engineered for rapid, reliable decoding of 1D barcodes, the ZED 1600 effortlessly reads even low-contrast or high-density codes, making it an ideal choice for busy checkout counters or stockrooms.
With an impressive 300 scans per second decode rate, 3 mil scan precision, and USB plug-and-play interface, this scanner delivers unmatched speed and convenience. The ergonomic pistol-grip design and lightweight ABS+PC construction ensure comfort during long shifts, while the rugged build supports 1.5m drop resistance, backed by a 3-year replacement warranty.
Whether hand-held or mounted in a stand, the ZED 1600 offers hands-free scanning flexibility and reliable performance in any scanning scenario.
Product Features
-
Fast scanning at 300 scans/second with 3 mil precision
-
Reads low contrast & high-density 1D barcodes
-
Plug-and-play USB-HID / Virtual COM interface
-
Durable housing with 1.5m drop resistance
-
Lightweight & ergonomic pistol grip design
-
Supports hands-free operation via stand (optional)
-
3-year replacement warranty included
Product Specifications
Scan Technology | Visible Laser Diode, 650nm |
Decode Rate | 300 scans per second |
Scan Precision | 3 mil |
Scan Width | 30mm at window, 220mm at 200mm distance |
Scan Depth of Field | 0 – 330mm (EAN-13, 90% contrast) |
Print Contrast | ≥10% |
Light Levels | Daylight, 3,000–80,000 LUX |
Decode Symbologies | EAN-8, EAN-13, UPC-A/E, Code 39/93/128, EAN128, Codabar, ITF, MSI |
Interface | USB-HID, USB Virtual COM |
Voltage | 5V DC |
Operating Current | 85mA (typical) |
Material | ABS+PC |
Dimensions | 175mm (L) x 73mm (W) x 102mm (H) |
Weight | 246g |
Operating Temp | 0°C to 50°C |
Storage Temp | -40°C to 70°C |
Humidity | 5% to 95% RH (non-condensing) |
Features
- Rugged
- High Density
- Black
