Description

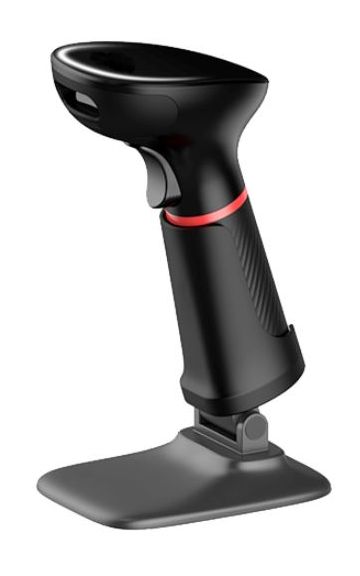

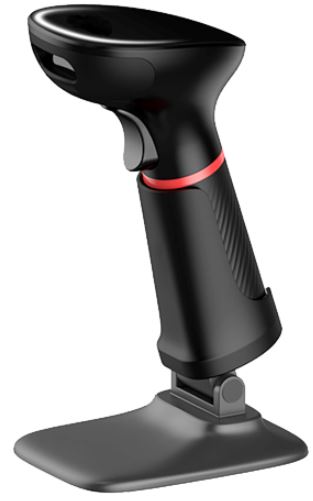

The Nexa ZED 2602 is the third-generation 2D barcode scanner from Nexa, engineered for high performance, speed, and versatility. Combining modern aesthetics with rugged durability, the ZED 2602 seamlessly integrates into retail, hospitality, warehousing, and commercial point-of-sale environments.
Equipped with a CMOS image sensor, it scans 1D and 2D barcodes at 60 frames per second, offering accurate reads even on damaged or poorly printed labels. Whether you prefer hand-held operation or need hands-free scanning, the ZED 2602 delivers with its included hands-free stand and automatic presentation mode.
With USB and Virtual COM Port interfaces, an ergonomic design, and Nexa’s 3-year replacement warranty, the ZED 2602 is a secure investment for any barcode scanning application.
Product Features
-
High-speed scanning at 60 fps
-
Reads all common 1D and 2D barcodes
-
Hands-free stand included for presentation mode
-
Stylish, compact design fits modern retail setups
-
USB plug-and-play interface with virtual COM support
-
Rugged build with ABS+TPU material
-
3-Year Replacement Warranty from Nexa
-
Wide decoding range of 60–360 mm (13mil @ PCS90%)
-
Supports manual trigger or automatic scan modes
-
Withstands operating temperatures from -10°C to 50°C
Product Specifications
Image Sensor | CMOS 640 × 480 pixels |
Scan Speed | 60 frames per second |
Resolution | ≥ 3 mil |
Scan Range | 60–360 mm (13 mil @ PCS90%) |
Decoding Capabilities | 1D & 2D: QR, Data Matrix, PDF417, Aztec, Code 128, EAN, etc. |
Scan Mode | Manual trigger / Automatic presentation |
Light Source | White LED (illumination), Red LED (aiming) |
Interfaces | USB, USB Virtual COM |
Indicators | Ring LED + Buzzer |
Material | ABS + TPU |
Operating Voltage | DC 3.6V–5.5V |
Current Consumption | Working: 142 mA, Standby: 42 mA |
Operating Temp. | -10°C to 50°C |
Storage Temp. | -20°C to 60°C |
Humidity | 5%–95% RH (non-condensing) |
Ambient Light Tolerance | Up to 100,000 Lux |
Drop Resistance | 1.5m |
Dimensions | 163 × 68 × 80 mm |
Weight | 185g |
Warranty | 3-Year Replacement |
Features
- Handsfree
- Handheld
- USB
